BEFORE INSTALLATION
INSTALLATION MOUNTING PLATE
INSTALLATION
Please read these instructions carefully before installation.
Check the size of the mounting holes

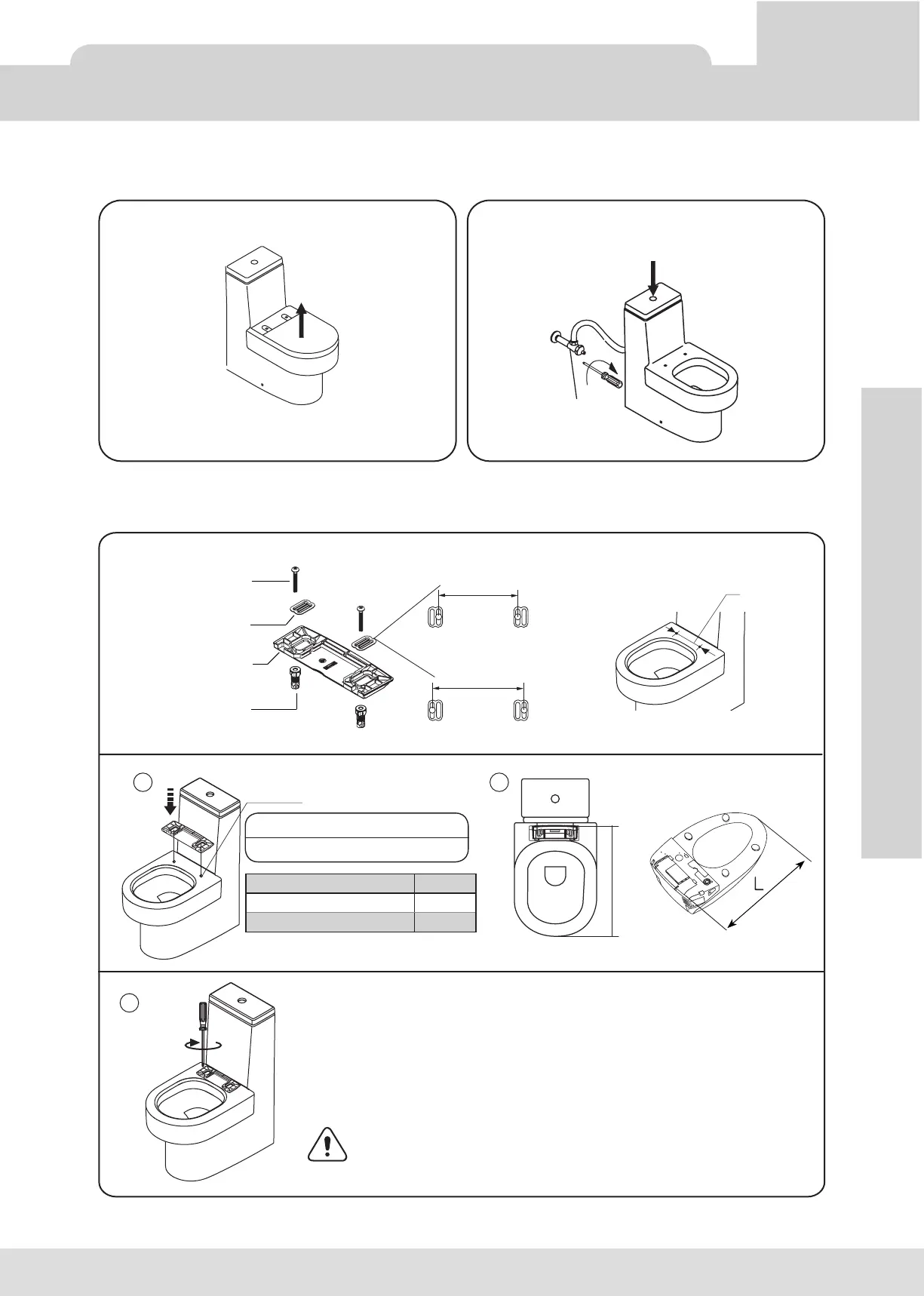

1. Place Mounting Plate over mounting holes
2. Adjust mounting plate so that the length (L) between the front
of the toilet bowl (A) and back of mounting hook (B) is at the
same distance.
3. Tighten mounting bolts with screwdriver.
until the mounting plate is securely fastened to the toilet.
DO NOT flip-over the MULTICLIN with connectting to the
power sources.
WARNING
Remove existing seat cover as showen below
Please have the seat removed as accordingly
to your toilet.
Turn off water shutoff valve completely
and flush to empty the toilet tank
Water shutoff valve.
Washer
Screw
Mounting circle
Docking plate
+ +
++
C=140mm
C
C=160mm
ØA
L
(A)
(B)
Diameter (mm)
Mounting hole 12mm to 17mm
1 2
Seat Type L
Premium RF 480mm
Premium SF 490mm
3
PRESS
