RocketFish RF-HTMT15 - STEP 5 - Wood Stud Installation - Continued; Drilling Pilot Holes for Studs

13
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTMT15

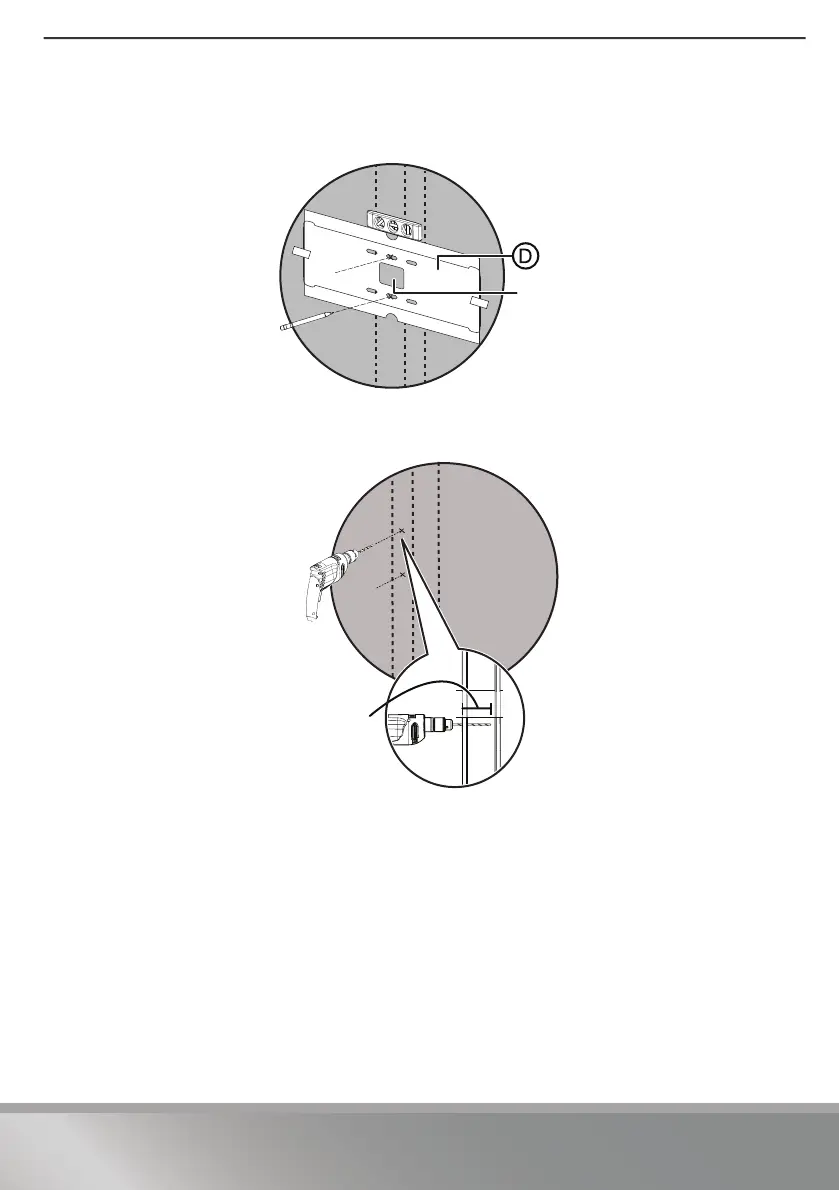

2 Align the wall plate template (D) at the height you determined in the previous step and
make sure that it is level. Tape the wall plate template to the wall, then use a pencil to
mark the lag bolt hole locations (2) on the stud center. Remove the wall plate template.
3 Drill pilot holes to a depth of 3 in. (75 mm) using a 7/32 in. (5.5 mm) diameter drill bit.
Center pencil mark
made in Step 4.
3 in.
(75 mm)
