14
Need help? Call 1-800-620-2790 (U.S. and Canada)

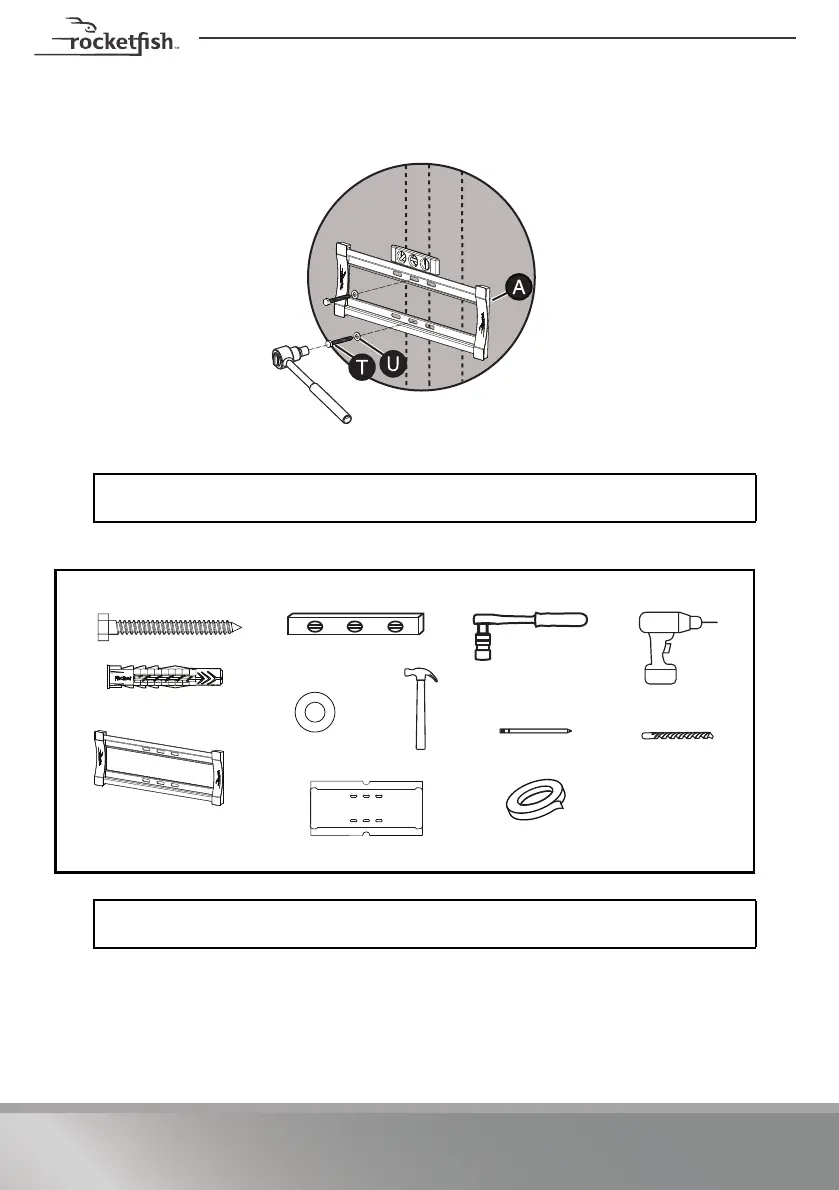

4 Align the wall plate (A) with the pilot holes, insert the lag bolts (U) through the lag
washers (T) and the holes in the wall plate, then tighten the lag bolts only until they are
firm against the wall plate.
STEP 5 - Option 2: Installing on a solid concrete or concrete block wall
CAUTION: Avoid potential injuries or property damage! DO NOT over-tighten the lag
bolts (U).
You’ll need
Note: Minimum solid concrete thickness: 8 in (203 mm). Minimum concrete block size:
8 x 8 x 16 in. (203 x 203 x 406 mm).
Lag bolt (U) (3)
Hammer
3/8” masonry
drill bit
Template (D)
Wall plate (A)
Lag bolt washer
(T) (3)
Concrete Anchor (V) (3)
1/2” socket
wrench
Level
Drill
Tape
Pencil
