21
RF-RBKIT

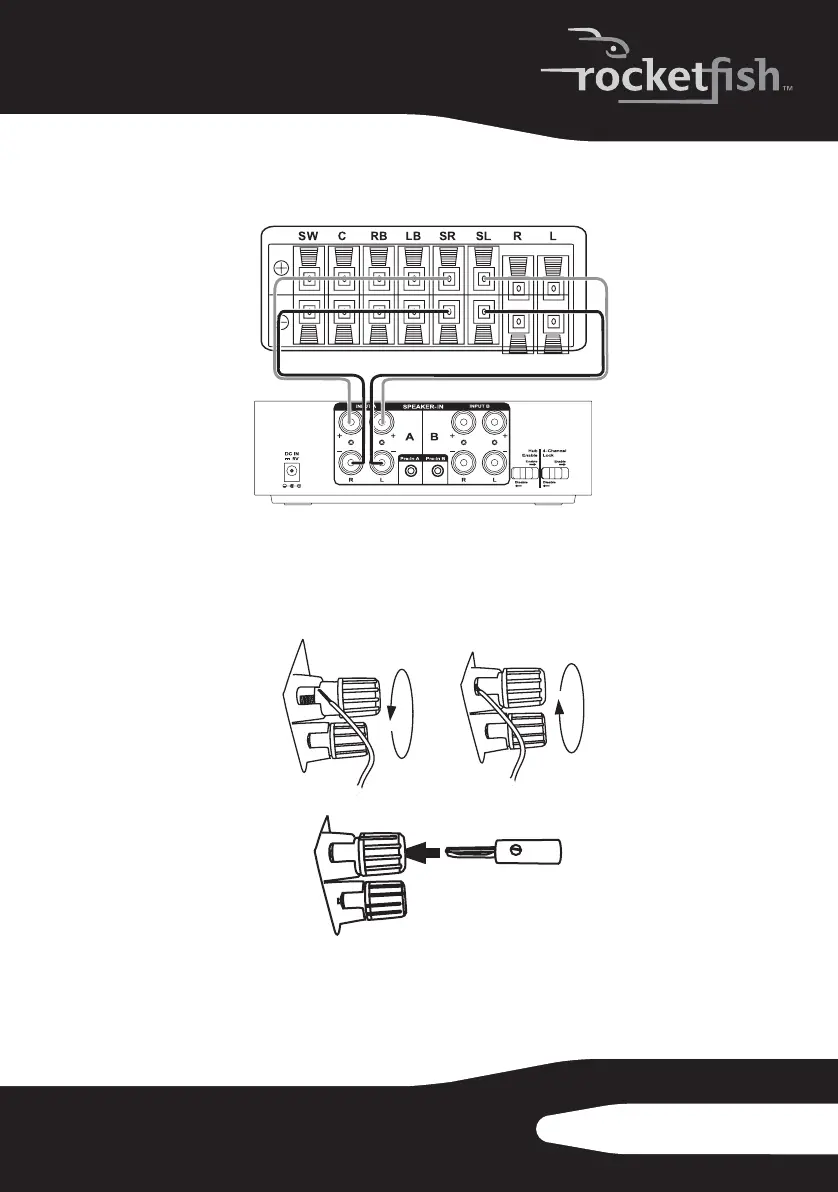

2 Repeat Step 1 to connect the left surround speaker terminals.
Tip: When using speaker wire with exposed tips, unscrew the terminal and insert the
exposed tips into the terminal, then firmly tighten the terminal. Verify that the
speaker wire is firmly secured by making sure that it doesn’t pull out of the terminal.
Notes:
Make sure the exposed tips of the speaker wires do not touch each other, and that
they are fully inserted into the terminals.
Back of AV receiver
Back of Rocketboost sender
Banana plug
RF-RBKIT_10-1157_MAN_V4.fm Page 21 Friday, October 8, 2010 12:53 PM
