Connecting the sender
Notes:
When connecting two stereo receiver channels with a sender, you need to connect
Input A and B at the rear panel of the sender.
Make sure that your amplifier is capable of supporting 5.1 or 7.1 surround mode.
Connecting the sender to an AV receiver (or surround
sound receiver)
Caution: Turn off your amplifier when connecting the units.
To connect the sender to an amplifier:
1 Connect the right surround speaker terminals of your amplifier to the
right speaker terminals of the sender by connecting the red speaker wire
to the Red (+) terminals, and the black speaker wire to the Black (-)
terminals.
2 Repeat Step 1 to connect the left surround speaker terminals.

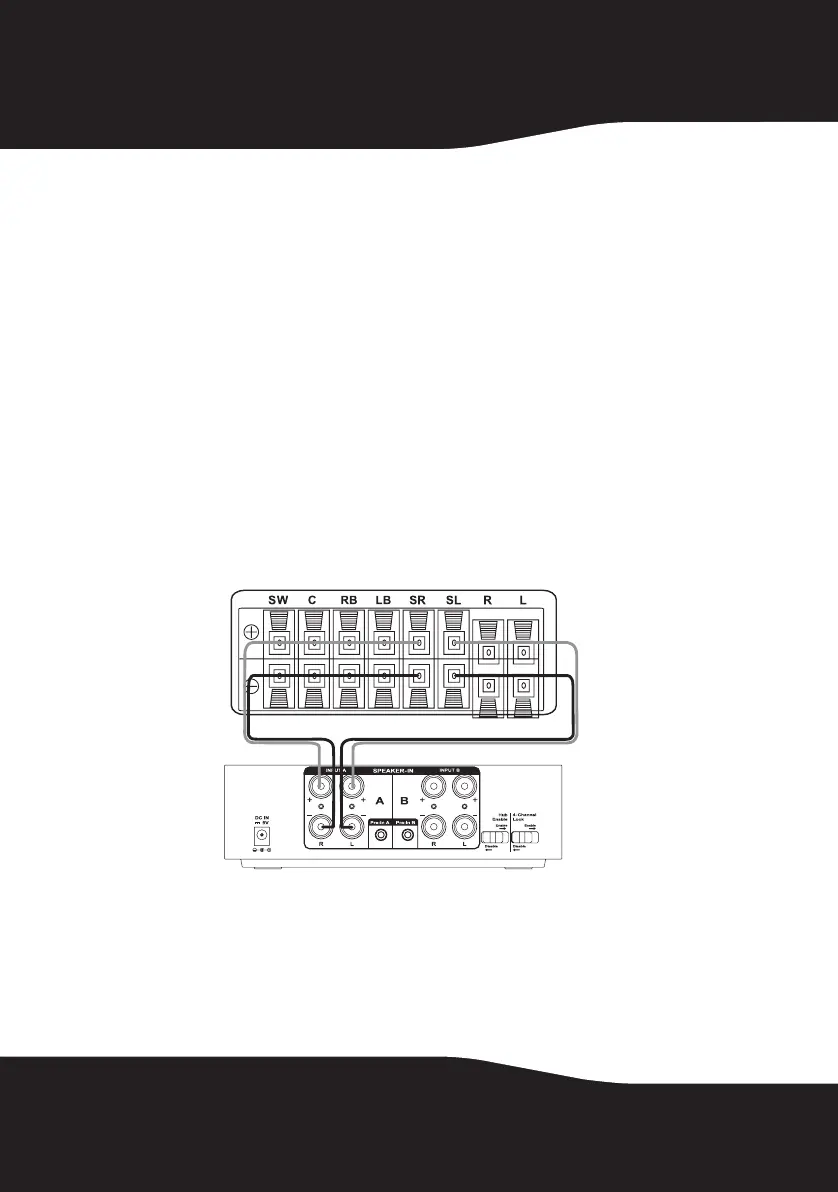

Back of AV receiver
Back of Rocketboost sender
