19RF-RBKIT

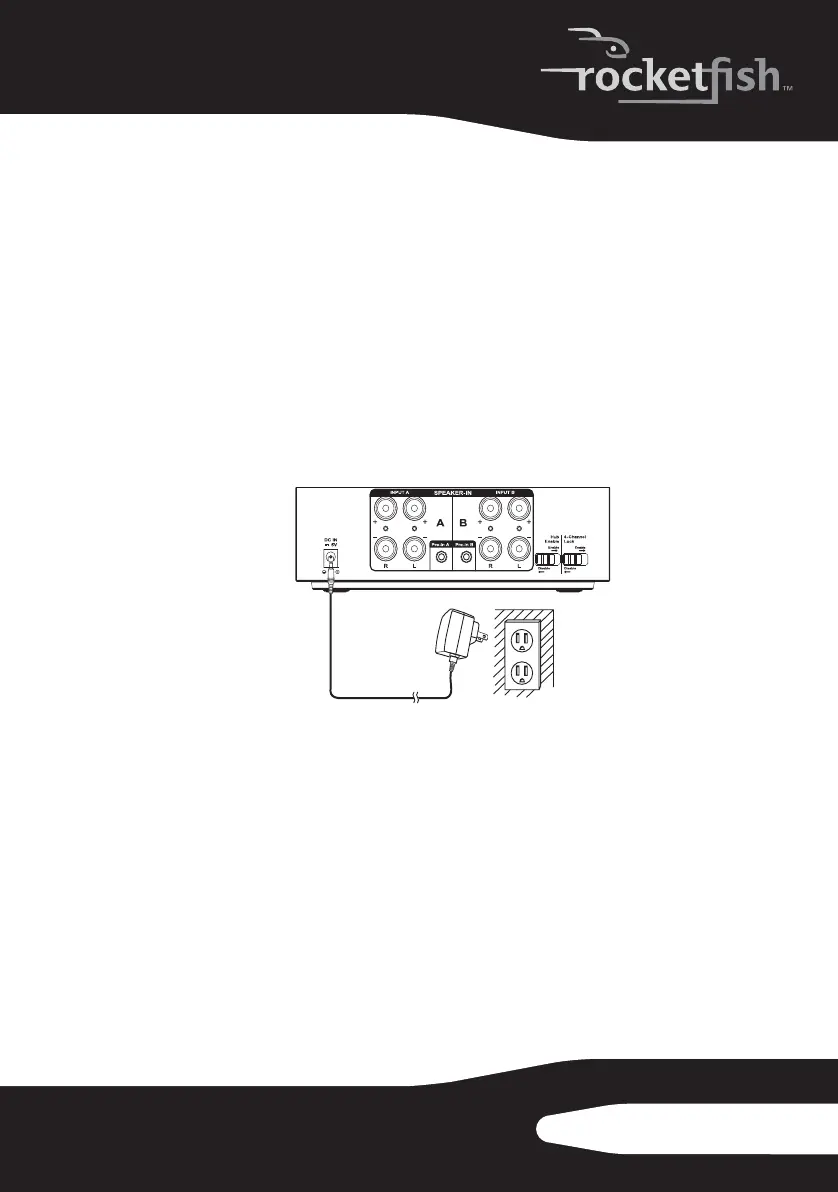

Connecting the sender to the AC adapter
Caution: Plug in the AC adapter only after your amplifier/external audio device is
connected to the sender.
To connect the sender to the AC adapter:
1 Plug the AC adapter into a wall power outlet or the SWITCHED AC outlet
of your amplifier when you connect an amplifier.
If you connect it to the SWITCHED AC outlet of your amplifier, each time
you turn your amplifier on or off, the power is also turned on or off to the
sender.
Note: The hub device must always be powered if you are operating other
transmitters and receivers in the network. In this case it should be connected to a
non-switched outlet, otherwise your network will not be operational. The Hub
functionality operates in Standby or full power mode.
Note: Make sure that the AC outlet on your amplifier is the switched type.
Connecting the receiver
To connect the receiver:
1 Connect the right surround speaker to the right speaker terminal of the
receiver, using the supplied three-foot speaker cable, by connecting the
red speaker cord to the red (+) terminals, and the black speaker cord to
the black (-) terminals.
RF-RBKIT_09-0473_MAN_ENG_V1.fm Page 19 Thursday, August 27, 2009 6:44 PM
