RF-RBUSB

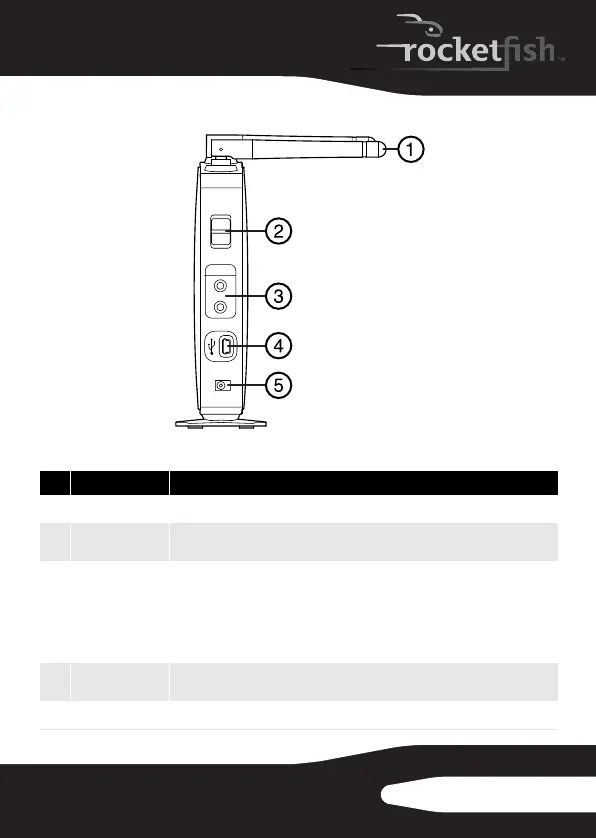

Wireless Sender/Receiver (back panel)
# Feature Description
1
External antenna Receives audio from wireless senders. Sends audio to receivers.
2
HUB STATUS
switch
Enables and disables hub mode operation. See “Establishing communication”
on page 21 for more information.
3
LINE IN/OUT jacks When used as a wireless sender, plug an audio source device into the LINE IN
jack.
When used as a wireless receiver, plug your amplifier or amplified speakers
into the LINE OUT jack. Note, this device operates as both a wireless sender
and wireless receiver, so you can use it simultaneously to send and receive
audio on your Rocketboost network.
4
USB jack When used as a wireless sender, connect to the USB jack of your computer to
send the audio from your computer to the Rocketboost wireless receivers.
5
DC IN jack Plug the AC power adapter into this jack.
