16
Using as a wireless sender
The wireless sender/receiver can be connected to an MP3 player,
computer, or other audio device to send music to other Rocketboost
wireless receivers.

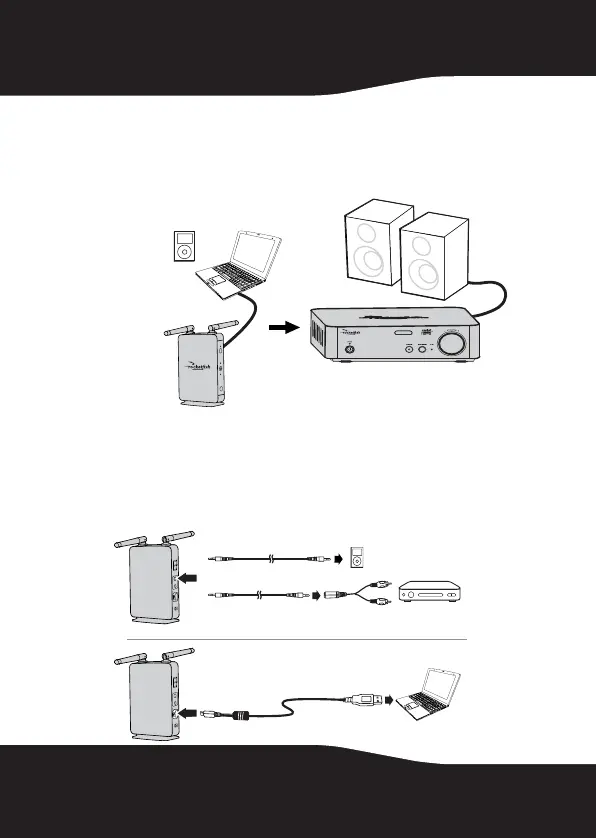

An example configuration is shown below.
Connect your audio source to the LINE In jack or USB jack on the rear of
the wireless sender/receiver, using the 3.5 mm audio cable or the USB
cable. If necessary, you can also use the 3.5 mm to RCA adapter, if your
audio device uses RCA-type line out connectors.
You can select either USB-In or LINE-In using the remote control,
depending on which audio input you are using.
Wireless
sender/receiver
Wireless receiver
or
Included 3.5 mm cable
Included USB cable
Included 3.5 mm cable and
3.5 mm to RCA adapter
To audio
output jack
To audio
output jack
RF-RBUSB_11-0204_MAN_V1.fm Page 16 Monday, May 2, 2011 8:04 AM
