Step 7 - Attach the arm assembly

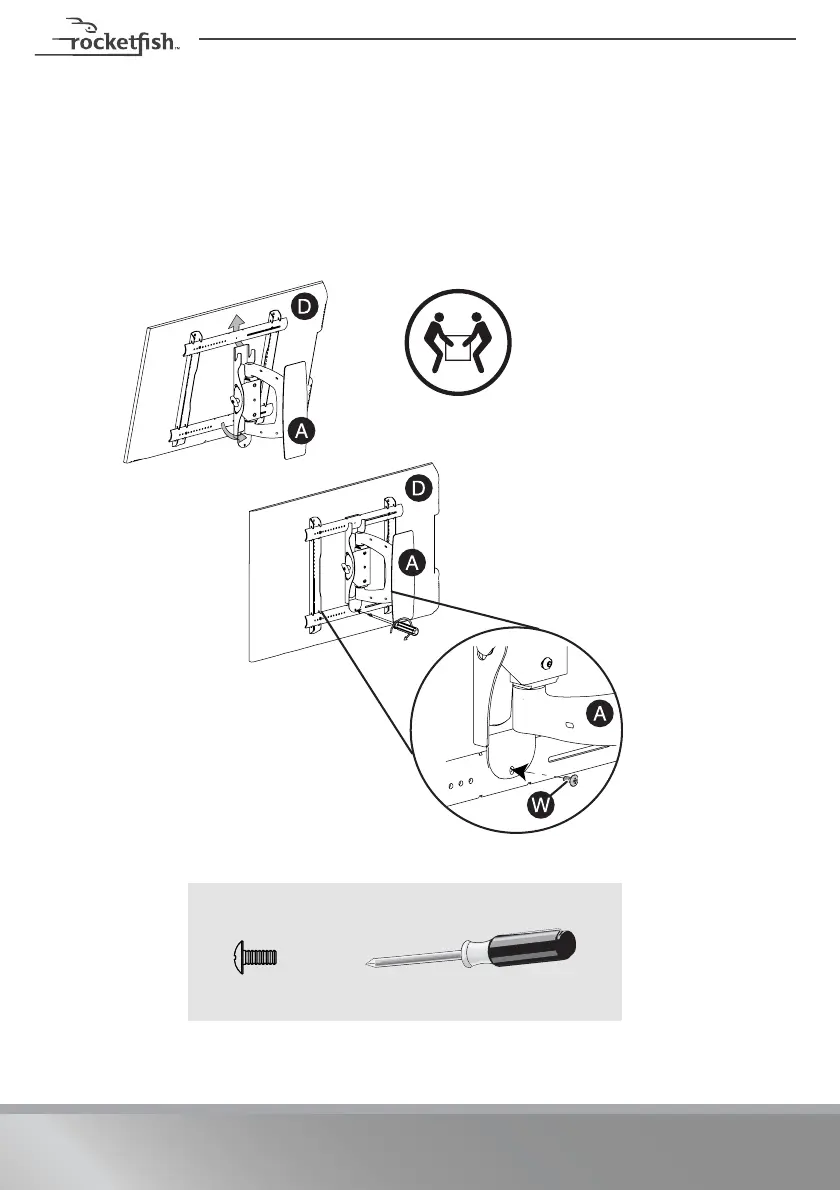

1 Hang the TV, with the brackets attached, on the upper lip of the arm assembly
(A), as shown below.
2 Lower the bottom edge of the of the horizontal TV bracket (D) to the bottom of
the arm assembly (A).
3 Secure the arm assembly (A) with the 8-32 x 3/8” cap screw (W) using a phillips
screw driver. Do not overtighten the screw.
You’ll need
HEAVY! You will need
assistance with this step.
W (1)
Phillips screwdriver
