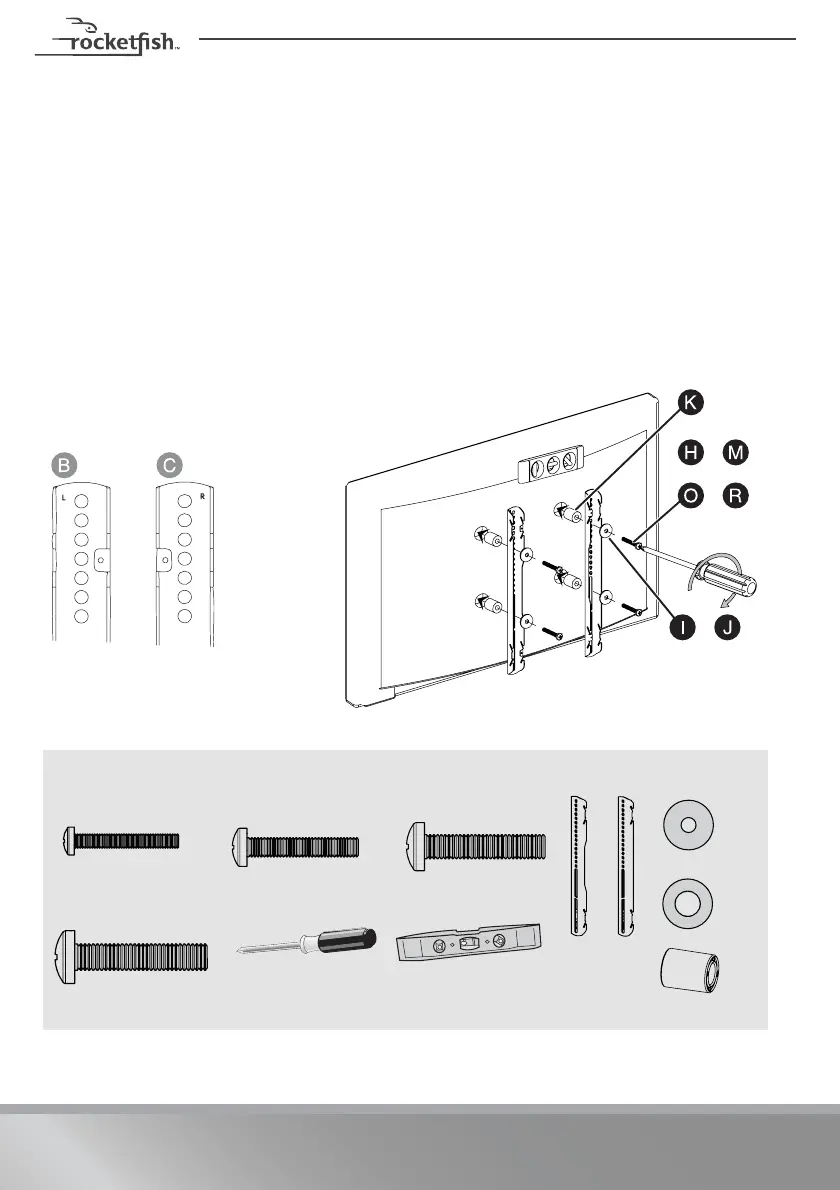

Step 3 - Install the vertical TV brackets - Option 2:
Installing for an irregular or obstructed back
1 Place the spacers (K) into the screw holes on the back of your TV.
2 Align the holes on the right vertical TV bracket (B) and left vertical TV bracket (C)
with the spacers on the back of your TV. The brackets are marked “R” for the right
bracket and “L” for the left bracket. Make sure the brackets are level.
3 Place the M4/M5 washers (I) or M6/M8 washers (J) over the holes in the TV
brackets that align with the screw holes on the back of your TV, then insert the
M4 screws (H), M5 screws (M), M6 screws (O), or M8 screws (R) through the
washers.
4 Tighten the screws until they are snug against the TV bracket. Do not over
tighten.
You’ll need
OR
OR
OR
I (4)
J (4)
H (4)
M (4)
R (4)
Phillips screwdriver
or
or
or
Screws
K (4)
O (4)
Level
TV brackets
(B and C)
or
