STEP 2 - Select screws, washers, and spacers
1 Select the hardware for your TV (screws, washers, and spacers). A limited number of
TVs come with mounting hardware included. (If there are screws that came with the
TV, they are almost always in the holes on the back of the TV.) If you don't know the
correct length of the mounting screws your TV requires, test various sizes by hand
threading the screws.
Select one of the following types of screws:
Select M4 washers (G) or M6/M8 washers (H).
For an irregular or obstructed TV back, use the 22 mm spacers (I) or 2.5 mm
spacers (J).
CAUTION: To avoid potential personal injuries and property damage, make sure
that there are adequate threads to secure the brackets to your TV. If you encounter
resistance, stop immediately and contact customer service. Use the shortest screw
and spacer combination to accommodate your TV. Using hardware that is too long
may damage your TV. However, using a screw that is too short may cause your TV to fall from
the mount.
2 Remove the screws.
3 For a flat back TV, go to “STEP 3 - Option 1: Attaching the mounting hardware to
TVs with a flat back” on page 7.
-OR-
For an obstructed back, go to “STEP 3 - Option 2: Attaching the mounting
hardware to TVs with irregular or obstructed backs” on page 8.
M4 × 12 mm screws (E) M8 × 20 mm screws (N)
M4 × 35 mm screws (F) M8 × 25 mm screws (O)
M6 × 12 mm screws (K) M8 × 35 mm screws (P)
M6 × 35 mm screws (L) M8 × 45 mm screws (Q)
M8 × 16 mm screws (M) M8 × 50 mm screws (R)

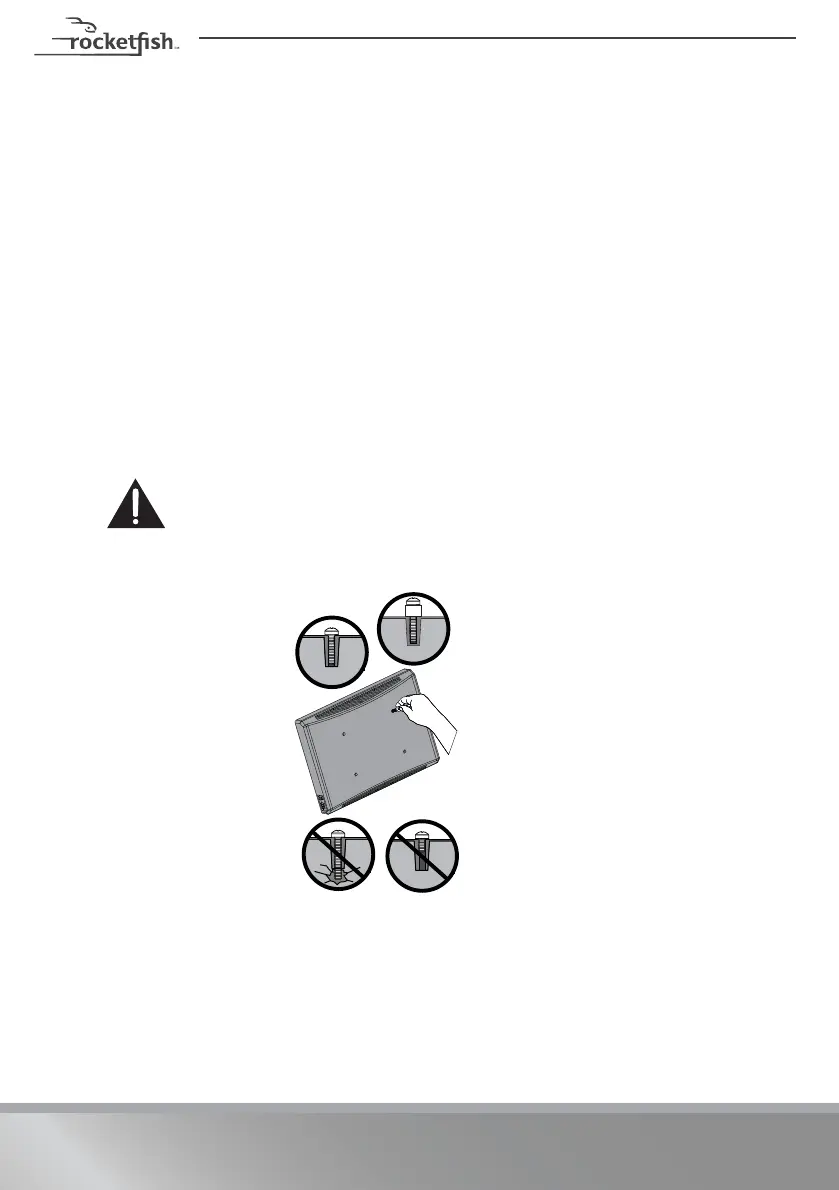

Screw is
too long
Screw fits
correctly
Screw is
too short
