STEP 3 - Option 2: Attaching the mounting hardware to
TVs with irregular or obstructed backs

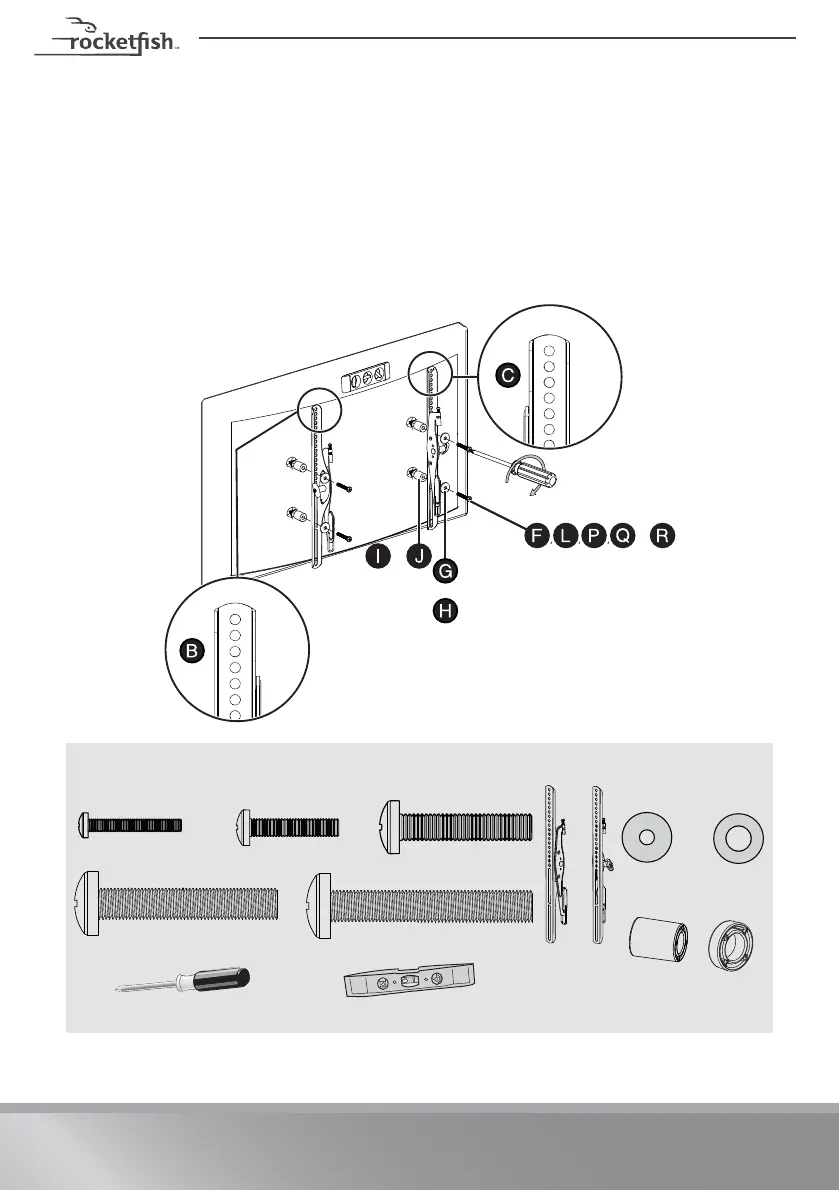

1 Align the TV brackets (B and C) with the screw holes on the back of the TV.
2 Place spacers (I or J) behind the TV brackets and the washers (G or H) over the
holes in the TV bracket, then insert the screws (F, L, P, Q or R) through the
washers, TV bracket, and spacers. Make sure the brackets are level.
3 Tighten the screws until they are snug against the TV bracket. Do not over
tighten.
You’ll need
G (4)
H (4)
F (4)
L (4)
P (4)
Phillips screwdriver
or
or
or
Screws
Washers
I (4)
Level
(B and C)
TV Brackets
Q (4)
or
R (4)
J (4)
