RocketFish RF-WHTIB - Page 4

.2. .3.

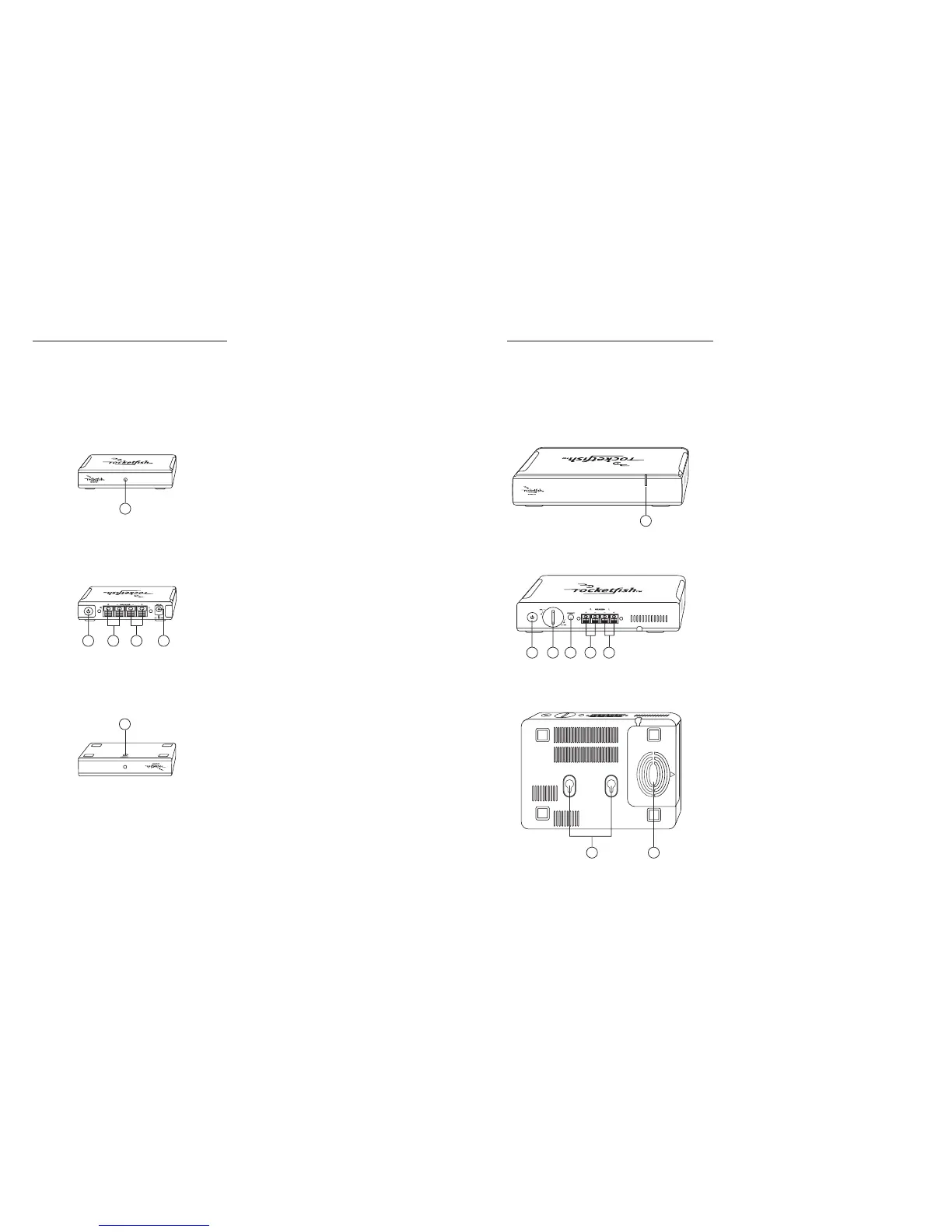

Functional Overview (Sender)
The Sender transmits audio signals over a 2.4GHz
radio frequency carrier to the Receiver.
Functional Overview (Receiver)
The Receiver receives 2.4GHz wireless Audio
signals from the Sender.
1
Front View:
Rear View:
Bottom View:
Front View:
Rear View:
Bottom View:
6
2 3
45
23 645
1. LED Indicator
2. Power On/Off Button
3. Right Speaker Input Terminals
4. Left Speaker Input Terminals
5. DC IN Jack
6. Connect Button for Pairing
1
87
1. LED Indicator
2. Power On/Off Button
3. Volume Control Dial
4. Connect Button for Pairing
5. Right Surround Speaker Output Terminals
6. Left Surround Speaker Output Terminals
7. Hanging Holes for Wall-Mounting
8. Cable Storage Compartment
