15
Connections....continued.....

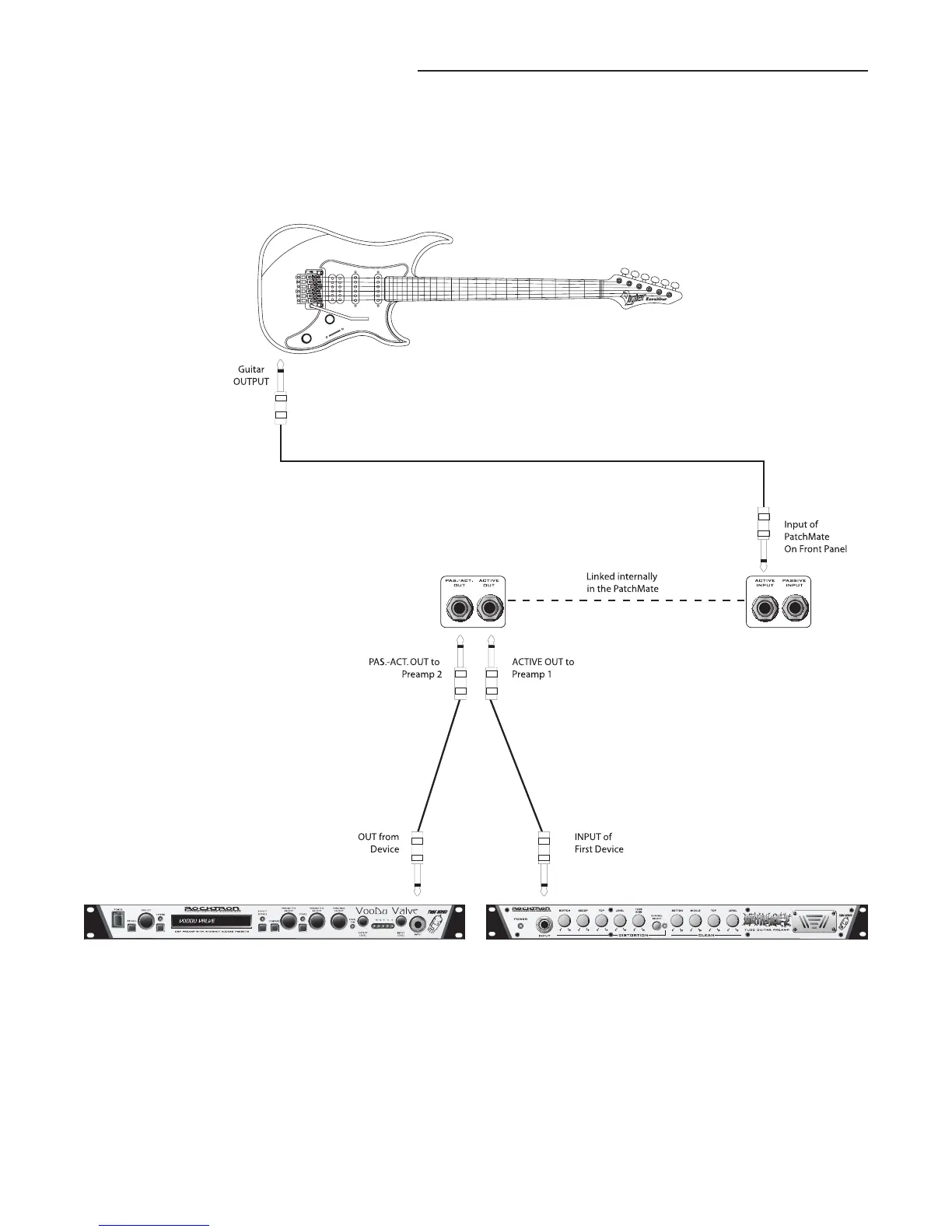

This connection diagram shows one way to use the PatchMates buffered connection to connect to two
different preamps.
