Connections....continued.....

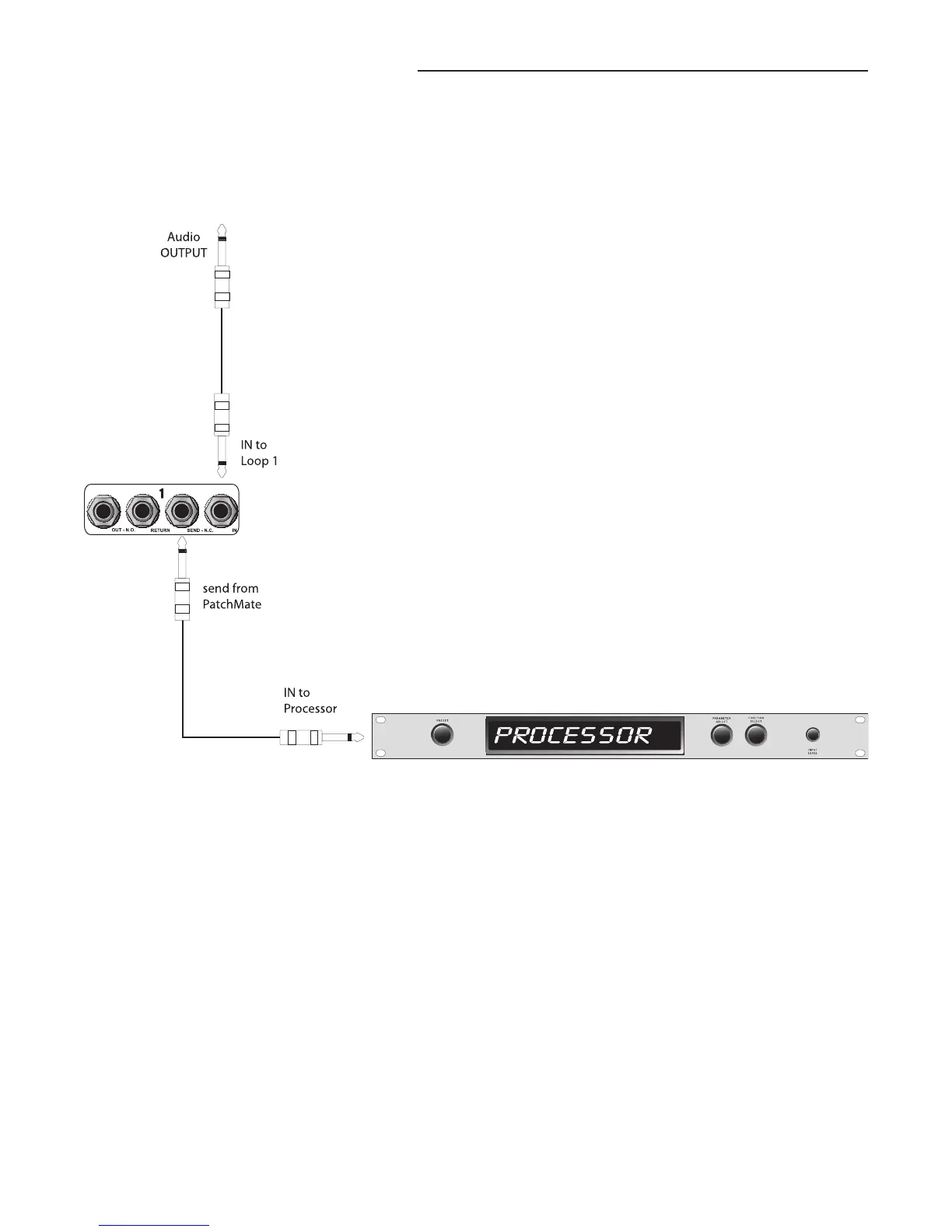

This connection diagram shows one way to connect the PatchMate to "MUTE" an effects processor
where parallel effect routings are being implemented.
