17
Connections....continued.....

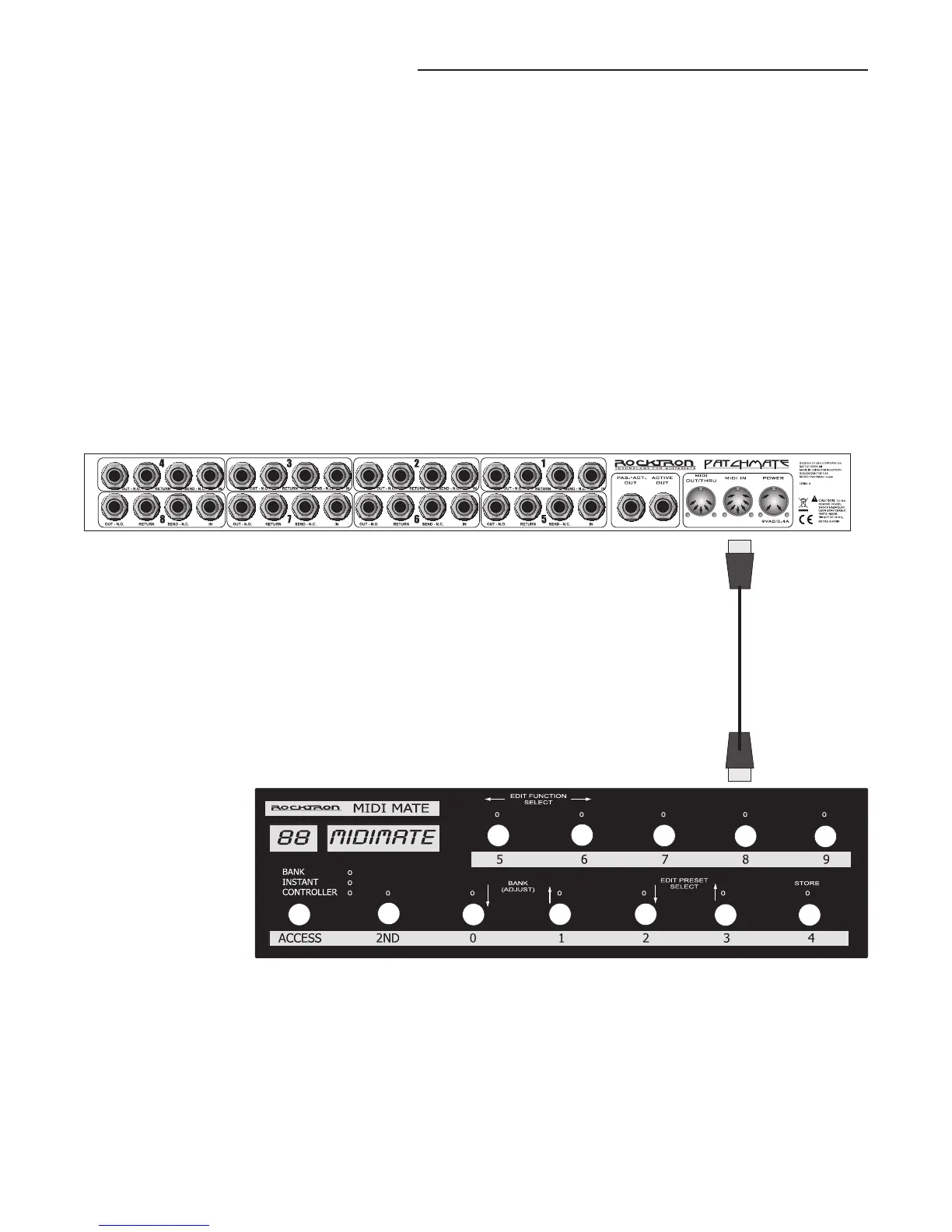

This connection diagram shows how to connect the PatchMate to a MIDI Controller such as the
Rocktron MIDI Mate (use similar connections for the Rocktron All Access, All Access LTD and MIDI
Xchange.
Note: Internal PHANTOM POWER is provided by the PatchMate Loop 8 via the MIDI IN connector
pins 6 & 7 and will power your Rocktron MIDI Controller eliminating the need to have a power adatper
plugged directly into the MIDI Controller.
The power provide is 9VAC. To use this feature you will need a Rocktron RMM900 MIDI Cable (sold
separately). See the Rocktron website - www.rocktron.com for more information.
The PHANTOM POWER feature is provided exclusive to support all ROCKTRON MIDI CONTROL
-
LER products. Please refer to your owners manual before attempting to use this option with a MIDI
CONTROLLER other than a Rocktron product. Rocktron can not be held responsible for any damages
arising from improper use or connections.
