FOOTSWITCH jack:
This jack accepts a 1/4” mono cable connected to a single-function,
latching footswitch for channel switching functions.
OUTPUT jack:
This standard 1/4”mono jack provides the output of the WIDOW-
MAKER, which can be fed to an amplier or other effects.
POWER jack:
This 2.5mm pin jack accepts power from the 9VAC power adapter
supplied with the unit.

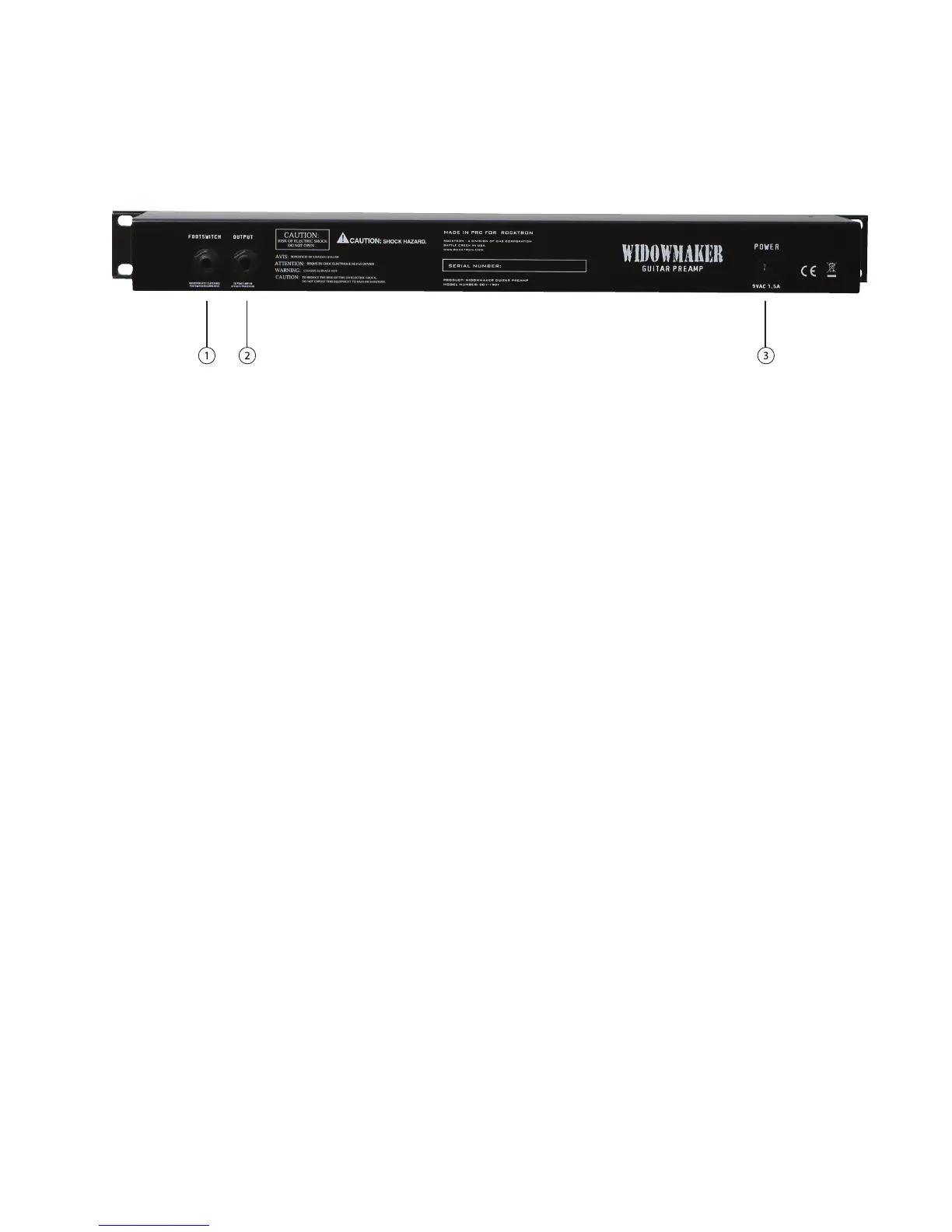

Back Panel
1
2
3
