Rockwell Automation 1768-L43 Installation Instructions

CompactLogix Controllers 11
Publication
1768-IN004D-EN-P - December 2009

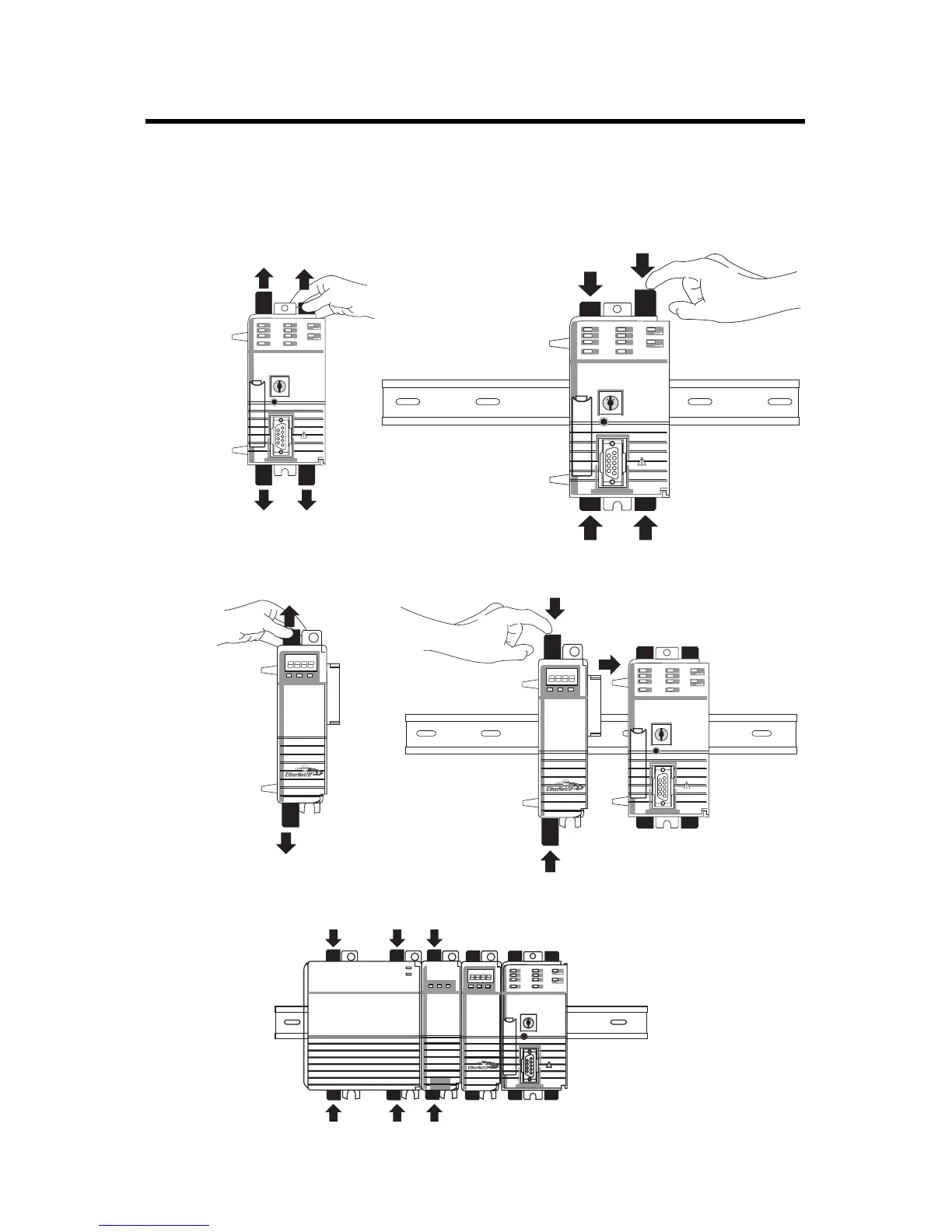

Mount 1768 Components
Follow these steps to mount the controller.
1. Mount the controller on the DIN rail.
2. Mount additional 1768 modules to the left of the controller.
3. Mount the 1768 power supply and other 1768 modules.
31595-M
a.
31596 -M
b.
31597-M
31598 -M
b.
c.
c.
a.
a.
31599-M
