Rockwell Automation Publication 440R-UM013F-EN-P - July 2021 47
Chapter 9 Application and Wiring Examples

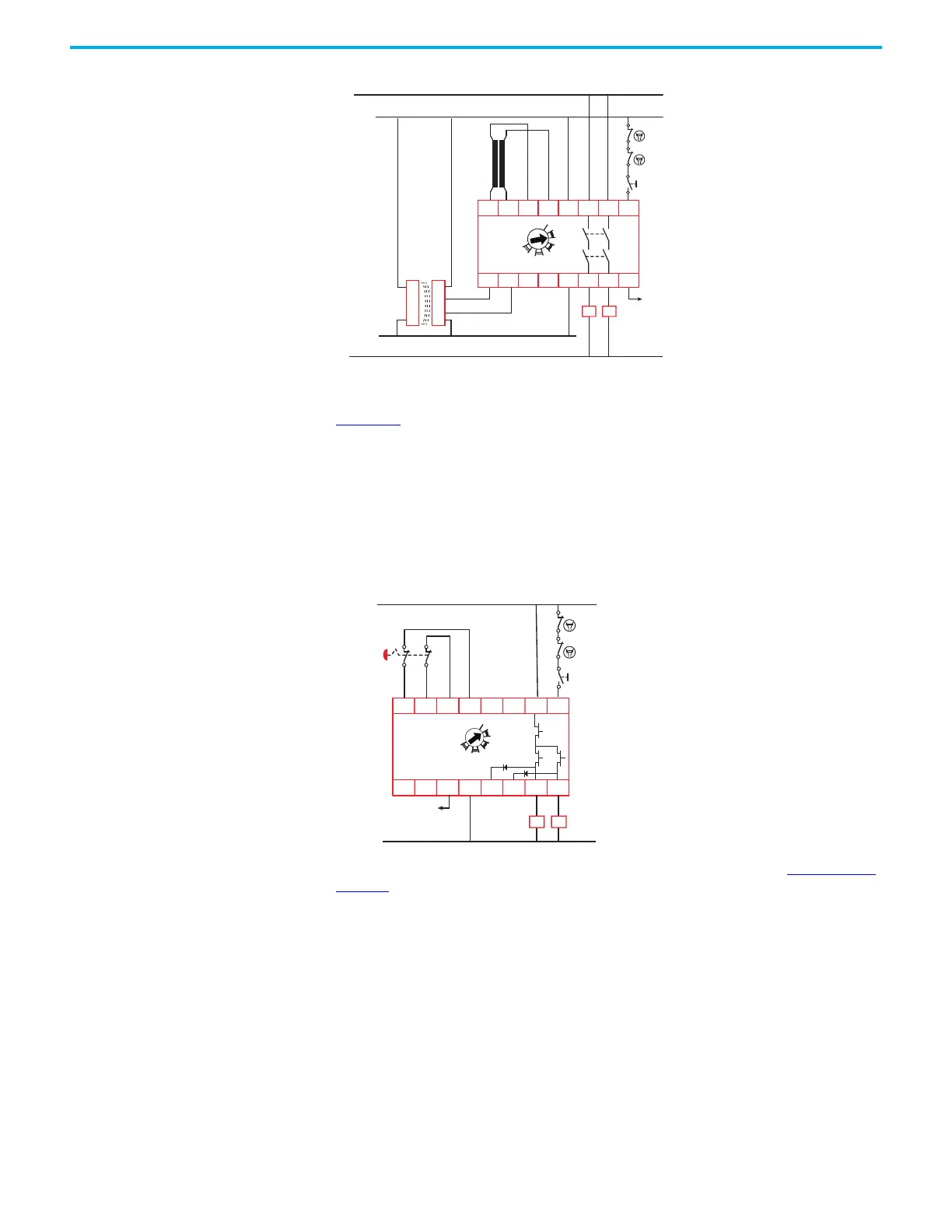

Figure 45 - With a Safety Mat and Device with OSSD Outputs, Monitored Manual Reset, AC Loads
DIS Safety Relay
(Cat.No.440R-D22S2)
Figure 46 shows the DIS safety relay with only one device. The DIS and DI
safety relays can monitor one device by configuring the relay for OR logic. The
DIS safety relay logic setting is 1: (IN1 OR IN2) OR L12 with monitored manual
reset. The second input (terminals S32 and S42) requires no connection. With
solid-state outputs, the contactors K1 and K2 must be 24V DC powered coils.
The DIS safety relay verifies that contactors K1 and K2 are off by monitoring
the mechanically linked normally closed contacts in the S34 circuit. When the
DIS safety relay is off, the auxiliary signal at terminal Y32 turns on and reports
the status to a PLC.
Figure 46 - Single Input, Monitored Reset
The DIS safety relay monitors two devices with OSSD outputs in Figure 47 on
page 48 The DIS safety relay logic setting is 6: (IN1 AND IN2) OR L12 with
automatic reset. The output terminals 34 and 44 are designed to tolerate higher
capacitance loads (but lower resistive load) as compared to terminals 14 and 24.
A1 S11 S21 S12S22
S32 L11 Y32L12
13
14S42
23
24
S34
A2
DI
440R-D22R2
0
1
2
3
4
56
7
8
K1
24V DC
24V Com
K2
K1 K2
L1
120/230V AC
N
OSSD1
OSSD2
LOGIC
Reset
To PLC
0
1
2
3
4
56
7
8
DIS
440R-D22S2
S32 A1
Y32
S21S11 S22 S12 S34
S42
L12 L11
34A2 44
14 24
K1
24V DC
24V Com
K2
K1 K2
LOGIC
Reset
To PLC
