Chapter 1 Install a 1756 EtherNet/IP Communication Module

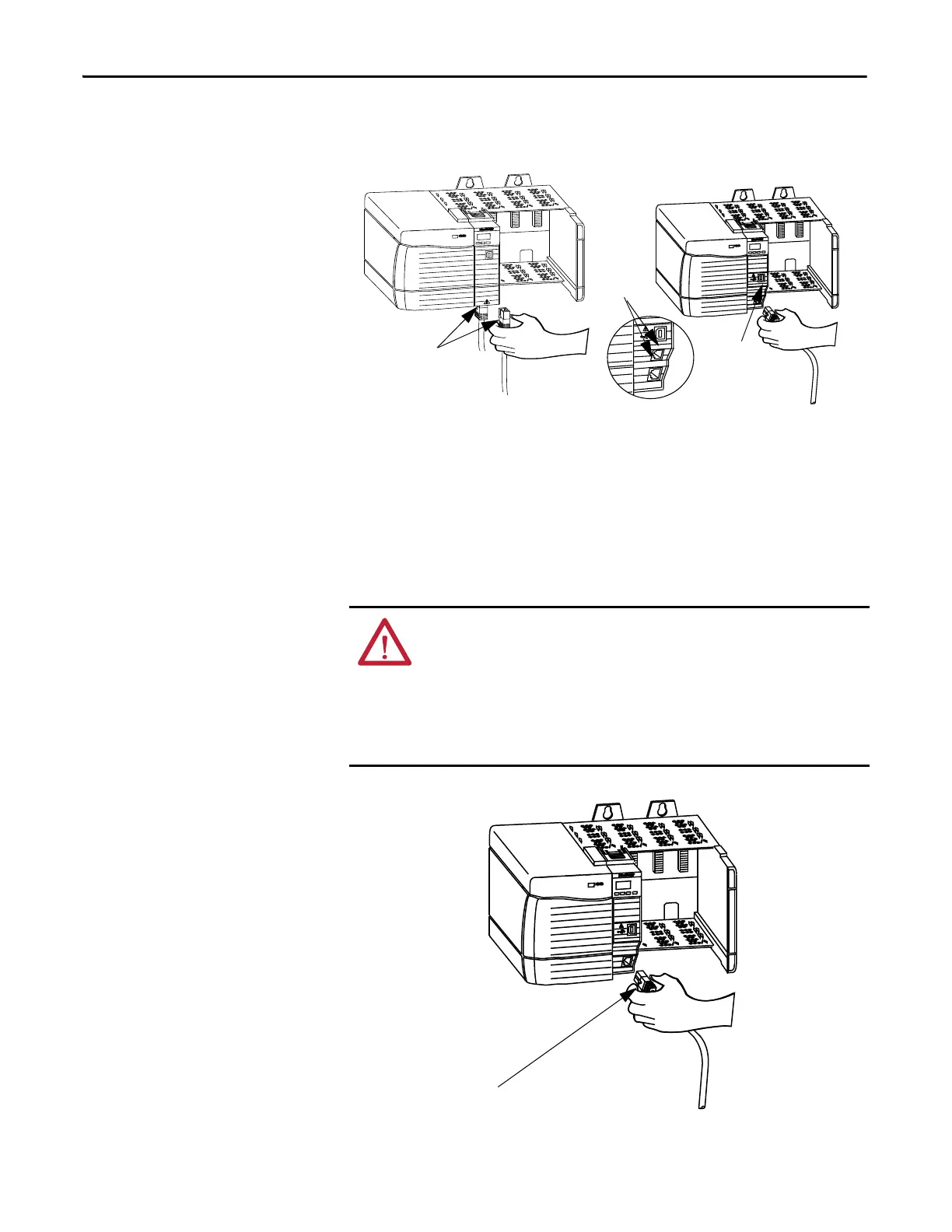

1. Attach the cable with the RJ45 connector to the Ethernet port on the
module as shown.
2. Attach the other end of the cable to the devices in your network.
Connect the Module to an EtherNet/IP Network Via a Fiber Connector
Attach the LC2 multimode fiber cable to the Ethernet port on the bottom of the
module as shown.
ATTENTION: Do not look directly into the optical port. When you view the
optical port under certain conditions, can expose the eye to hazard. When
viewed under some conditions, the optical port can expose the eye beyond the
maximum permissible exposure recommendations.
Class 1 laser product. Laser radiation is present when the system is open and
interlocks bypassed. Only trained and qualified personnel are allowed to install,
replace, or service this equipment.
Dual-port Module
(Single port not shown)
32457
Dual-port
Module
Single-port
Module
