1768 EtherNet/IP Module Status Indicators
The 1768 EtherNet/IP communication modules support these status indicators.

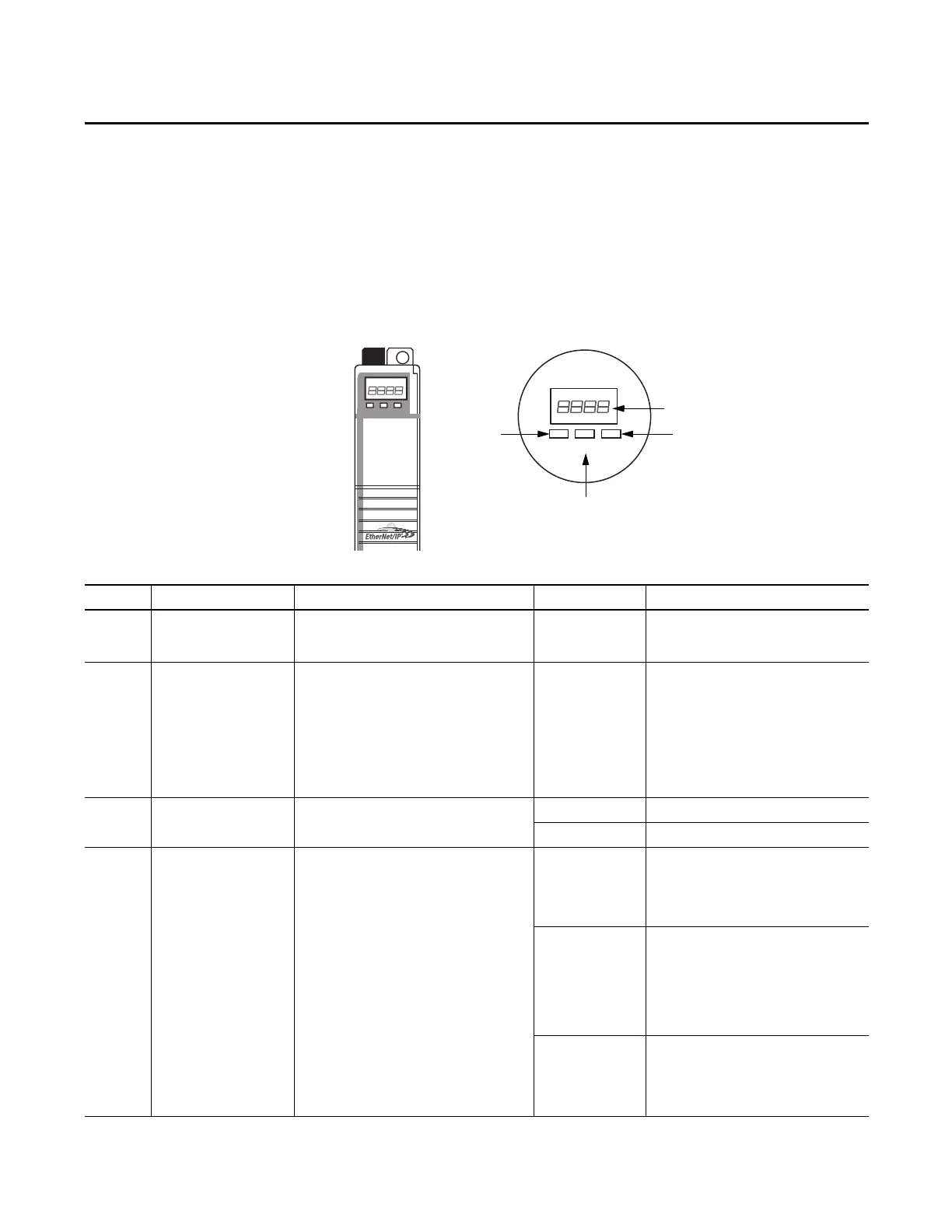

This graphic shows the front of the module for the listed modules.
Table 3 - 1768 Module Status Indicators
Number Status Indicator Description Status State
1 Module Status Display Alphanumeric display that scrolls messages. For
example, when a module is operating normally, the
display scrolls the IP address for the module.
N/A N/A
2 Link Status (LINK) Indicates the module’s current state with respect to
transmitting data on the EtherNet/IP network.
Off One of these conditions exists:
• The module is not powered.
– Verify there is chassis power.
– Verify that the module is completely
inserted into the chassis and backplane.
– Make sure the module has been
configured.
• No link exists on the port.
Flashing green Activity exists on the port.
Green Activity exists on the port.
3 OK Status (OK) Indicates the module’s current state. For example,
this status indicator indicates if the module is
executing power-up testing, in the process of a
firmware update or operating normally.
Off The module is not powered.
• Verify there is chassis power.
• Verify that the module is completely inserted
into the chassis and backplane.
Flashing green The module is not configured. The Module Status
display scrolls: BOOTP or
DHCP<Mac_address_of_module>
For example: BOOTP 00:0b:db:14:55:35
Configure the module.
Green The module is operating correctly. The Module
Status display scrolls: OK
<IP_address_of_this_module>
For example: OK 10.88.60.160
