Chapter 1 Compact 5000 EtherNet/IP Adapter Features

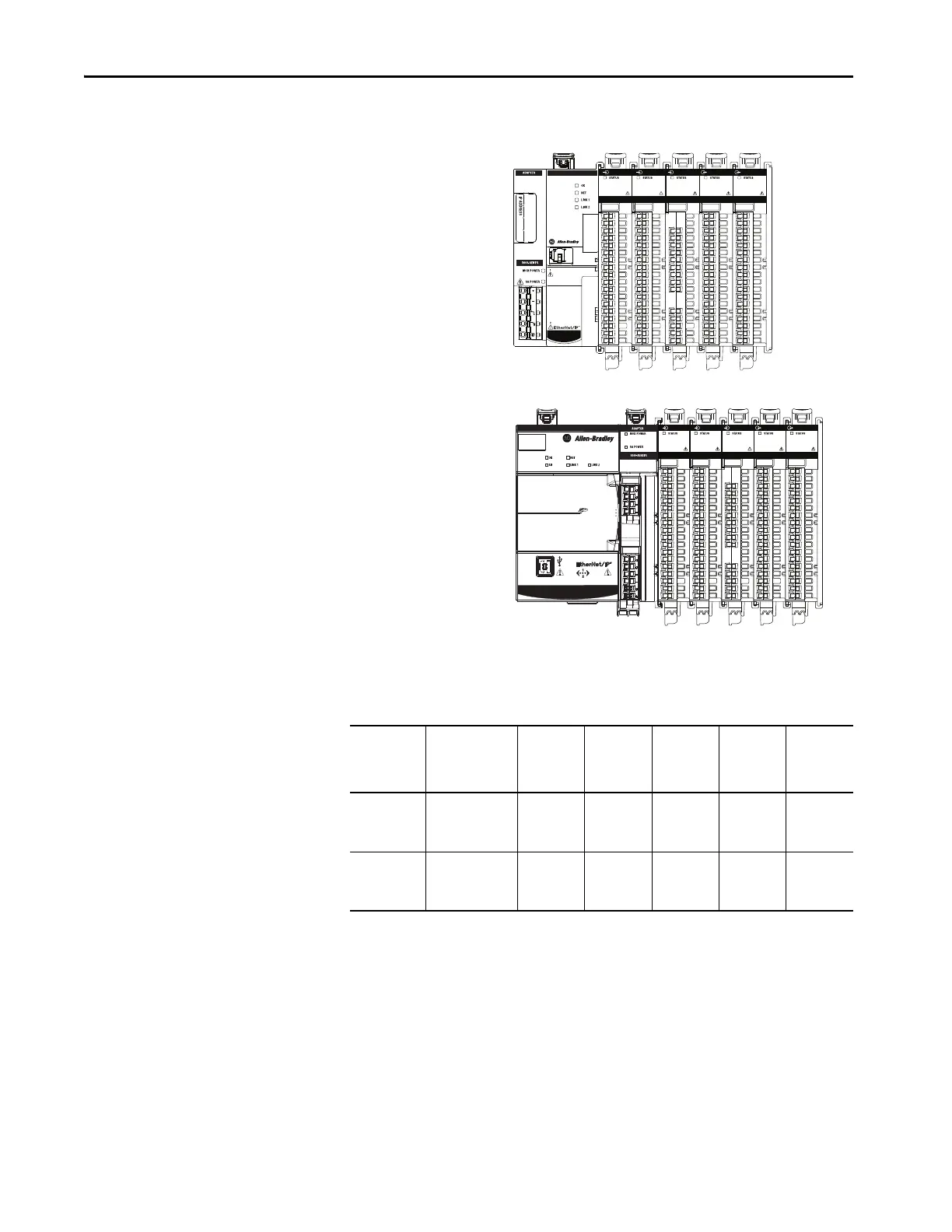

Figure 1 - Compact 5000 I/O Modules
EtherNet Features
The adapters support these EtherNet/IP features.
Compact 5000™ I/O
MOD PowerSA Power
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
DC INPUT
5069-IB6F-3W
ANALOG OUTPUT
5069-OF4
5069-AEN2TR Adapter with
5069 Compact I/O Modules
Compact 5000™ I/O
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
DC INPUT
5069-IB6F-3W
ANALOG OUTPUT
5069-OF4
5069-AENTR Adapter with
5069 Compact I/O™ Modules
Adapter Communication
Rate
Linear
Network
DLR
Protocol
Ability to
Operate as
a DLR
Supervisor
PRP
Protocol
Protected
Mode
5069-AENTR 10 Mbps
100 Mbps
1 Gbps
Yes Yes Yes No Imp li ci t
5069-AEN2TR 10 Mbps
100 Mbps
1 Gbps
Yes Yes Yes No No t
Supported
