254 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018

Chapter 9 Use I/O Modules with CompactLogix 5370 L3 Controllers

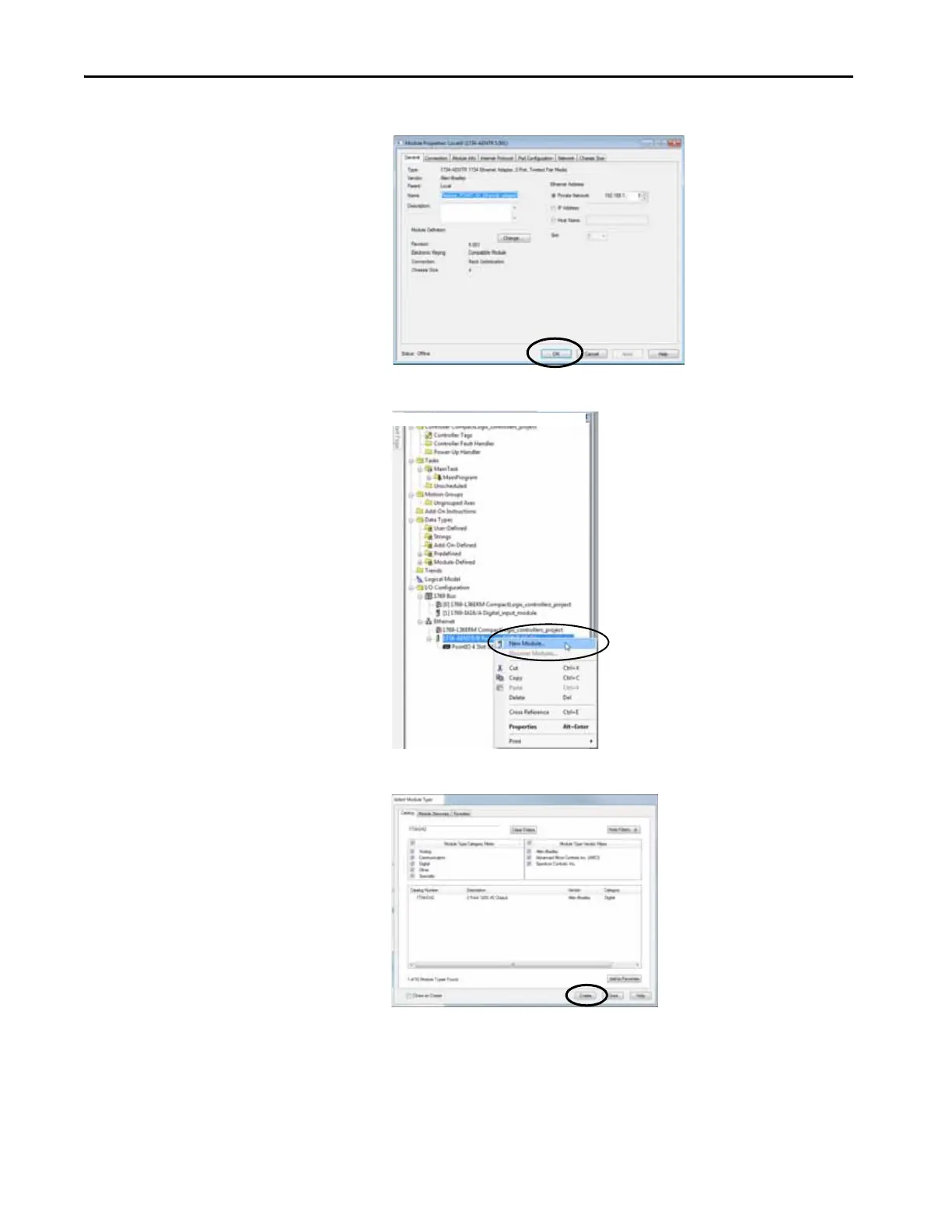

3. Configure the new Ethernet adapter as necessary and click OK.

4. Right-click the new adapter and choose New Module.

5. Select the desired I/O module and click Create.

The New Module dialog box appears.
