34 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018
Chapter 2 Install the CompactLogix 5370 L1 Controller

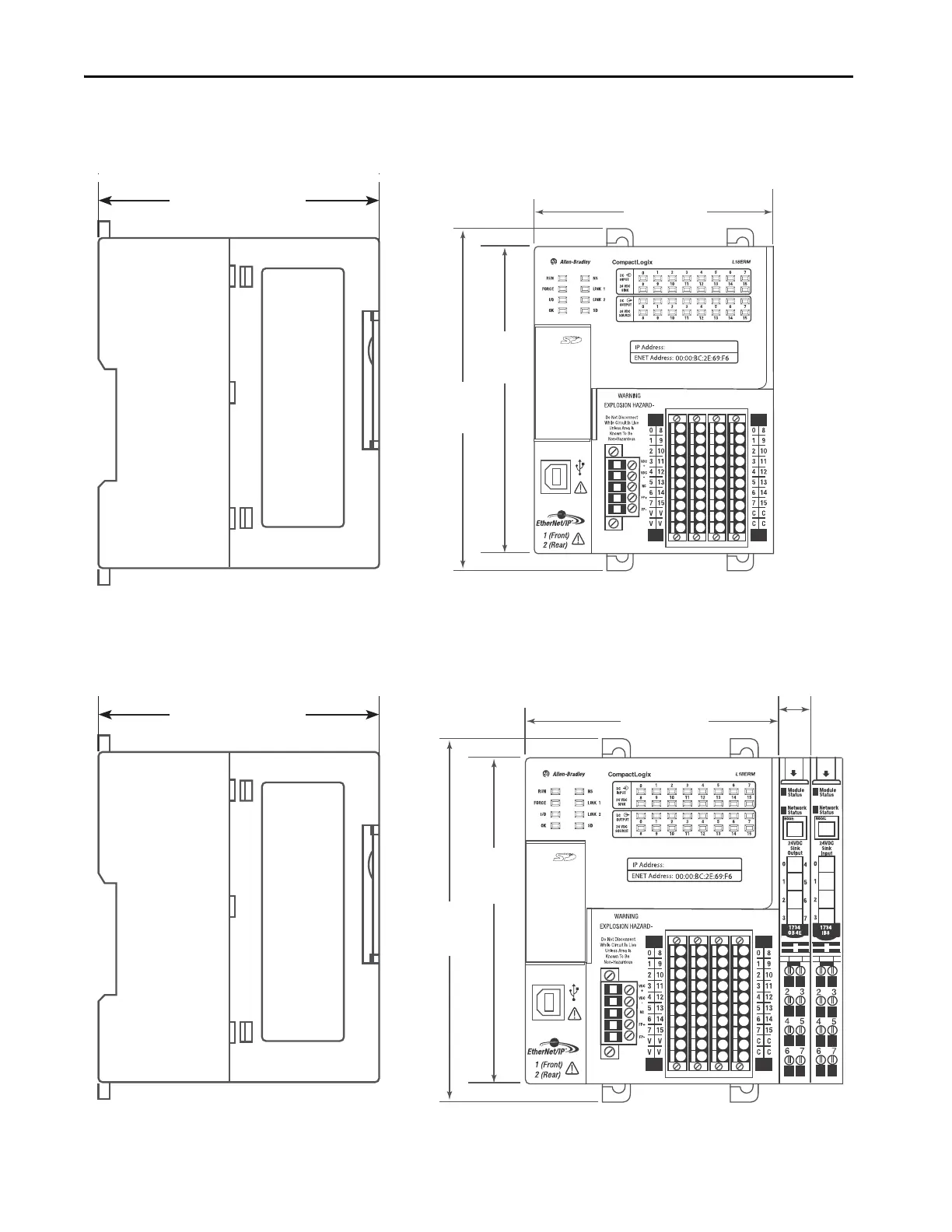

System Dimensions
This graphic shows the system dimensions.
This graphic shows the system dimensions with Expansion I/O modules
installed.
144.00 mm
(5.67 in.)
130.00 mm
(5.11 in.)
100.00 mm
(3.94 in.)
105 mm
(4.13 in.)
144.00 mm
(5.67 in.)
130.00 mm
(5.11 in.)
100.00 mm
(3.94 in.)
12.00 mm
(0.47 in.)
105 mm
(4.13 in.)
