Rockwell Automation Allen-Bradley Guardmaster 442G MABH Series

10 Rockwell Automation Publication 442G-UM002B-EN-P - August 2021
Chapter 1 Product Overview

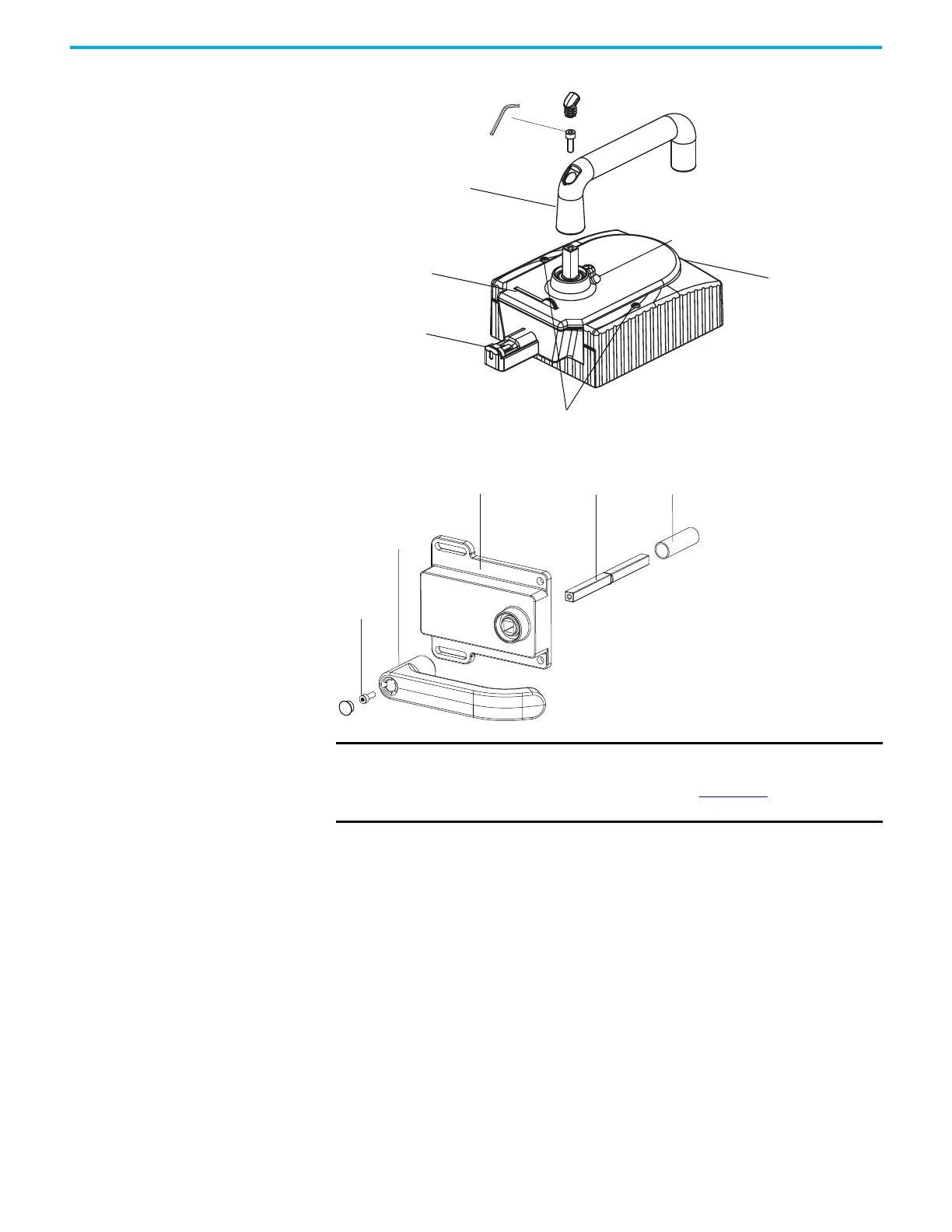

Figure 4 - Handle Assembly
Figure 5 - Escape Release (optional)
IMPORTANT The length of the actuation shaft (115 mm [4.53 in.]) is optimized for
mounting on a 45 mm (1.77 in.) profile. An extended shaft is available
(Cat. No. 442G-MABASHFT). See publication 442G-IN004
for instructions
regarding mounting on smaller or larger profiles.
3 mm
(0.12 in.)
Locking Pin for Handle
Adjustment
Bolt Tongue
Guard Door Handle
Roll-out Bolt
Locking Mechanism
Automatically
Extended Bolt
Lock Mechanism
2 x Torx T10
Protective
Sleeve
Setscrew
Handle
Cover
Actuation Shaft
8 x 8 mm (0.31 x 0.31 in.)
