English-28 PowerFlex 400P Adjustable Frequency AC Drive Quick Start
PowerFlex 400P Frames

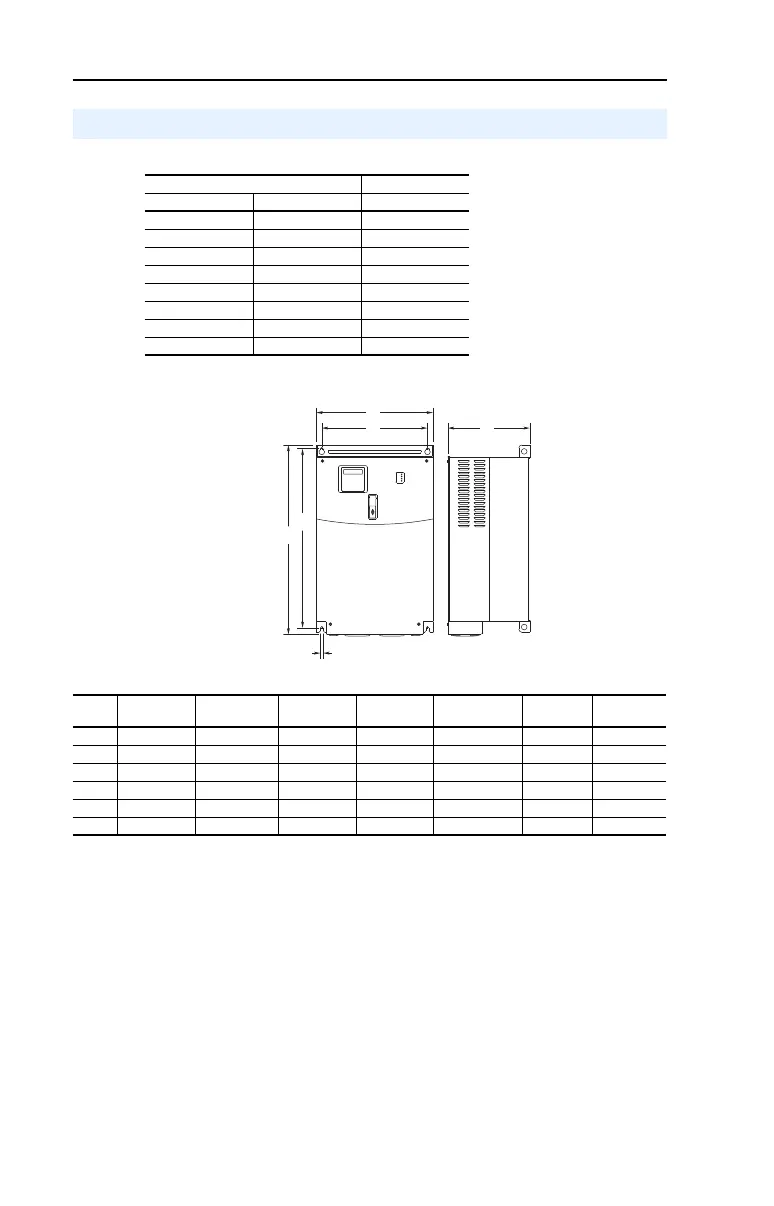

Figure 5: PowerFlex 400P Frames C-F IP20/66
Dimensions are in millimeters and (inches).
Dimensions
Output Power Frame Size
kW HP 400-480V AC Input
2.2-7.5 3-10 C
11-15 15-20 C
18.5-22 25-30 D
30-37 40-50 E
45-75 60-100 E
90-110 125-150 F
132-160 200-250 G
200-250 300-350 H
Frame a b c d e f
Weight
(1)
kg (lbs.)
C 130.0 (5.1) 260.0 (10.2) 180.0 (7.1) 116.0 (4.57) 246.0 (9.7) 5.8 (0.23) 4.33 (9.5)
D 250.0 (9.84) 436.2 (17.17) 206.1 (8.11) 226.0 (8.90) 383.4 (15.09) 9.0 (0.35) 14.0 (30.9)
E 370.0 (14.57) 605.5 (23.84) 259.2 (10.21) 335.0 (13.19) 567.4 (22.34) 8.5 (0.33) 51.2 (112.9)
F 425.0 (16.73) 850.0 (33.46) 264.0 (10.39) 381.0 (15.00) 647.5 (25.49) 13.0 (0.51) 88.0 (194.0)
G 425.0 (16.73) 892.0 (35.12) 264.0 (10.39) 381.0 (15.00) 819.5 (32.26) 13.0 (0.51) 106 (233.7)
H 529.0 (20.83) 1363.8 (53.60) 358.6 (14.12) 480.0 (18.90) 1119.0 (44.06) 13.0 (0.51) 177 (390.2)
(1)
Weights include HIM and Standard I/O.
22P-QS001C-EN-P.fm Page 28 Thursday, March 30, 2017 5:55 PM
