PowerFlex 400P Adjustable Frequency AC Drive Quick Start English-29
EMC Line Filters

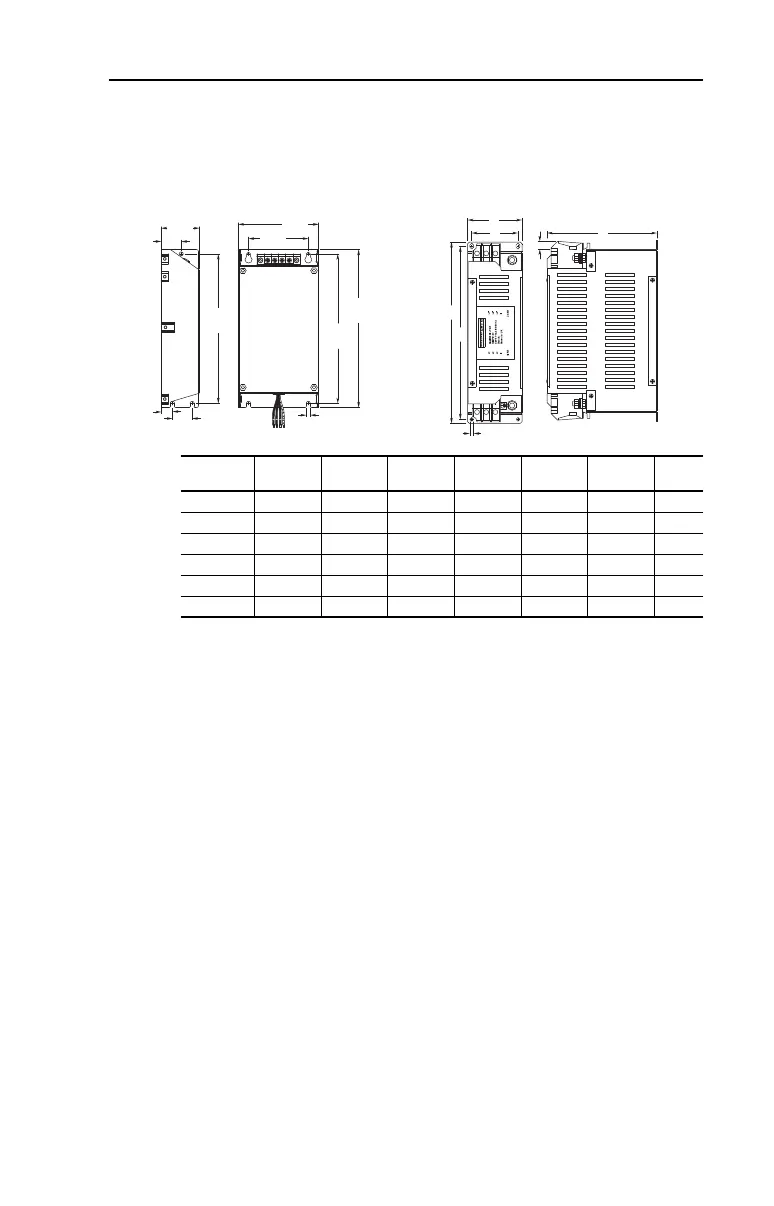

Dimensions are in millimeters and (inches).
Figure 6: Catalog Numbers: 22-RF018-CS,
22-RF018-CL, 22-RF026-CS, 22-RF026-CL,
22-RF026-CL, 22-RF034-CS
Figure 7: Catalog Numbers: 22-RFD036,
22-RFD050, 22-RFD070, 22-RFD100,
22-RFD150, 22-RFD180
130
(5.12)
90
(3.54)
60
(2.36)
32
(1.26)
17
(0.67)
30
(1.18)
5.5 (0.22)
297
(11.69)
297
(11.69)
309
(12.17)
B
E
A
D
C
F
G
Catalog
NumberABCDEFG
22-RFD036 74 (2.91) 272 (10.71) 161 (6.34) 60 (2.36) 258 (10.16) 7.5 (0.30) 7 (0.28)
22-RFD050 93 (3.66) 312 (12.28) 190 (7.48) 79 (3.11) 298 (11.73) 13.5 (0.53) 7 (0.28)
22-RFD070 93 (3.66) 312 (12.28) 190 (7.48) 79 (3.11) 298 (11.73) 13.5 (0.53) 7 (0.28)
22-RFD100 93 (3.66) 312 (12.28) 190 (7.48) 79 (3.11) 298 (11.73) 13.5 (0.53) 7 (0.28)
22-RFD150 126 (4.96) 312 (12.28) 224 (8.82) 112 (4.41) 298 (11.73) 19.5 (0.77) 7 (0.28)
22-RFD180 126 (4.96) 312 (12.28) 224 (8.82) 112 (4.41) 298 (11.73) 27 (1.06) 7 (0.28)
