20 Rockwell Automation Publication CC-QS034C-EN-P - March 2015
Chapter 1 PowerFlex Compact-class AC Drive Setup
Configure Your Drive by Using Connected Components Workbench Software
The following steps show you how to configure your drive’s communication, start source, and speed reference source, so it
works properly with the PowerFlex AC Drive on Modbus Device Building Block. You must enter the correct motor and
application-specific data into the wizard to properly commission your drive. Depending on your drive type, there can be
more steps in your wizard. Follow these steps to configure your drive.

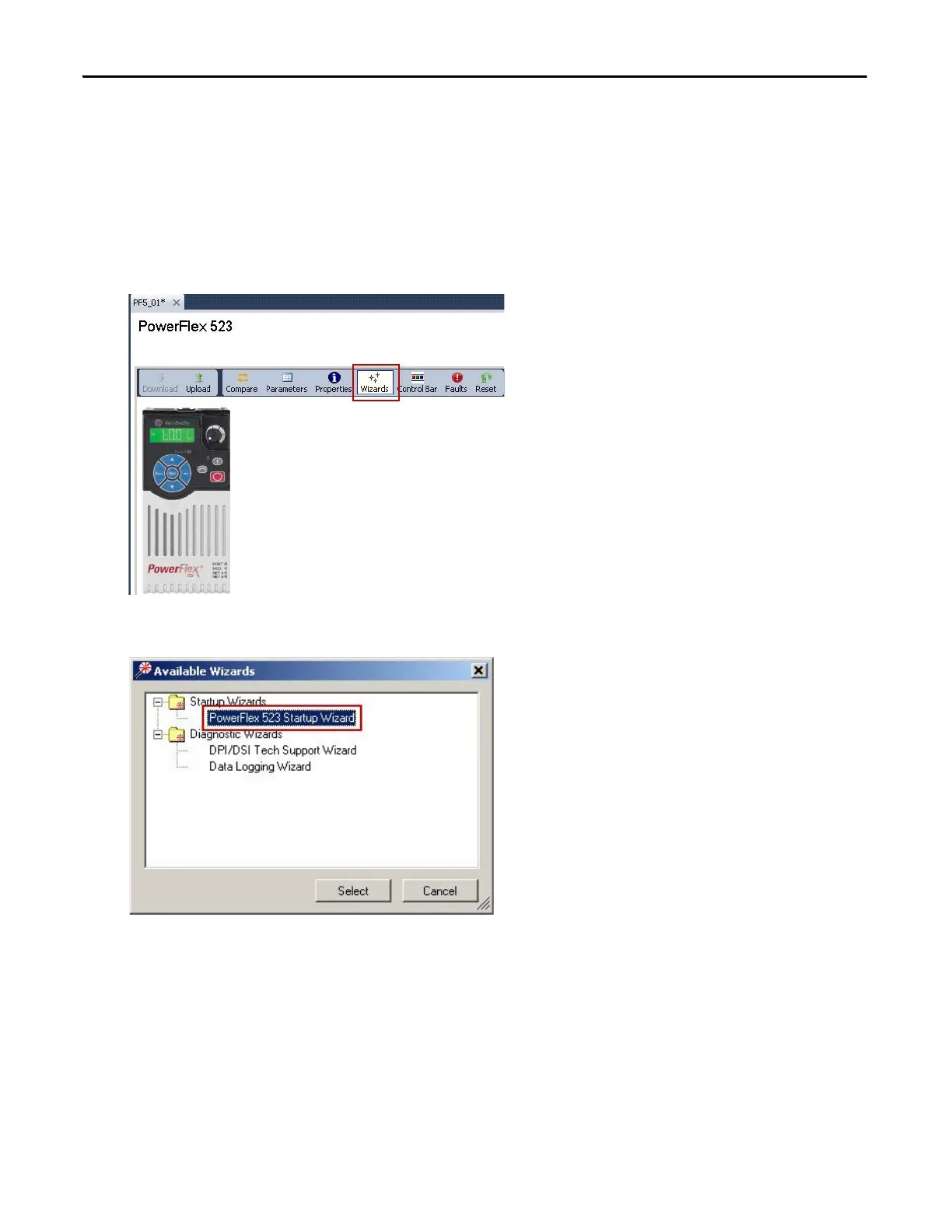

1. In the toolbar, click the Wizards icon.
2. From the list of Available Wizards, select the applicable Startup Wizard and click Select.
3. Complete each step of the Startup Wizard sequentially.
