2 Rockwell Automation Publication 750-RN034B-EN-P - November 2014
PowerFlex 753 Drives (revision 10.003)
Determining Firmware
Revision Level
This section describes procedures to determine the firmware revision of your
PowerFlex 753 drive.
Using the Drive LCD HIM
1. Access the Status screen, which is displayed on HIM power up.

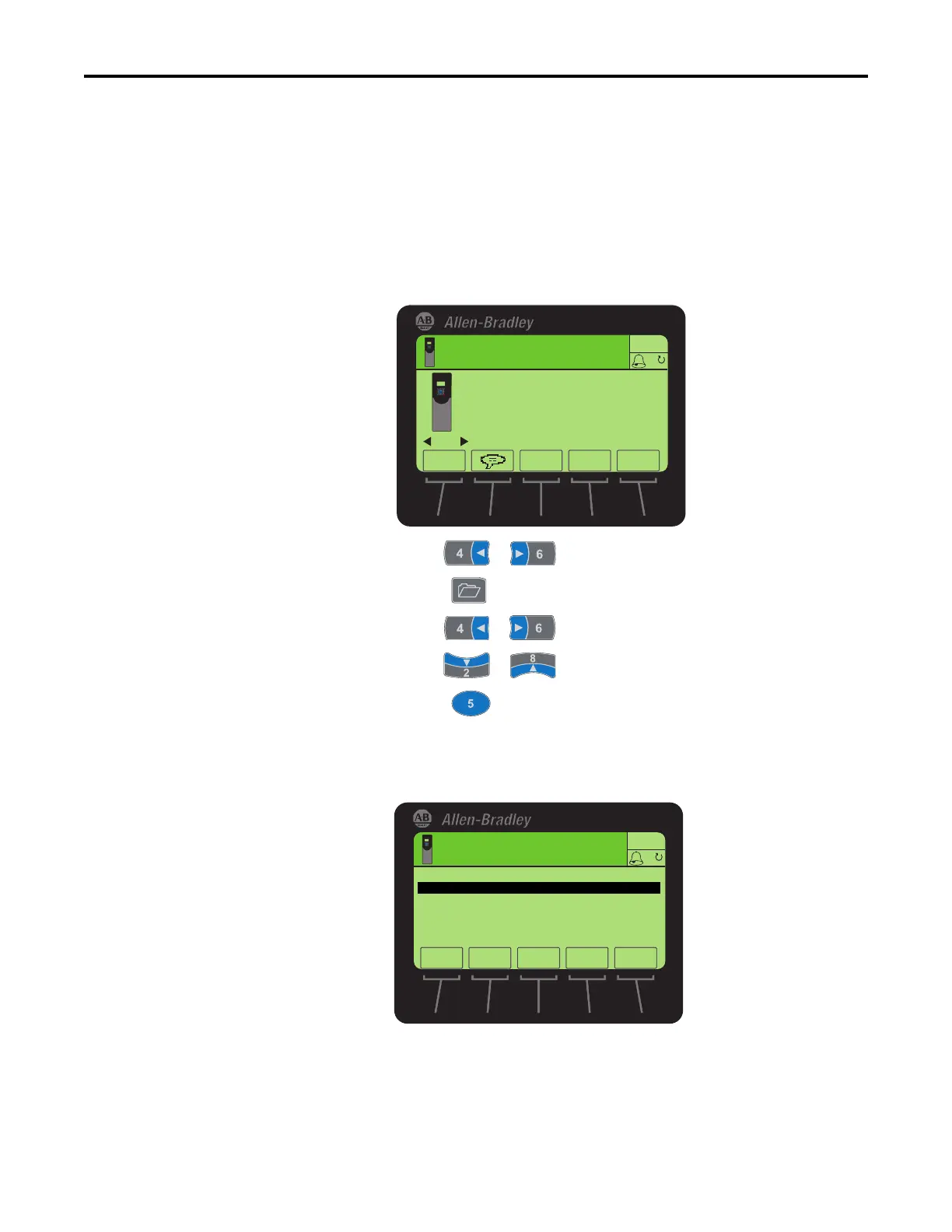

Figure 1 - Status Screen
2. Use the or key to scroll to Port 00 for the Host Drive.
3. Press the key to display its last-viewed folder.
4. Use the or key to scroll to the DIAGNOSTIC folder.
5. Use the or key to select Device Version.
6. Press the (Enter) key to display device version information.
FW Revision is listed under –Main Control Board; see
Figure 2
.
Figure 2 - Device Version Information Screen
00
00
Stopped
0.00 Hz
AUTO
Host Drive
480V 2.1A
20F...D2P1
ESC
REF
TEXT
F
PAR#
Stopped
0.00 Hz
AUTO
ESC
F
PowerFlex 753
Product Revision 1.007
Product Ser Num 00000000
Product Series A
–Main Control Board
FW Revision 5.001
TOP END PGUP PGDN
To Next Page
