D-4 RJ45 DSI Splitter Cable
PowerFlex 40 Adjustable Frequency AC Drive FRN 1.xx - 7.xx User Manual
Publication 22B-UM001I-EN-E

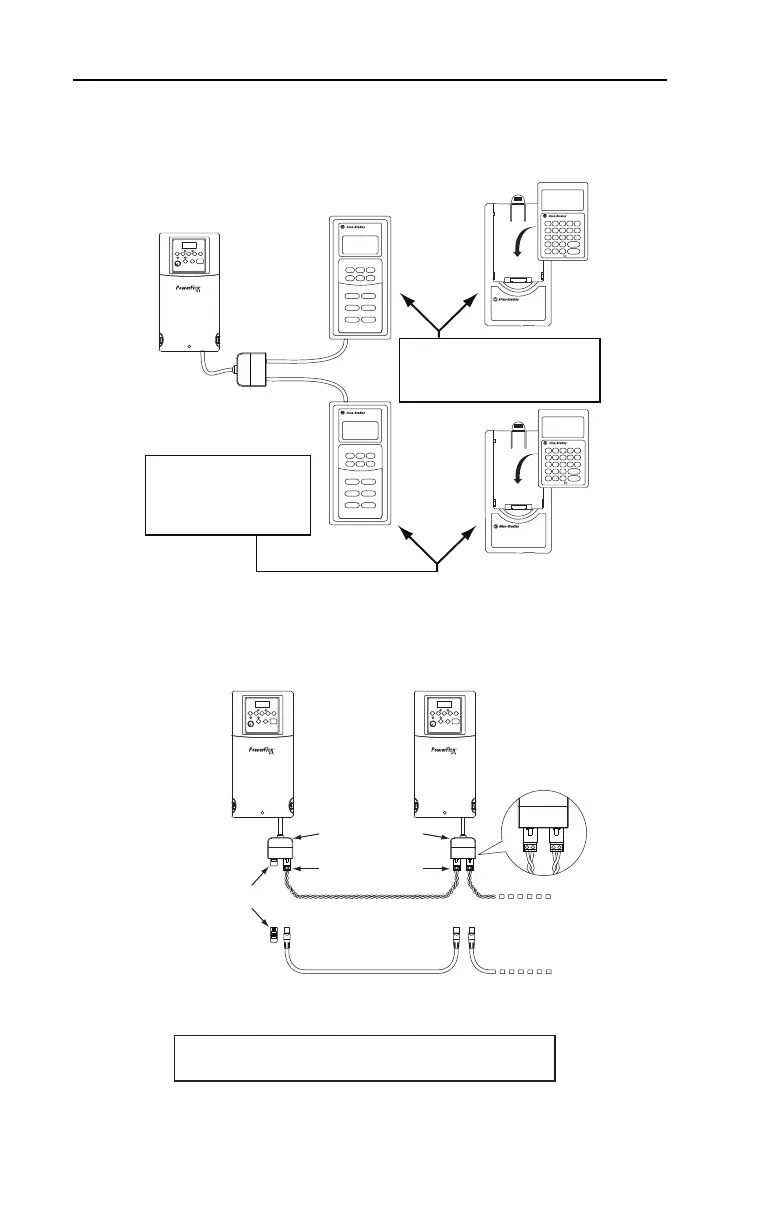

Connecting Two Permanent Peripherals
Connecting an RS-485 Network
or
NEMA 1 Bezel
with DSI / MDI Hand Held
NEMA 4
Panel Mount Unit
Parameter 9 [Device Type] set to
"Master" and connected to Master
port (M) on RJ45 Splitter Cable
Parameter 9 [Device Type]
set to "Slave" and
connected to Slave port (S)
on RJ45 Splitter Cable
M
S
DSI / MDI Drive
or
AK-U0-RJ45-TR1
Terminating Resistor
(end of network)
DSI / MDI Drives
or
or
Customer supplied RJ45 male-to-RJ45 male
cables with wires connected at pins 4 and 5 only.
Both the Master (M) and Slave (S) ports on the RJ45 Splitter
Cable operate as standard RS-485 ports in this configuration.
AK-U0-RJ45-SC1
AK-U0-RJ45-TB2P
Two-position Terminal Block
22B-UM001.book Page 4 Tuesday, May 30, 2017 5:22 PM
