Rockwell Automation Allen-Bradley VersaView 6300P Series - Computer Dimensions

Rockwell Automation Publication 6300P-UM001B-EN-P - March 2021 11
Chapter 1 About the Panel PC
Computer Dimensions

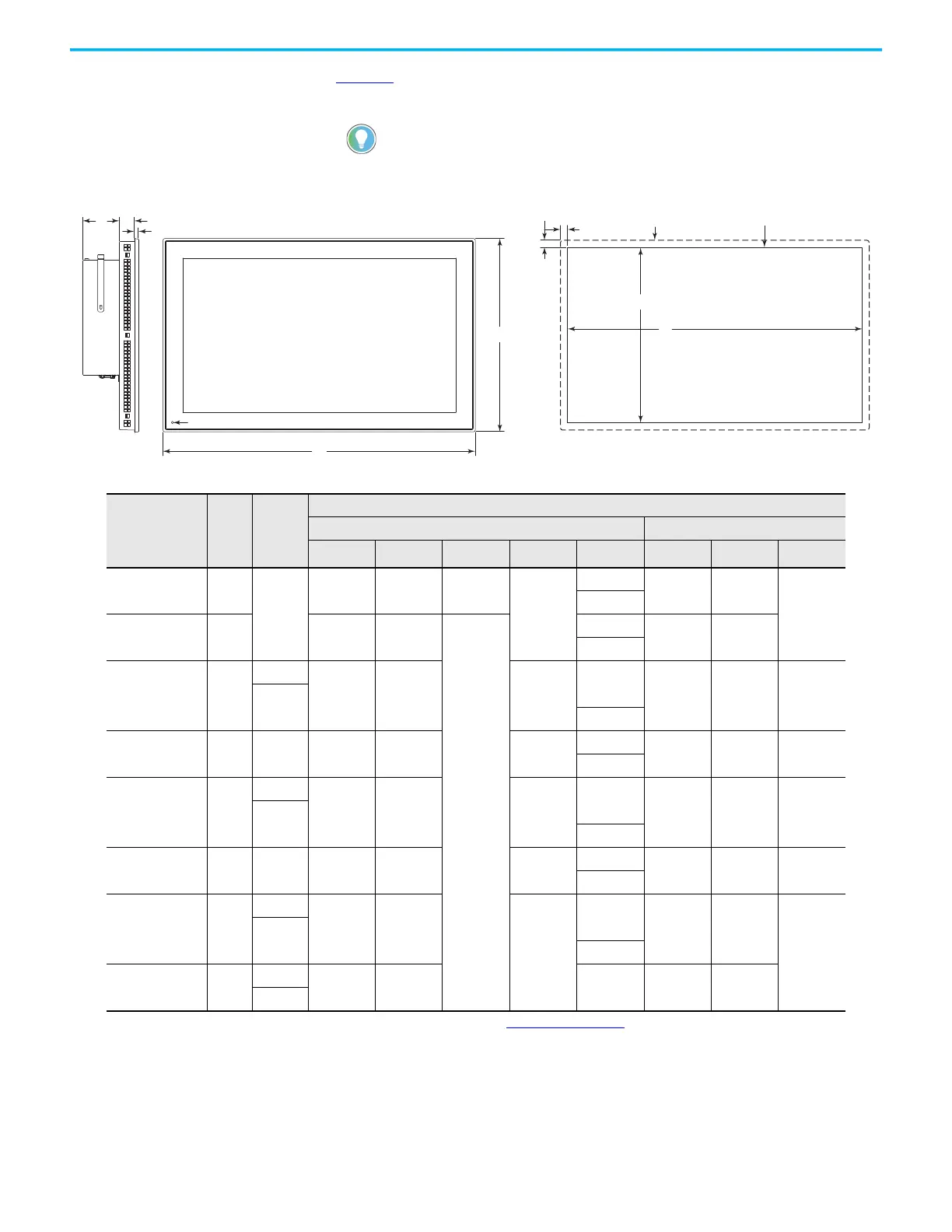

Figure 2 shows the dimensions of the various VersaView 6300P panel PC
models.
Figure 2 - VersaView 6300P Computer Dimensions
For the catalog number of your computer, refer to the label on your computer.
Monitor Display
Cutout Area
F
G
H
ED
B
A
Front ViewSide View Panel Cutout
Video light-emitting diode (LED)
NOTE: Cat. No. 6300P-240ACPM… with a low profile bezel is shown only for illustrative purposes.
C
Cat. No.
Display
Size, in. Format
(1)
All dimensions are in mm (in.)
Panel PC Panel Cutout
A B C D E F
(2)
G
(2)
H
6300P-121BAPS…
12.1
S1
335 (13.2) 270 (10.62) 5 (0.2)
19 (0.75)
100 (3.94)
315 (12.4) 250 (9.84)
10 (0.39)
6300P-121FAPS… 70 (2.76)
6300P-150BAPS…
15 390 (15.35) 315 (12.4)
6 (0.24)
100 (3.94)
370 (14.57) 295 (11.61)
6300P-150FAPS… 70 (2.76)
6300P-156AAPS…
15.6
W1
395.5 (15.57) 245 (9.65) 24 (0.95)
100 (3.94)
387.5 (15.26) 237.5 (9.35) 4 (0.16)6300P-156ACPM…
W2
6300P-156ECPM… 70 (2.76)
6300P-170BAPS…
17 S1 455 (17.91) 355 (14) 21 (0.83)
100 (3.94)
435 (17.13) 335 (13.19) 10 (0.39)
6300P-170FAPS… 70 (2.76)
6300P-185AAPS…
18.5
W1
461 (18.15) 282 (11.1) 24 (0.95)
100 (3.94)
453 (17.83) 274.5 (10.81) 4 (0.16)6300P-185ACPM…
W2
6300P-185ECPM… 70 (2.76)
6300P-190BAPS…
19 S1 490 (19.29) 388 (15.28) 23 (0.91)
100 (3.94)
470 (18.5) 368 (14.49) 10 (0.39)
6300P-190FAPS… 70 (2.76)
6300P-215AAPS…
21.5
W1
528 (20.79) 319.5 (12.58)
24 (0.95)
100 (3.94)
520 (20.47) 312 (12.28)
4 (0.16)
6300P-215ACPM…
W2
6300P-215ECPM… 70 (2.76)
6300P-240AAPS…
24
W1
584 (23) 352 (13.86) 100 576 (22.68) 344.5 (13.56)
6300P-240ACPM… W2
(1) S = standard and W = widescreen; 1 = single touch and 2 = multi-touch. For aspect ratios, see Computer Options on page 10.
(2) Dimensions are +0/-1 mm (0.04 in.).
