Rockwell Automation PanelView Plus 700

Publication 2711P-UM001I-EN-P - December 2008 43
Installation Chapter 2

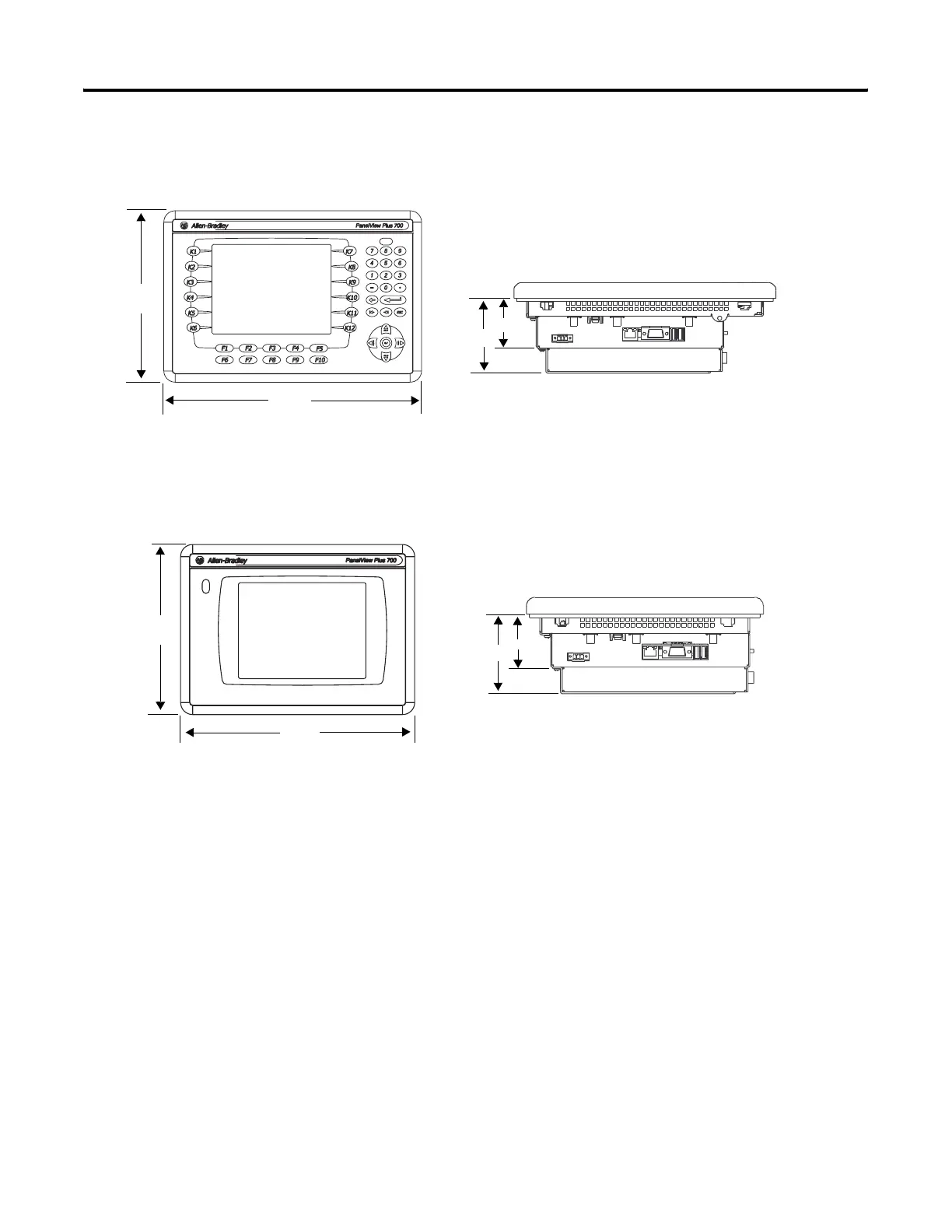

PanelView Plus and PanelView Plus CE 700 Dimensions
The depth dimensions are shown for:
• base-configured unit (display module and logic module).
• base-configured unit with communication module.
700 Touch Screen Terminal
179
(7.04)
246
(9.68)
290
(11.40)
193
(7.58)
a 55 (2.18) Display to Logic Module
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
b
a
a
b
700 Keypad or Keypad/Touch Terminal
