Publication 2711P-UM001I-EN-P - December 2008 149
Install and Replace Components Chapter 6
PanelView Plus 400 and 600 Terminals

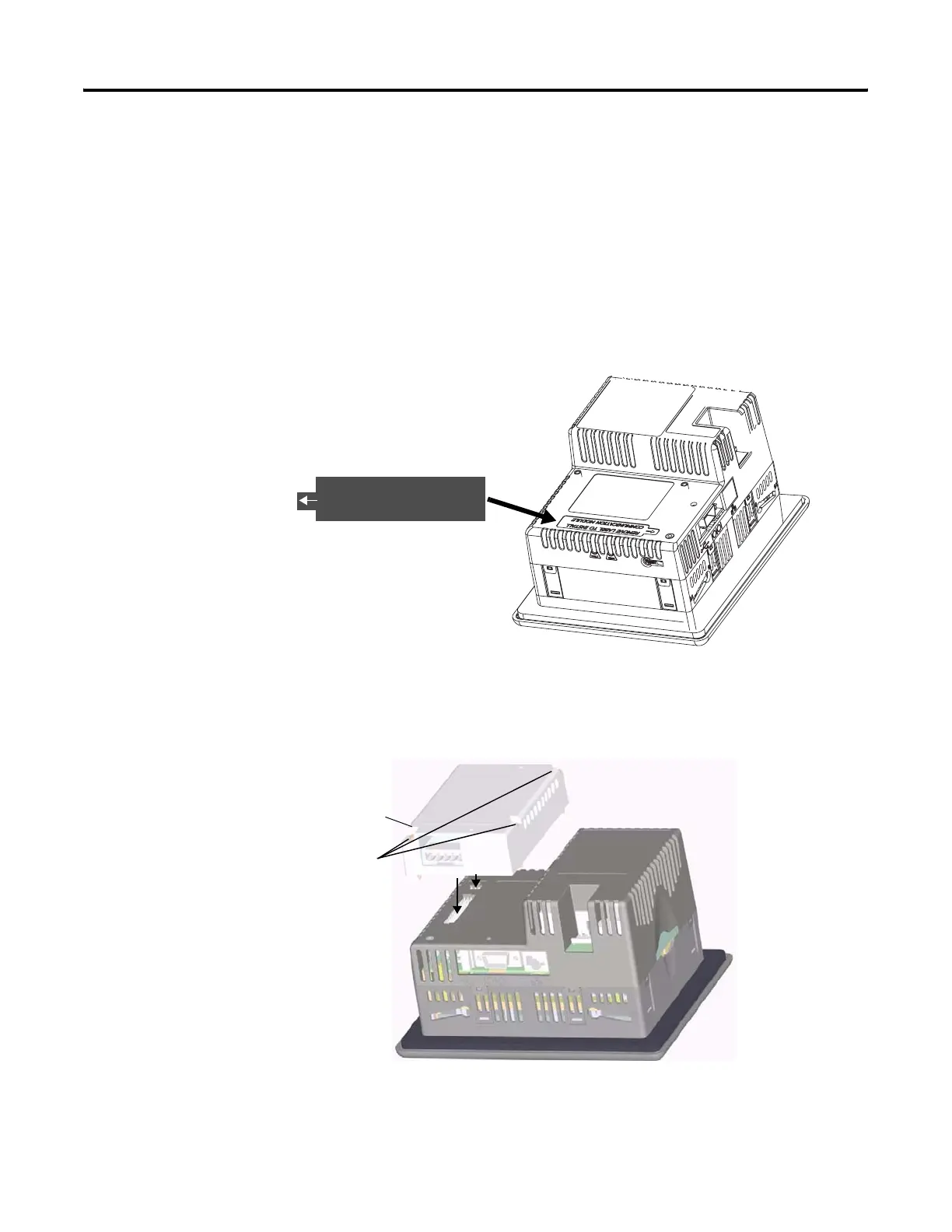

Follow these steps to install a communication module.
1. Disconnect power from the terminal.
2. Set the terminal, display side down, on a clean, flat, stable
surface.
3. Remove the label covering the connectors on the base unit of
the terminal.
4. Position the communication module over back of the terminal
so that the connector on bottom of communication module align
with the connector on the base unit.
REMOVE LABEL TO INSTALL
COMMUNICATION MODULE
Captive
Screws
Tighten this
screw first.
To Next Page
