Rockwell Automation PanelView Plus Series User Manual

Publication 2711P-UM001I-EN-P - December 2008 181
Terminal Connections Chapter 7
DH-485 Connections for 400 and 600 Terminals
This section shows connections between a 400 and 600 terminal with
a DH-485 communication module and an SLC or ControlLogix
controller through the AIC+ module.

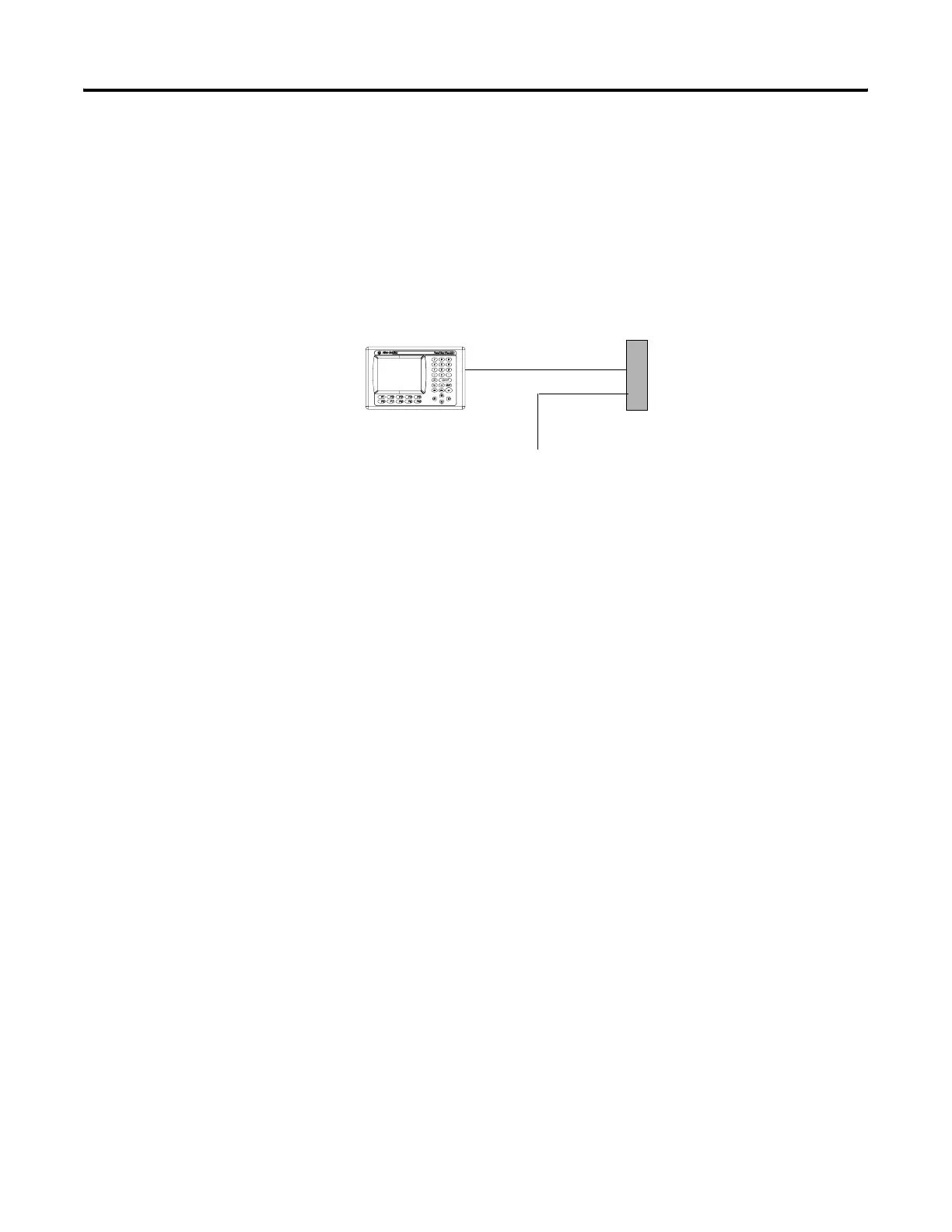

PanelView Plus 400 or 600
with DH-485 Module
1784-CP14 Cable
To ControlLogix or SLC Controller
AIC +
RS-232
1761-CBL-PM002 Cable
