Rockwell Automation PanelView Plus Series

Publication 2711P-UM001I-EN-P - December 2008 45
Installation Chapter 2

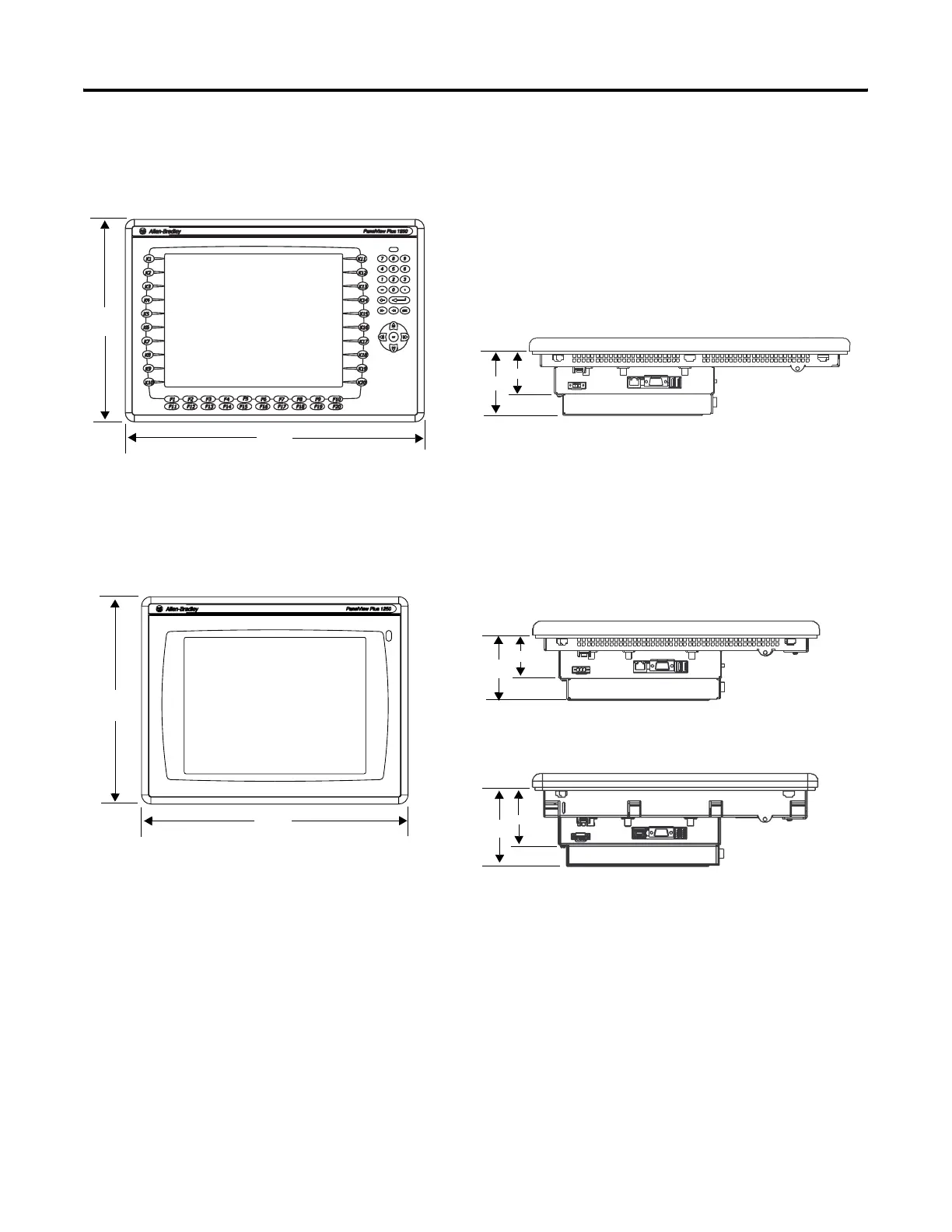

PanelView Plus and PanelView Plus CE 1250 Dimensions
The depth dimensions are shown for:
• base-configured unit (display module and logic module).
• base-configured unit with communication module.
282
(11.12)
416
(16.36)
363
(14.30)
282
(11.12)
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a
b
a
b
1250 Keypad or Keypad/Touch Terminal
1250 Touch Screen Terminal
a
b
a 74 (2.90) Display to Logic Module
b 101 (3.99) Display to Communication Module
1250 High-bright
1250
