SMC™ Flex Quick Start 5

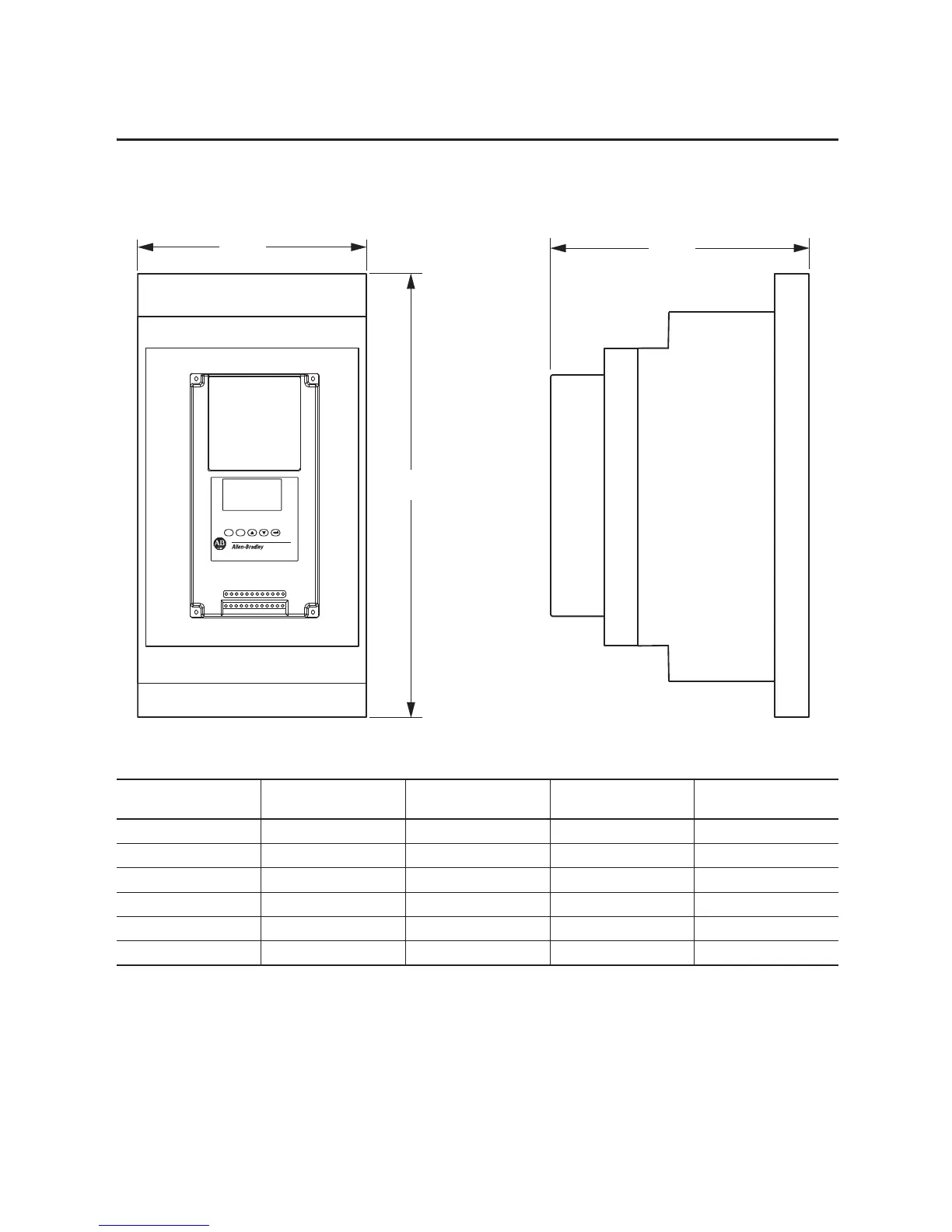

Dimensions
For detailed dimensions, please refer to the SMC Flex User Manual.
Dimensions are in millimeters (inches).
Controller Rating [A] Height (B) Width (A) Depth (C) Approximate Shipping
Weight
5…85 321.0 (12.60) 150.0 (5.90) 203.0 (8.00) 5.7 kg (12.5 lb)
108…135 443.7 (17.47) 196.4 (7.74) 212.2 (8.35) 15.0 kg (33.0 lb)
201…251 560.0 (22.05) 225.0 (8.86) 253.8 (9.99) 30.4 kg (67.0 lb)
317…480 600.0 (23.62) 290.0 (11.42) 276.5 (10.89) 45.8 kg (101 lb)
625…780 1041.1 (41.00) 596.9 (23.50) 346.2 (13.63) 179 kg (395 lb)
970…1250 1041.1 (41.00) 596.9 (23.50) 346.2 (13.63) 224 kg (495 lb)
23 24 25 26 27 28 29 30 31 32 33 34
11 12 13 14 15 16 17 18 19 20 21 22
SMC-Flex
Lang
TM
Esc
Sel
C
A
B
