4. Power Pack Specifications Trusted Power System
20 Issue 11 Rockwell Automation Publication PD-T823X
4.7. Power Pack Hot Replacement
1. Plug in slowly and smoothly.
2. Make sure the first set of pins are contacted – the AC OK LED will illuminate.
3. Push fully home - the PWR OK LED will illuminate.

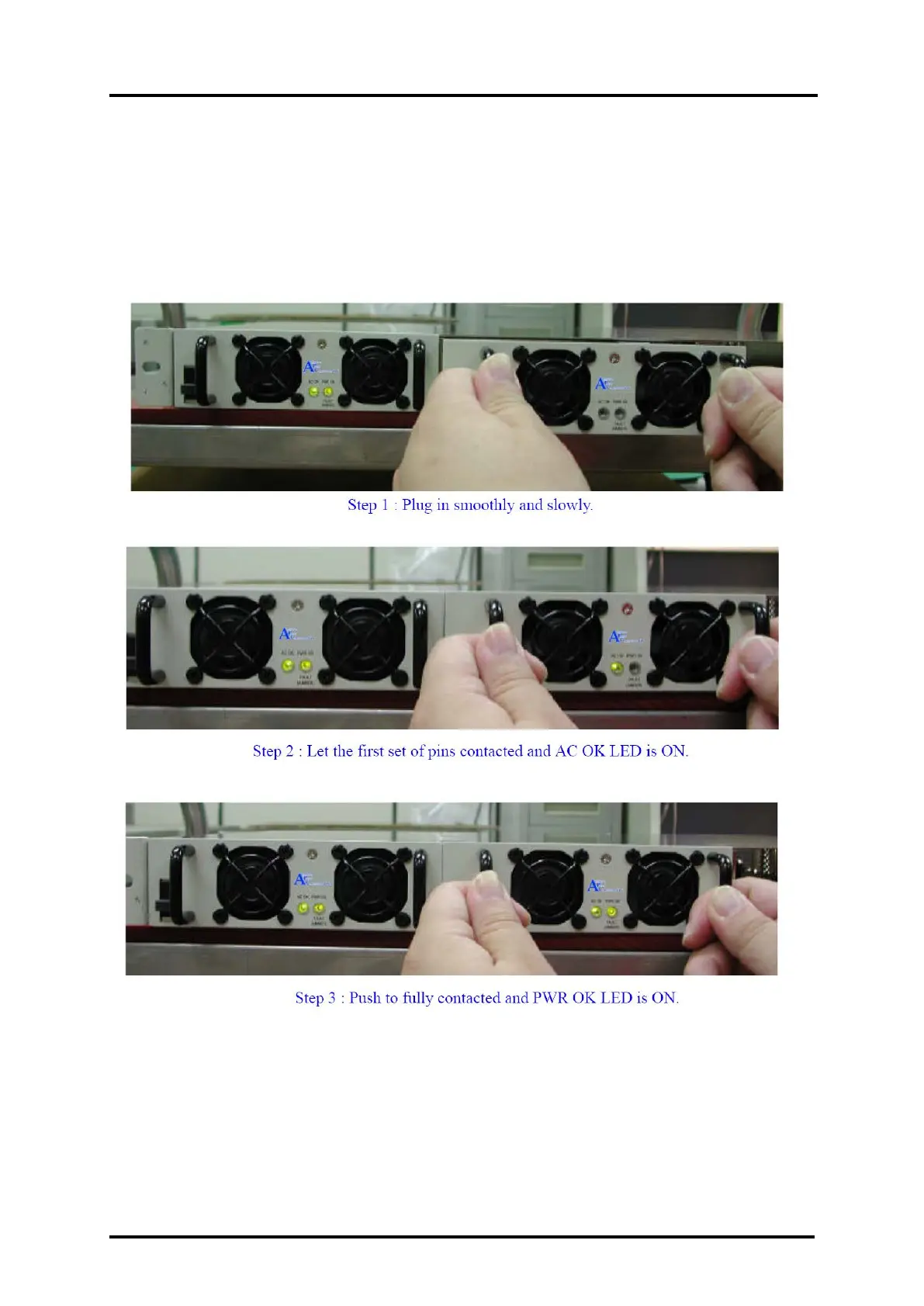

Figure 10 Power Pack Hot Replacement
