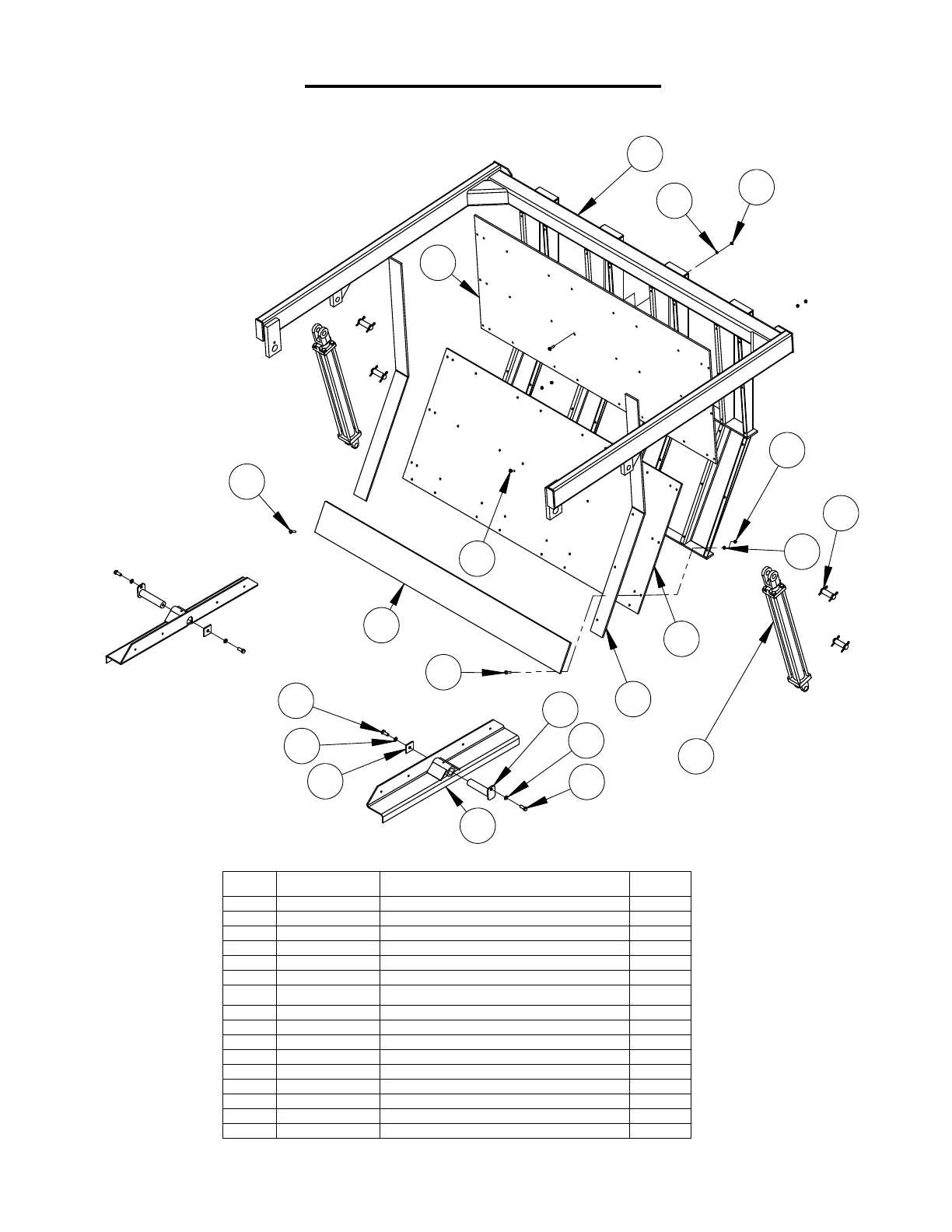

SLOP GATE BREAKDOWN
24
7
8
15
16
1
9
2
15
16
10
14
14
13
11
12
5
3
6
12
11
4
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 810004 SLOP GATE 1
2 810032 LOWER SLOP GATE PLASTIC 1
3 810012 SLOP GATE PIVOT BRACKET 2
4 810041 UPPER SLOP GATE PLASTIC 1
5 810013 SLOP GATE PIN 2
6 810036 SLOP GATE PIVOT WASHER 2
7 B200240ABAAA07A HYD CYLINDER, 2" BORE 24" STROKE 2
8 610023 CYLINDER PIN KIT 2
9 810050 SIDE RUBBER FOR SLOP GATE 2
10 610087 BOTTOM RUBBER FOR SLOP GATE 1
11 HX-50-1.25 1/2" x 1.25" HEX HEAD BOLT 4
12 LW-50 1/2" LOCK WASHER 4
13 CH-31-1.25 5/16" CARRIAGE BOLT,1.25" 30
14 CH-31-1.5 5/16" CARRIAGE BOLT, 1.5" 18
15 HN-31 5/16" HEX HEAD NUT 48
16 LW-31 5/16" LOCK WASHER 48
