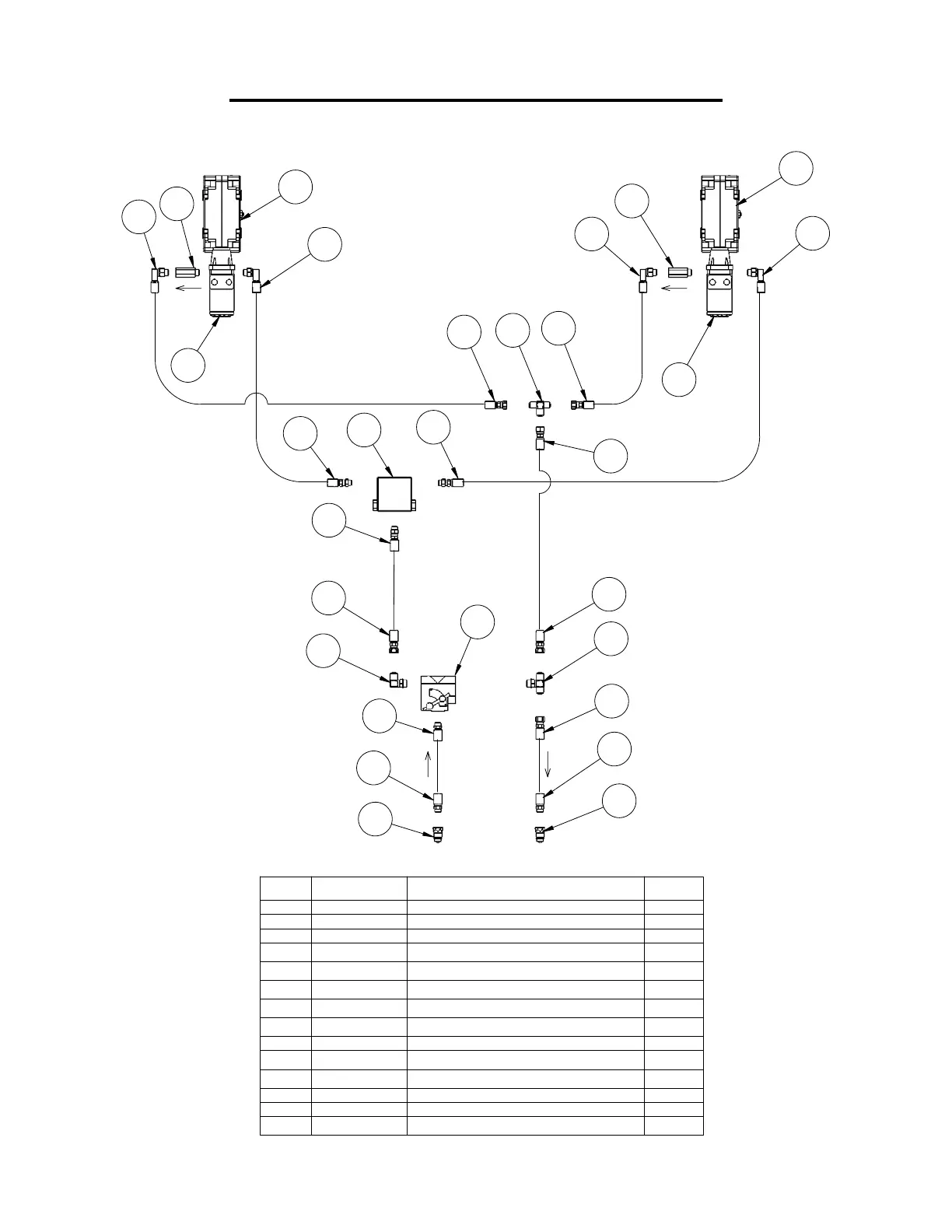

APRON HYDRAULICS BREAKDOWN
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 FC-51 VALVE, FLOW CONTROL 1
2 W25SDA008030 WORM GEAR DRIVE 2
3 101-1014 HYD MOTOR, EATON 2
4 08U-R70 1/2" HOSE END, 7/8-14, M-"O" RING, ELB, SWVL 4
5 FC-10 CHECK VALVE, 7/8-14, "O" RING 2
6 6803-10-10-10 TEE, 7/8-14, 2 M-FLARE x M-"O" RING 1
7 6801-10-10 90 ELBOW, 7/8-14, M-FLARE x M-"O" RING 1
8 08U-610 1/2" HOSE END, 7/8-14, F-FLARE, STR, SWVL 6
9 8010-15 PIONEER TIP, 3/4-16, M 2
10 08U-P08 1/2" HOSE END, 3/4-16, M-"O" RING, STR, RGD 2
11 08U-P10 1/2" HOSE END, 7/8-14, M-"O" RING, STR, RGD 1
12 B100AB-1-2 PROPORTIONAL DIVIDER 1
13 2603-10-10-10 TEE, 9/16-18, 2 M-FLARE 1
14 08U-J08 1/2" HOSE END, 1/2-14, M-NPT, STR, SWVL 3
4
5
4
2
3
8
13
8
8
4
2
3
5
4
14
14
12
14
8
7
8
6
8
10
10
11
1
9
9
1/2" HYD HOSE
30
