Example:
1-PRESS 2-RELEASE
OPEN CLOSE
or or or
or
OPEN CLOSE
within 1 s
3-RE-PRESS
APRE CLOSE
• THE MOTOR in question is activated on opening by pressing the S"UP ARROW" key, or on closure by pressing the
T"DOWN ARROW" key.
• *SVWEJIX]XLISTIRERHGPSWIJYRGXMSRWEVISRP]EZEMPEFPIMRGSRXMRYSYWGSRXVSPSTIVEXSVTVIWIRXQSHITVIWW
the button, release within 1 second and then press and hold. The motor stops as soon as the button is released.
WARNING: during the check, the motor revolution count (position) is updated but the gate leaf alignment control
function may cause problems. Before exiting INFO, make sure that the gate leaves are correctly aligned.
• Press and hold the TEST button for a few seconds to exit INFO mode.
16 Mechanical release
In the event of power failure, the gate may be unlocked by following the instructions given in the use and maintenance
QERYEPSJXLIEYXSQEXMSRW]WXIQ3RVIGIMZMRKXLIƼVWXGSQQERHWMKREPEJXIVQEMRWTS[IVMWVIWXSVIHXLIGSRXVSPYRMX
starts an opening manoeuvre in position recovery mode (see chapter 17).
17 Position recovery mode
3RVIGIMZMRKXLIƼVWXGSQQERHWMKREPEJXIVETS[IVJEMPYVISVEJXIVHIXIGXMRKERSFWXEGPIMRXLIWEQITSWMXMSRXLVII
consecutive times, the control unit starts a manoeuvre in position recovery mode.
;LIRXLIGSRXVSPPIVVIGIMZIHEGSQQERHWMKREPXLIKEXIWXEVXWEQERSIYZVIEXPS[WTIIH8LIƽEWLMRKPMKLXƽEWLIW
with a different duty cycle than normal (3 s on, 1.5 s off).
In this phase the control unit performs a series of operations to recover the correct position in the opening and
closing directions. Warning! During the position recovery phase, do not activate any command and do not obscure the
photocells until the gate has performed a complete opening and closing manoeuvre for both leaves.

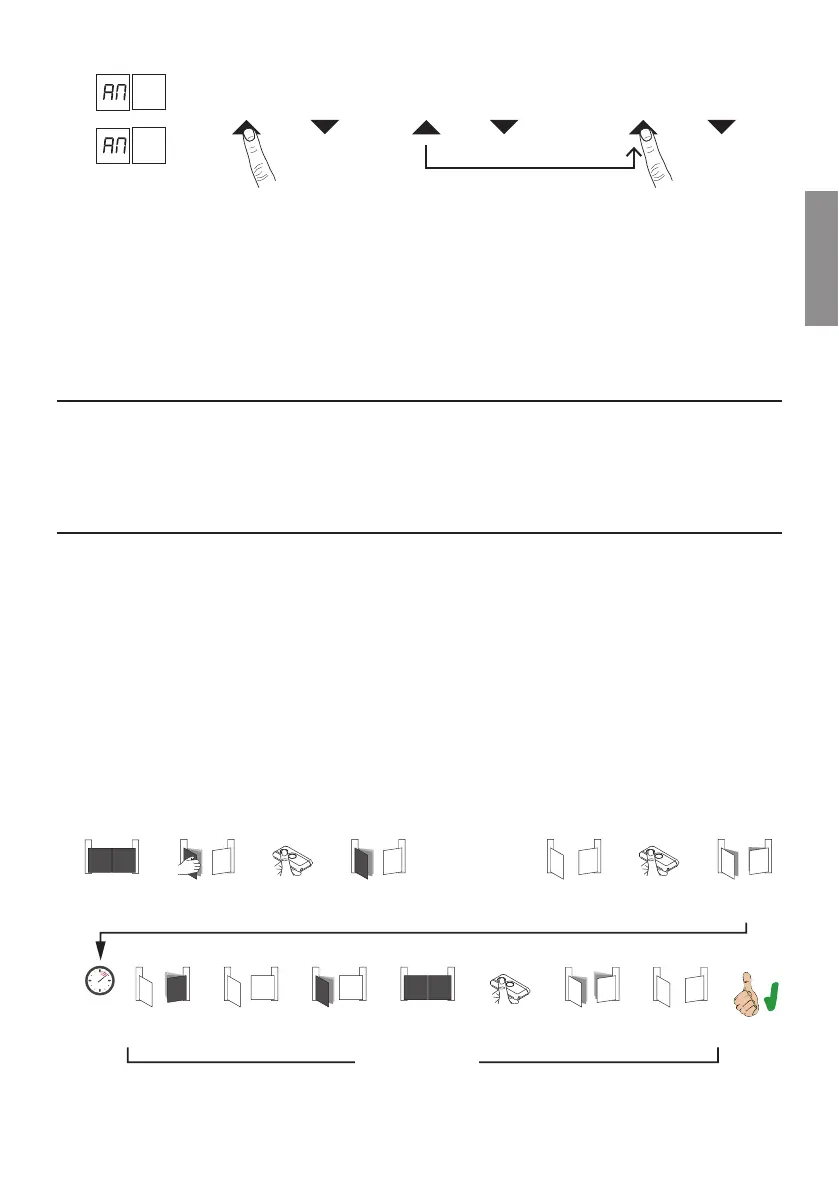

RELEASE OF THE GATE LEAVES WITH POWERED CONTROL UNIT
If both gate leaves are released from a completely open or completely closed position, to obtain the regular functioning
of the gate, simply reposition the leaves in the position they had when they were released. The gate will resume normal
STIVEXMSRSRVIGIMTXSJXLIƼVWXGSRXVSPGSQQERH
WARNING: If one or both leaves are released when they are completely closed, to manually open the gateway, the loss
of position data of the leaves occurs. In this case, the position recovery must be performed as shown in the following
illustration.
CLOSE
(CNT1=0, CNT2=0)
CLOSE
IT
ACTIVATES
ANTI-CRUSHING
1 sec.
PP
COMMAND
PP
COMMAND
PP
COMMAND
HAND
OPENING
LEAF1
OPEN STOP
1
LEAF
INVERSION
1
2
LEAFS
OPENING
1
2
OPEN
1
2
PARTIAL
CLOSING
LEAF
1
2
LEAF 2
CLOSE
1
2
LEAF 2
CLOSING
1
2
REPOSITIONING
LEAF 1
CLOSING
1
2
