4. Before starting ...
e) Select the appropriate self-acquisition procedure for your installation:
A) SELF-ACQUISITION PROCEDURE WITH ENCODER ENABLED, WITH OR WITHOUT LIMIT SWITCHES
B) SELF-ACQUISITION PROCEDURE WITH LIMIT SWITCHES, WITHOUT ENCODER
C) SELF-ACQUISITION PROCEDURE WITHOUT LIMIT SWITCHES AND WITHOUT ENCODER
d) Press the TEST button
Possible alarms and safety device messages:
SEE ACQUISITION PROCEDURE
00
No safety device in alarm state and no limit switch activated.
Sb (Sb)
Release handle or lock open.
18
STOP contact (N.C.) open.
Jumper the STOP contact.
17
Sensing edge contact COS1 (N.C.) is open. Check connection. If sensing
edge is not installed, disable with 73 00.
16
Sensing edge contact COS2 (N.C.) is open. Check connection. If sensing
edge is not installed, disable with 74 00.
15
Photocell contact FT1 (N.C.) is open. Check connection. If photocell is not
installed, disable with 50 00.
14
Photocell contact FT2 (N.C.) is open. Check connection. If photocell is not
installed, disable with 53 00.
fe
Both limit switches in error state. Check connections and settings of limit
switches.
fa
If gate is open, gate open limit switch is detected.
fC
If gate is closed, gate closed limit switch is detected.

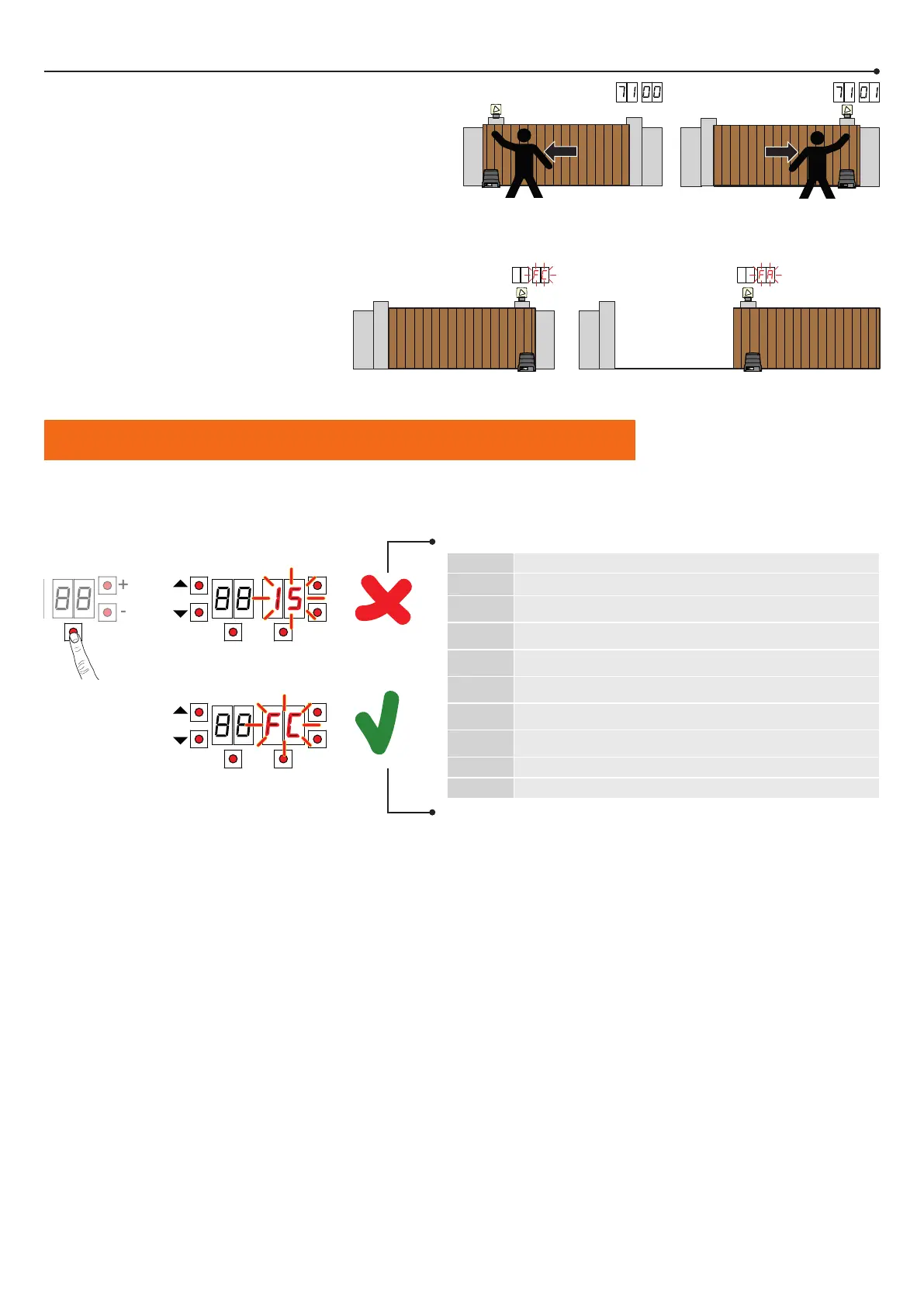

a) Select the position of the motor relative to the gate with the parameter
71 . The default setting for this parameter is with the motor installed
on the right hand side of the gate (seen from interior side).
b) Adjust the (mechanical or magnetic) limit
switches so that, once triggered, the gate stops
slightly before it reaches the mechanical stop.
To verify the correct direction of position with
respect to the passage press TEST.
If the gate is in closed position, FC will be
displayed; if the gate is in open position, FA will
be displayed.
GATE OPENS TO LEFT
GATE OPENS TO RIGHT
CLOSING LIMIT SWITCH
OPENING LIMIT SWITCH
WARNING: PARAMETER 30 MUST BE THE SAME AS 01
PROG TEST
+
-
TEST
+
-
