As for the sides and above, a minimum distance of between 10-12 cm must be left from any
wall or brickwork in order for it to function correctly (Figure 2).
2.2. Fixing the supports
Inside the packaging you will find a fixing kit and in the base of the radiator you will find a
security support.
• Choose the right part of the wall.
• Place the mounting stencil on the wall, marking the places for the holes.
• Remove the stencil and make the holes in the wall.
•
Fix the top supports using the plugs and screws provided, or others suitable for the
wall type.
• Check the correct positioning of the lower support.
• Place the radiator in the top supports.
• Screw the lower support to the wall.

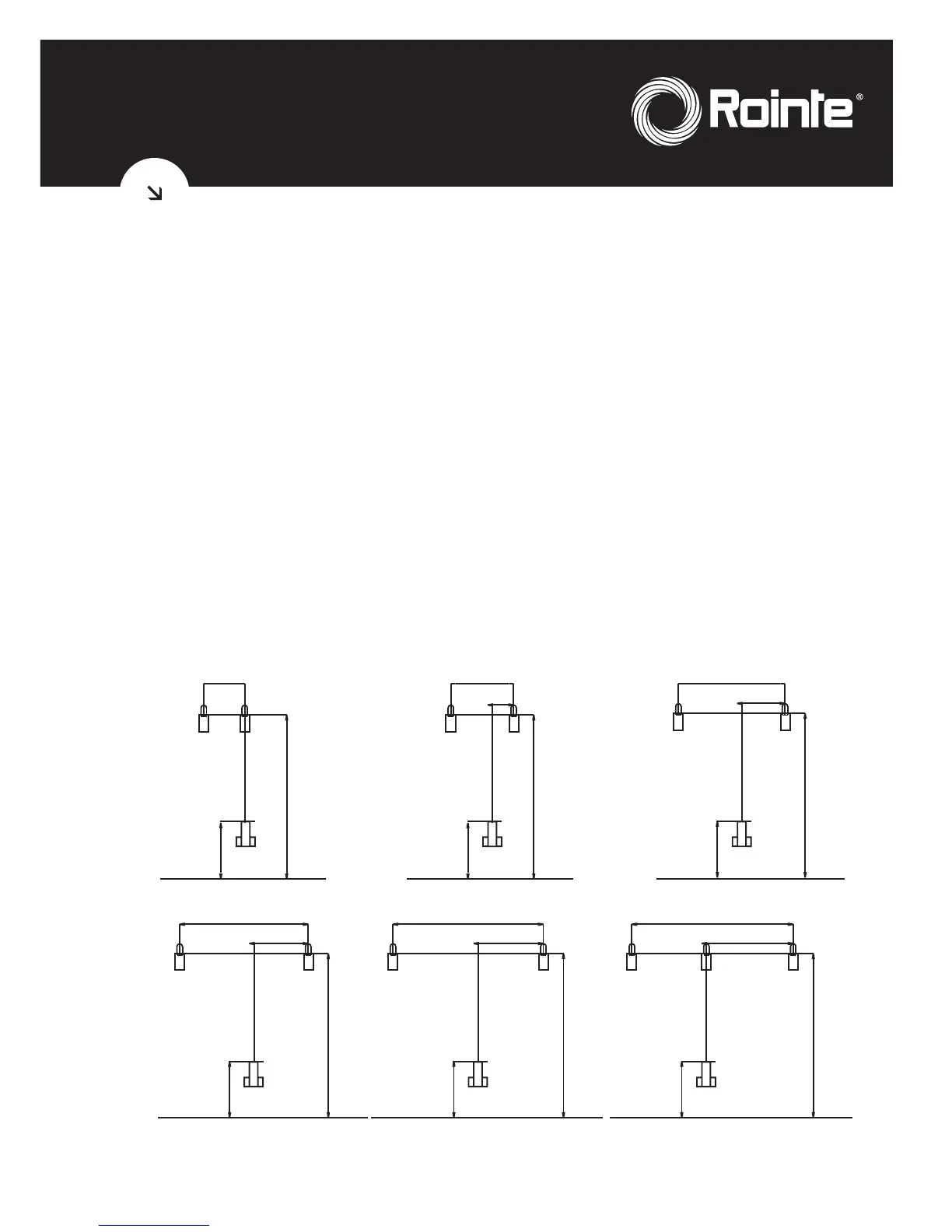

Installing template measures depending on the model:
KI0330RAD
Floor
215 mm
215 mm
680 mm
680 mm
81 mm
81 mm 162 mm
243 mm 324 mm 406 mm
243 mm 406 mm
568 mm 730 mm 893 mm
680 mm
680 mm
680 mm
680 mm
215 mm
215 mm
215 mm
215 mm
Floor Floor
FloorFloorFloor
KI0990RAD
KI0550RAD
KI1210RAD KI1430RAD / KI1600RAD
KI0770RAD
