Making Settings in the Menu
Parameter
Indication Value
Explanation
Curve *** Curve
1: Linear 2: Exp L 3: Exp H 4: Log L 5: Log H 6: S-Shape 7: Reverse S
1: Linear 2: Exp L 3: Exp H 4: Log L 5: Log H 6: S-Shape 7: Reverse S
Species the operation curve when the operation mode is MOMENTARY.
& “Function assignment (continuous operation)” (p. 16)

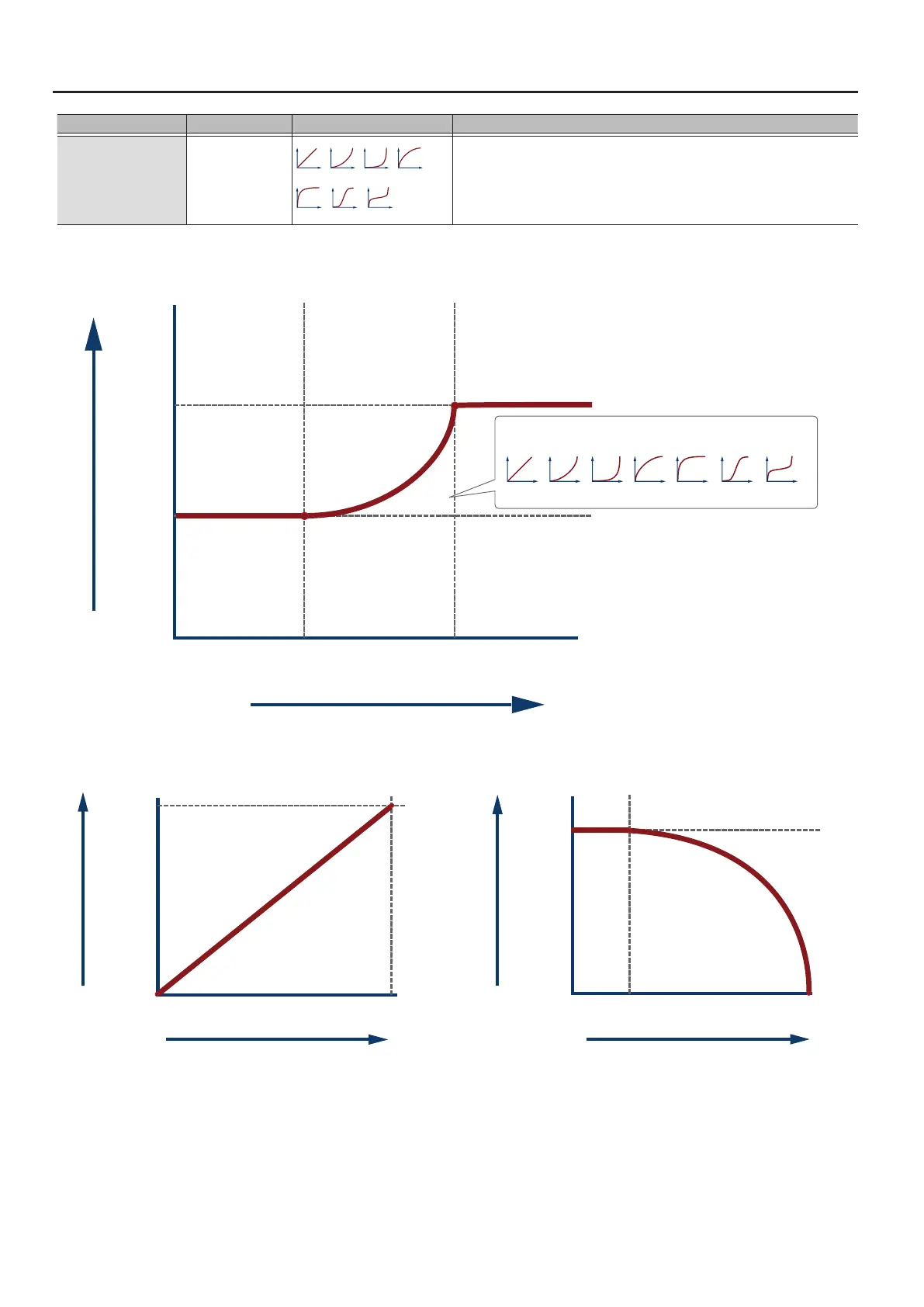

Function assignment (continuous operation)
127
127
Operation of
function
0
Performer’s
action
Output
Min
Value
Output
Max
Value
Input Max Value
Input Min Value
Curve
Curve Type
1:Linear 2:Exp L 3: Exp H 4: Log L 5: Log H 6: S-Shape 7: Reverse S
Example 1
127
127
Operation of
function
0
Performer’s
action
Output
Min
Value = 0
Output
Max
Value = 127
Input Max Value = 127Input Min Value = 0
Curve=1: Linear
127
127
Operation of
function
0
Performer’s
action
Output
Min
Value = 100
Output
Max
Value = 0
Input Max Value = 127
Input Min Value = 30
Curve=2: Exp L
30
100
Example 2
* If Output Min is larger than Output Max, the
Curve is vertically inverted.
