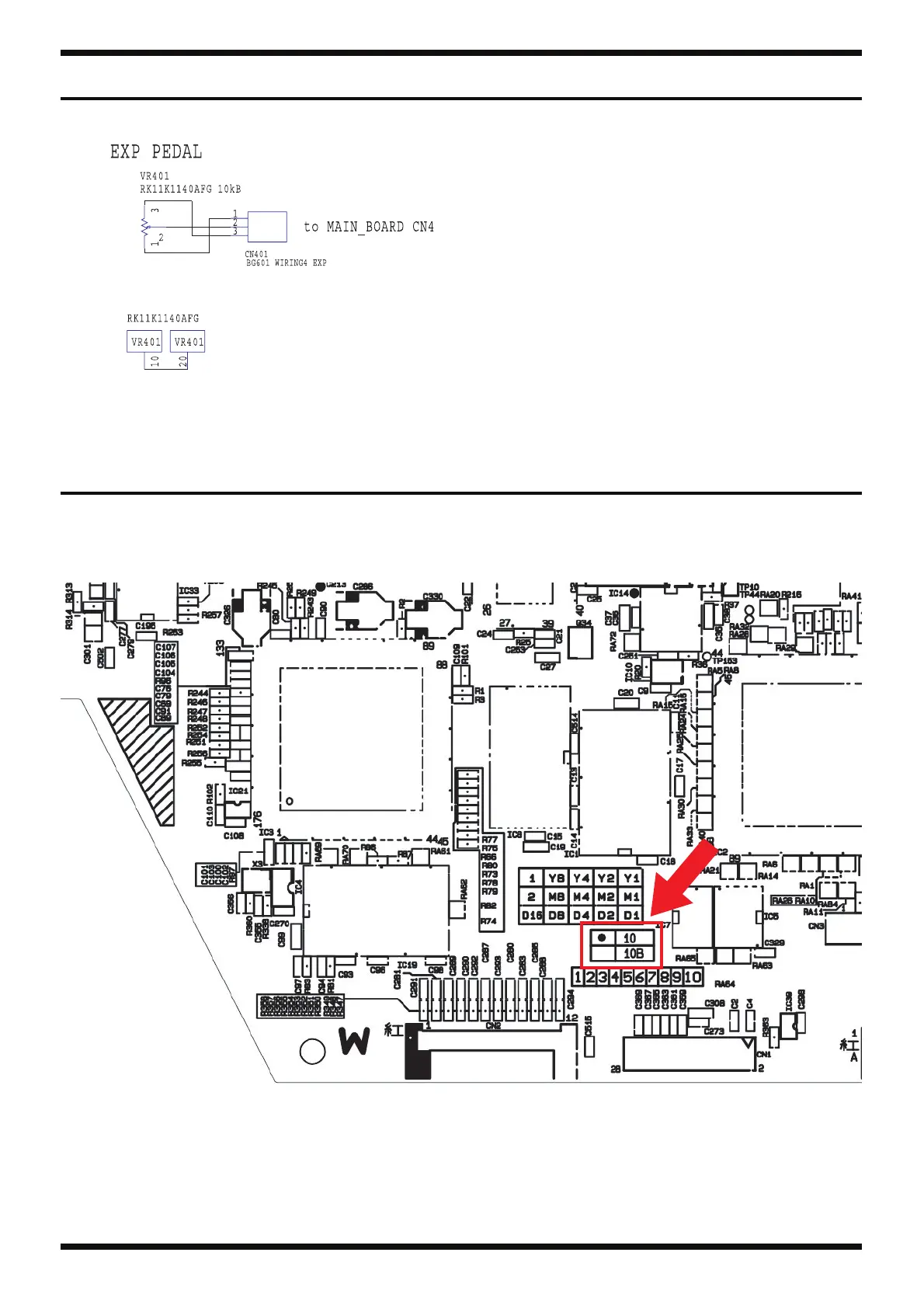

Circuit Diagram (EXP Board)
fig.d-exp.eps
Determination of Main Board Model
The Main Board Assy for both the GT-10 and the GT-10B uses the same bare
circuit board, but the mounted components are different. To distinguish
between the two, examine the model identification field on the circuit board.
fig.diff-main-GT10.eps
