8 About the Blades and Materials
* Make sure the pinch rollers are positioned above the grit rollers.
* Make sure the pinch rollers are positioned above the grit rollers.
The location of the grit rollers (where the material is held in place by the pinch rollers) differs according to the model.

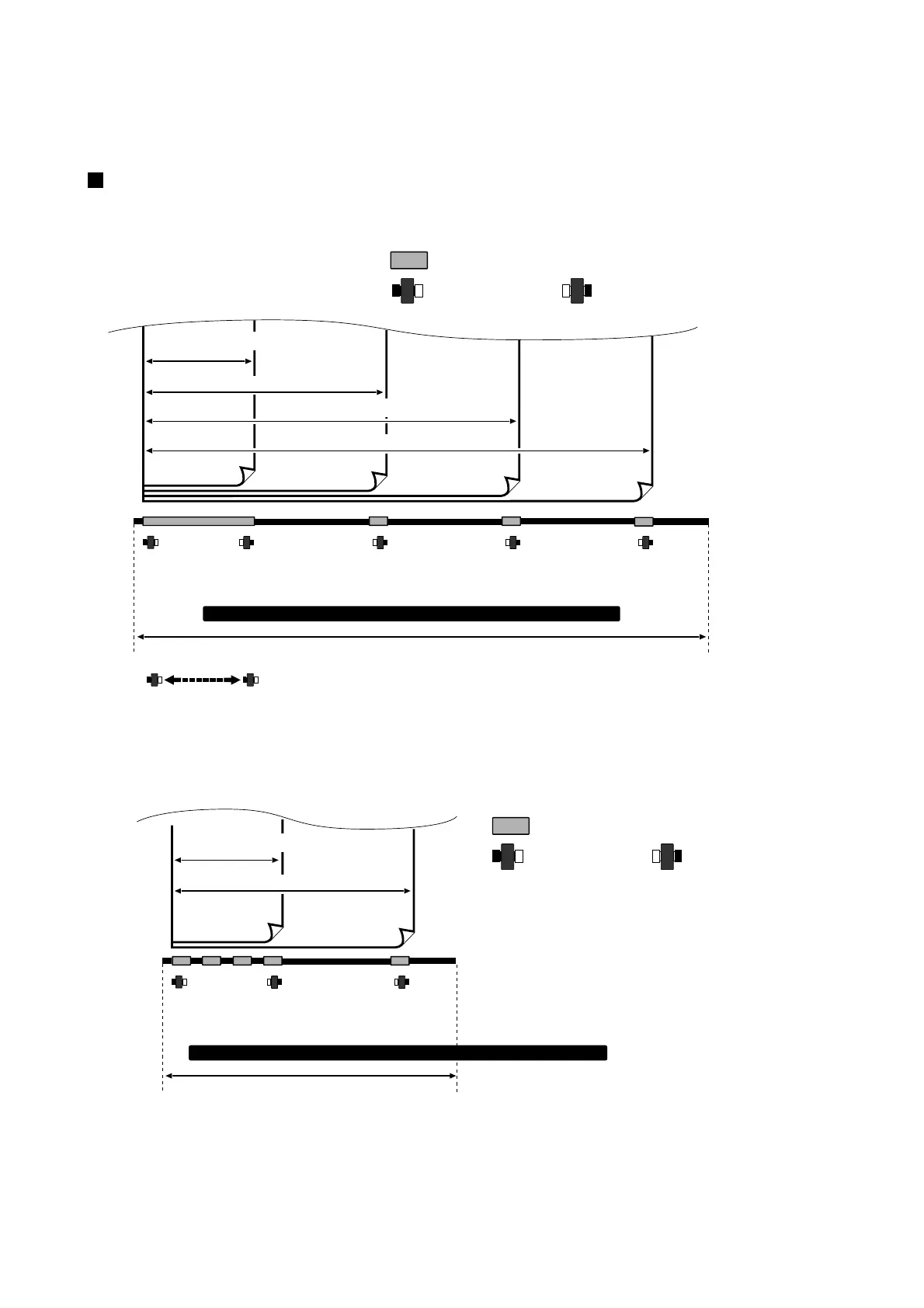

Referring to the figure below, place the material on the grit rollers and check where it can be held in place by the pinch rollers.
Loadable Material Width
8-2 About the Materials
: Grit roller
: Pinch roller (left) : Pinch roller (right)
Approx. 305 mm (12 in.)
Approx. 610 mm (24 in.)
Approx. 305 mm (12 in.)
The left-hand pinch roller can be moved within this range.
When loading material with a width other than one indicated above, move the left-hand pinch roller.
When loading material with a width other than one indicated above, move the
left and right pinch rollers to match the width of the material.
Approx.150 mm (5-7/8 in.)
Approx. 150 mm (5-7/8 in.)
: Grit roller
: Pinch roller (left) : Pinch roller (right)
Material with a
width of 150 mm
(5-7/8 in.)
Material with a
width of 305 mm
(12 in.)
Material with a width
of 457 mm (17-15/16
in.)
Material with a
width of 610 mm
(24 in.)
Material with a
width of 150 mm
(5-7/8 in.)
Material with a
width of 305 mm
(12 in.)
700 mm (27-1/2 in.)
395 mm (15-1/2 in.)
CX-24
CX-12
Approx. 457 mm (17-15/16 in.)

Roland Camm-1 CX-24/12 Specifications

General

Cutting Speed	500 mm/s
Software Resolution	0.025 mm
Interface	USB
Replot Memory	Yes
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	30W
