Roland Chorus Echo RE-501 User Manual

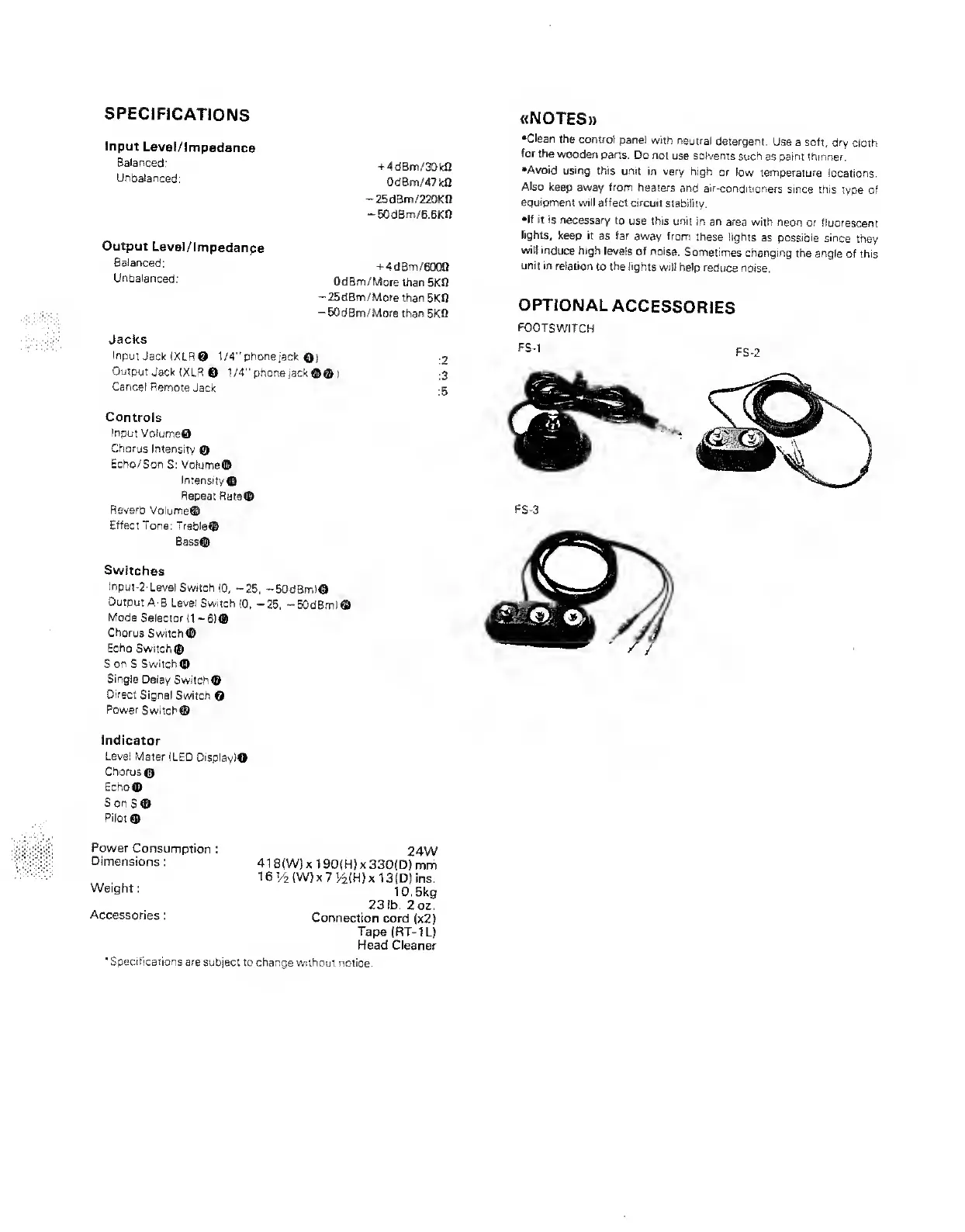

SPECIFICATIONS
Input Levef/lmpedance
Baiartced: + 4dBm/30kn
Unbalanced: 0dBm/47kQ
-25dBm/220Kn
— 50dBm/6.6KQ
Output Level/lmpedanpe
Balanced: +4dBm/600n
Unbalanced: OdBm/More than 5KQ
-25dBm/More than 5KQ
- 50dBm/More than 5KC
Jacks
Input Jack (XLR 0 1/4" phone jack Q)
Output Jack (XLR 0 1/4" phonejack ©©)
Cancel Remote Jack
Controls
Input Volume©
Chorus Intensity ©
Echo/Son S: Volume©
Intensity©
Repeat Rate©
Reverb Volume©
Effect Tone: Treble©
Bass©
Switches
Input-2-Level Switch (0, -25. -5CdBm)0
Output A-B Level Switch (0, -25. -50dBmi©
Mode Selector (1 -6)©
Chorus Switch©
Echo Switch®
S on S Switch©
Single Delay Switch©
Direct Signal Switch O
Power Switch©
«NOTES»
•Clean the control panel with neutral detergent. Use a soft, dry cloth
for the wooden parts. Do not use solvents such as paint thinner.
•Avoid using this unit in very high or low temperature locations.
Also keep away from heaters and air-conditioners since this type of
equipment will affect circuit stability.
•If it is necessary to use this unit in an area with neon or fluorescent
lights, keep it as far away from these lights as possible since they
will induce high levels of noise. Sometimes changing the angle of this
unit in relation to the lights will help reduce noise.
OPTIONAL ACCESSORIES
FOOTSWITCH
Indicator
Level Mater (LED Display)©
Chorus ©
Echo©
Son S©
Pilot ®
Power Consumption : 24W
Dimensions : 418(W) x 190(H) x 330(D) mm
16 7 /2 (W) x 7 V£(H) x 1 3(D) ins.
Weight: 10.5kg
. 231b. 2oz.
Accessories : Connection cord (x2)
Tape (RT-1L)
Head Cleaner
' Specifications are subject to change without notice.

Roland Chorus Echo RE-501 Specifications

General

Type	Chorus Echo
Model	RE-501
Effects	Chorus, Echo
Maximum Delay	3 seconds
Controls	Intensity, Echo Volume, Tone
Inputs	1 x 1/4\"
Power Supply	100V, 117V, 220V, 240V
