Press the [8] button to proceed to the next test item.
12. D-Beam Adjustment test
This adjusts the sensitivity of the [D BEAM] controller.
This adjustment sets the optimal sensitivity for the controller by making
adjustments for two distances from the [D BEAM] controller; at 5 cm and at 45
cm.
Before you begin this test: The location of the Fantom must satisfy the
following conditions.
Do not place objects nearby the Fantom. (It must be at least 30 cm from
surrounding objects.)
Place the Fantom at a distance from large flat surfaces such as ceiling or walls.
(It must be at least 100 cm away from such surfaces.)
Do not place the Fantom where strong light, such as direct sunlight or electric
light, can fall on it.

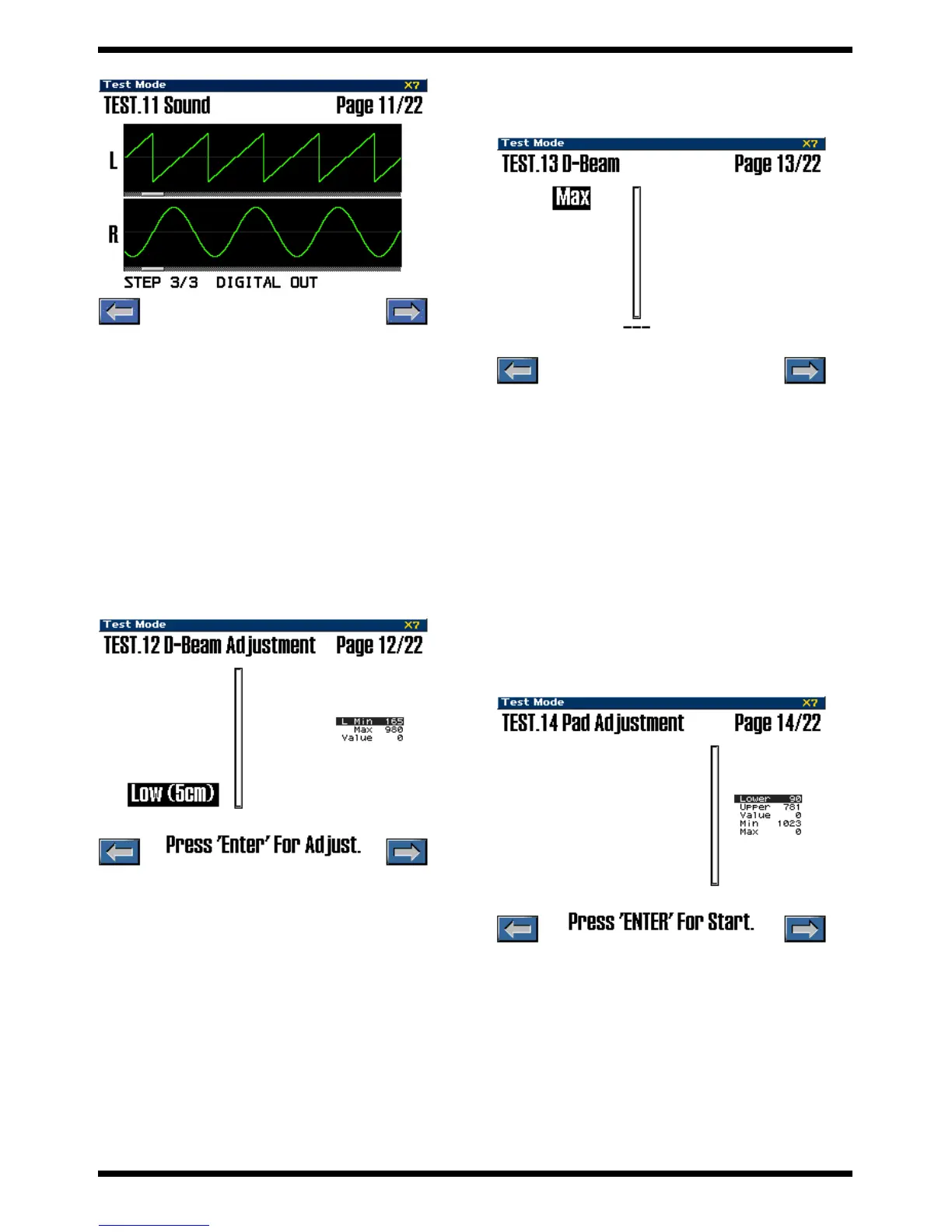

When you enter the D-Beam Adjustment test, the LCD display will show as
follows.
fig.test618_70
First make the “5 cm” setting for the [D BEAM] controller.
The LCD display will indicate “Low (5cm).”
Place your hand in parallel with the panel surface at a vertical distance of 5 cm
from the [D BEAM] controller, and press the [ENTER] button.
Do not move your hand while the lower part of the LCD display shows “Now
Adjusting...”
When the setting has been completed, you will automatically proceed to the
next setting.
Make the “45 cm” setting for the [D BEAM] controller.
The LCD display will indicate “High (45cm).”
Place your hand in parallel with the panel surface at a vertical distance of 45
cm from the [D BEAM] controller, and press the [ENTER] button.
Do not move your hand while the lower part of the LCD display shows “Now
Adjusting...”
When the setting has been completed, you will automatically proceed to the
next test item.
13. D-Beam test
This tests the operation of the [D BEAM] controller.
When you begin the D-Beam test, the LCD display will show as follows.
fig.test623_70
First you will test the [D BEAM] controller.
The LCD display will show “Max.”
Place your hand above the [D BEAM] controller, and move that hand
downward.
Verify that the LCD display shows the maximum value (L 127) when your
hand is approximately 5 cm from the surface of the panel.
If the test result is OK, the LCD display will show “Min.”
Place your hand above the [D BEAM] controller, and move that hand upward.
Verify that the LCD display shows the minimum value (L 0) when your hand
is approximately 45 cm from the surface of the panel.
If the test result is OK, you will automatically proceed to the next test item.
14. Pad Adjustment
This adjusts the [DYNAMIC PAD] sensitivity.
This adjustment sets the optimal [DYNAMIC PAD] sensitivity relative to a
force of 3 (kgf) applied to the [DYNAMIC PAD].
When you enter the Pad Adjustment test, the LCD display will show as
follows.
fig.test766_70
When you press the [ENTER] button, every [DYNAMIC PAD] will blink, and
the LCD display will show as follows.
