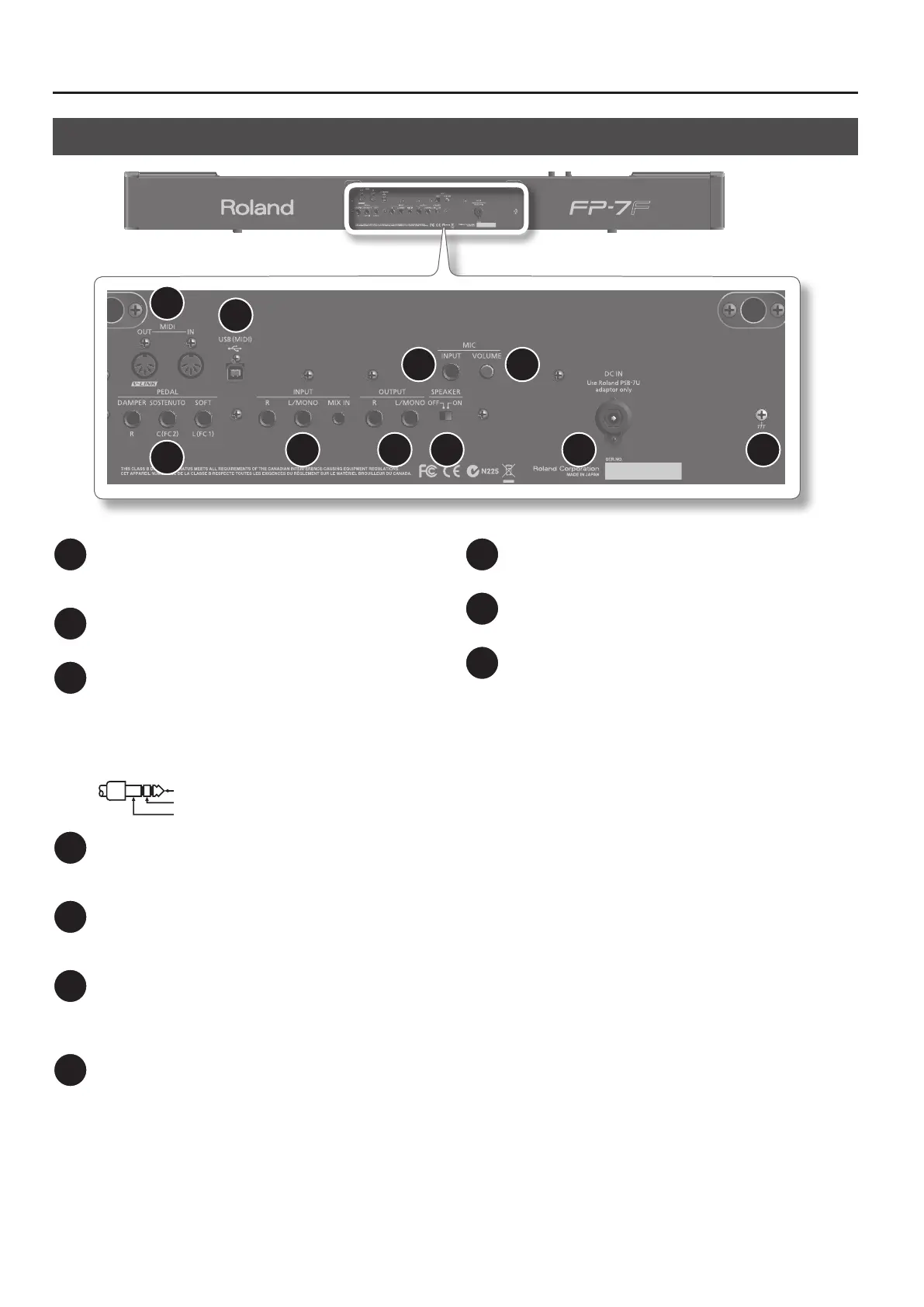

Panel Descriptions
Rear Panel
1
MIDI connectors
Connect an external MIDI device here to transfer performance data
(p. 83).
2
USB (MIDI) connector
Connect your computer for transferring performance data (p. 85).
3
MIC INPUT jack
Connect your microphone here (p. 76).
This instrument is equipped with TRS type jacks. Wiring diagrams
for these jacks are shown below. Make connections after rst
checking the wiring diagrams of other equipment you intend to
connect.
TIP
RING
SLEEVE
4
MIC [VOLUME] knob
Adjusts the volume of the microphone connected to the MIC INPUT
jack (p. 76).
5
PEDAL jacks
Connect the included pedal (DP series) or a separately available
pedal (RPU-3) here (p. 17).
6
INPUT jacks
Connect an audio device or another electronic music instrument
here, so that its sound can be heard through the FP-7F’s speakers
(p. 82).
7
OUTPUT jacks
Connect these to your external speaker system.
These allow the FP-7F’s sound to be heard from the connected
speakers (p. 82).
8
[SPEAKER] switch
This switch turns the internal speaker on/o (p. 82).
9
DC IN jack
Connect the included AC adaptor here (p. 14).
10
Grounding terminal
Depending on the circumstances of a particular setup, you may
experience a discomforting sensation, or perceive that the surface
feels gritty to the touch when you touch this device, microphones
connected to it, or the metal portions of other objects. This is due
to an innitesimal electrical charge, which is absolutely harmless.
However, if you are concerned about this, connect the ground
terminal (see gure) with an external ground. When the unit is
grounded, a slight hum may occur, depending on the particulars
of your installation. If you are unsure of the connection method,
contact the nearest Roland Service Center, or an authorized Roland
distributor, as listed on the “Information” page.
Unsuitable places for connection
• Water pipes (may result in shock or electrocution)
• Gas pipes (may result in re or explosion)
• Telephone-line ground or lightning rod (may be dangerous in
the event of lightning)
1
2
3
5
6 87
4
9 10
