Roland GX-24 Manual

1-4 CHASSIS

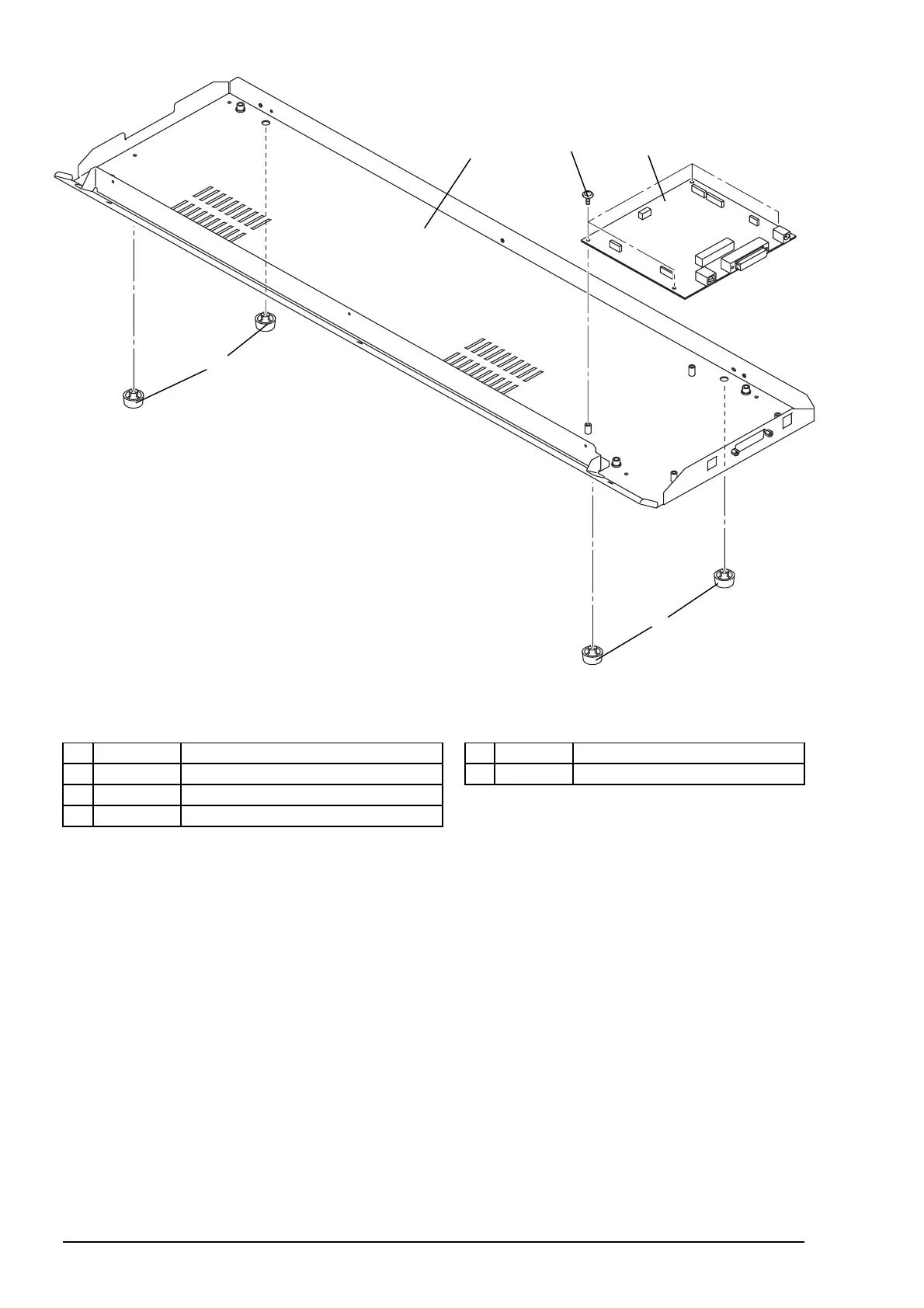

PARTS LIST -Main Parts- PARTS LIST -Supplemental Parts-
Parts No. Parts Name Parts No. Parts Name
1
7877009020 ASSY,MAIN BOARD GX-24
S1 31289102AS CUPSCREW SET,M3*6 NI 50 PCS.
2
22525113 BUSH,FOOT FF-2 TW
3 22815158 CHASSIS,GX-24
1-6
2
1
3
2
S1

Roland GX-24 Specifications

General

Cutting Speed	Up to 20 inches/sec (500 mm/sec)
Distance Accuracy	±0.004 inches (±0.1 mm) or less
Repeatability	±0.1 mm (0.0004 in.) or less
Interface	USB
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	5 to 40°C (41 to 104°F)
Operating Humidity	35 to 80% RH (non-condensing)
Software Resolution	0.025 mm/step (0.001 in./step)
