Roland GX-24 Manual

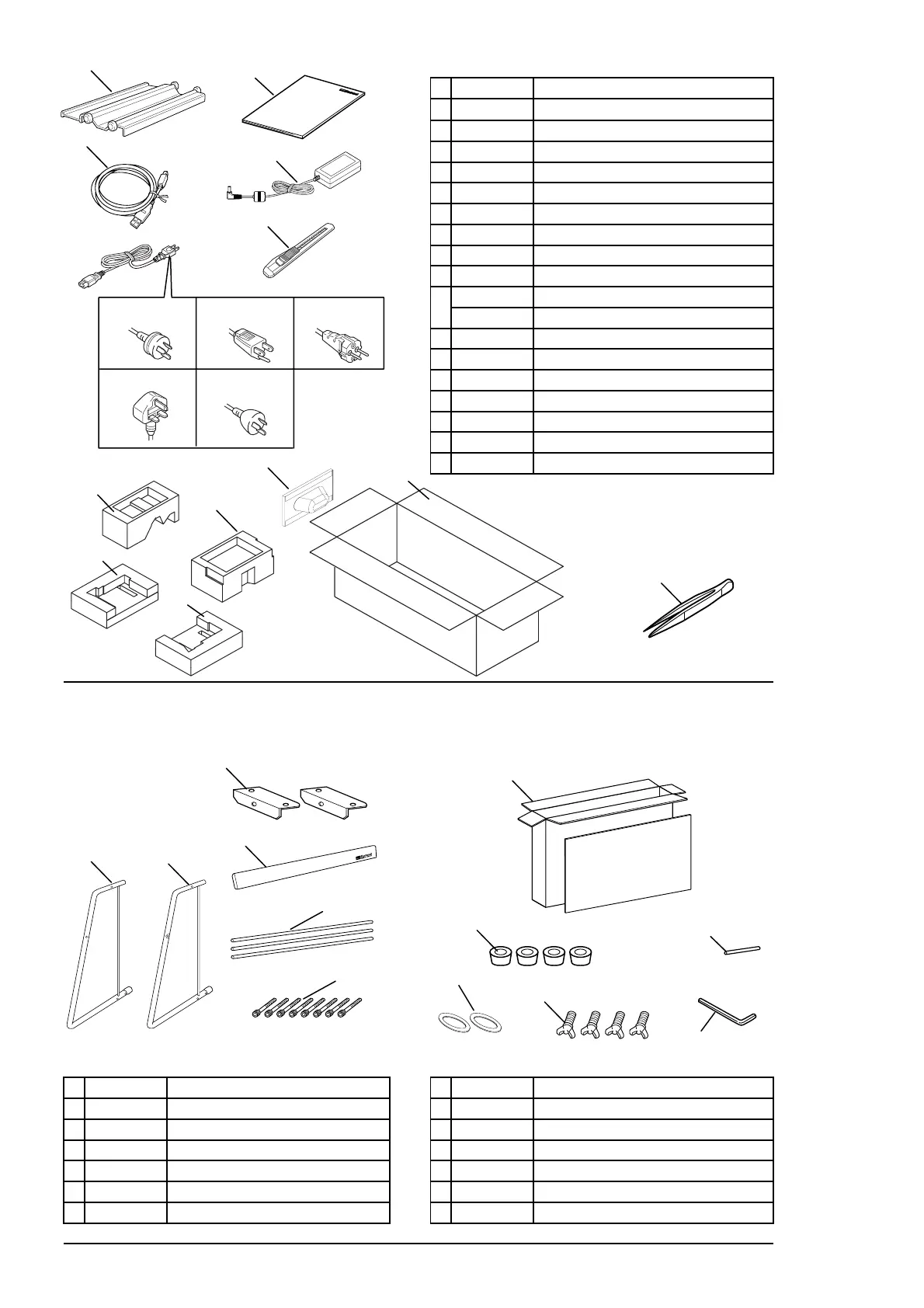

1-5 ACCESSORIES
PARTS LIST -Main Parts-
Parts No. Parts Name
1
7877103001 ASSY,GX-V-KIT 230VC-KIT
2
22355647 BASE, SHEET CM-24
3
23445109 CABLE,USB 1.8M TW
4
23495119 CABLE-AC,2P 117V 2.5M TW
5
23495120 CABLE-AC,2P 230V 2.5M TW
6
23495122 CABLE-AC,2P 240VE 2.5M TW
7
23495123 CABLE-AC,2P 240VA 2.5M TW
8
22605469 CARTON,GX-24
9
22315103 HANDLE,CARTON GX-24
26015542 MANUAL,USE EN GX-24
26015541 MANUAL,USE JP GX-24
11
21545235 PAD,L-LEFT GX-24
12
21545233 PAD,L-RIGHT GX-24
13
21545234 PAD,U-LEFT GX-24
14 21545236 PAD,U-RIGHT GX-24
15 22425117 POWER UNIT,AC-ADP.DCP-911
16
21935158 TOOL,CUTTER SY11030 TW
17
12569656 TWEEZERS PTS-01
1-6 STAND PNS-24
PARTS LIST -Main Parts- PARTS LIST -Supplemental Parts-
Parts No. Parts Name Parts No. Parts Name
1
21985116 BRACKET,PNS-24 S1 - SCREW HEXAGONAL CAP UC 10X45
2
22605279 CARTON,PNS-24 S2 - WASHER FLAT UC 10X21X2
3
22155121 PIPE,1 PNS-24 S3 - CUSHION SK1912 RUBBER
4
22155122 PIPE,2 PNS-24 S4 - BOLT PICK UC 5X20
5
22035126 STAND,L PNS-24 S5 - TOOL HEXAGONAL NO.8
6
22035127 STAND,R PNS-24 S6 - SHAFT STOPPER Ni 4.5X95
1-7
10
5
6
1
3
4
S1
S2
2
S3
S4
S6
S5
2
9
3
10
11
16
8
14
12
15
13
17
230V
230VC
240VE
117V
240VA
14
5
6
7

Roland GX-24 Specifications

General

Cutting Speed	Up to 20 inches/sec (500 mm/sec)
Distance Accuracy	±0.004 inches (±0.1 mm) or less
Repeatability	±0.1 mm (0.0004 in.) or less
Interface	USB
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	5 to 40°C (41 to 104°F)
Operating Humidity	35 to 80% RH (non-condensing)
Software Resolution	0.025 mm/step (0.001 in./step)
